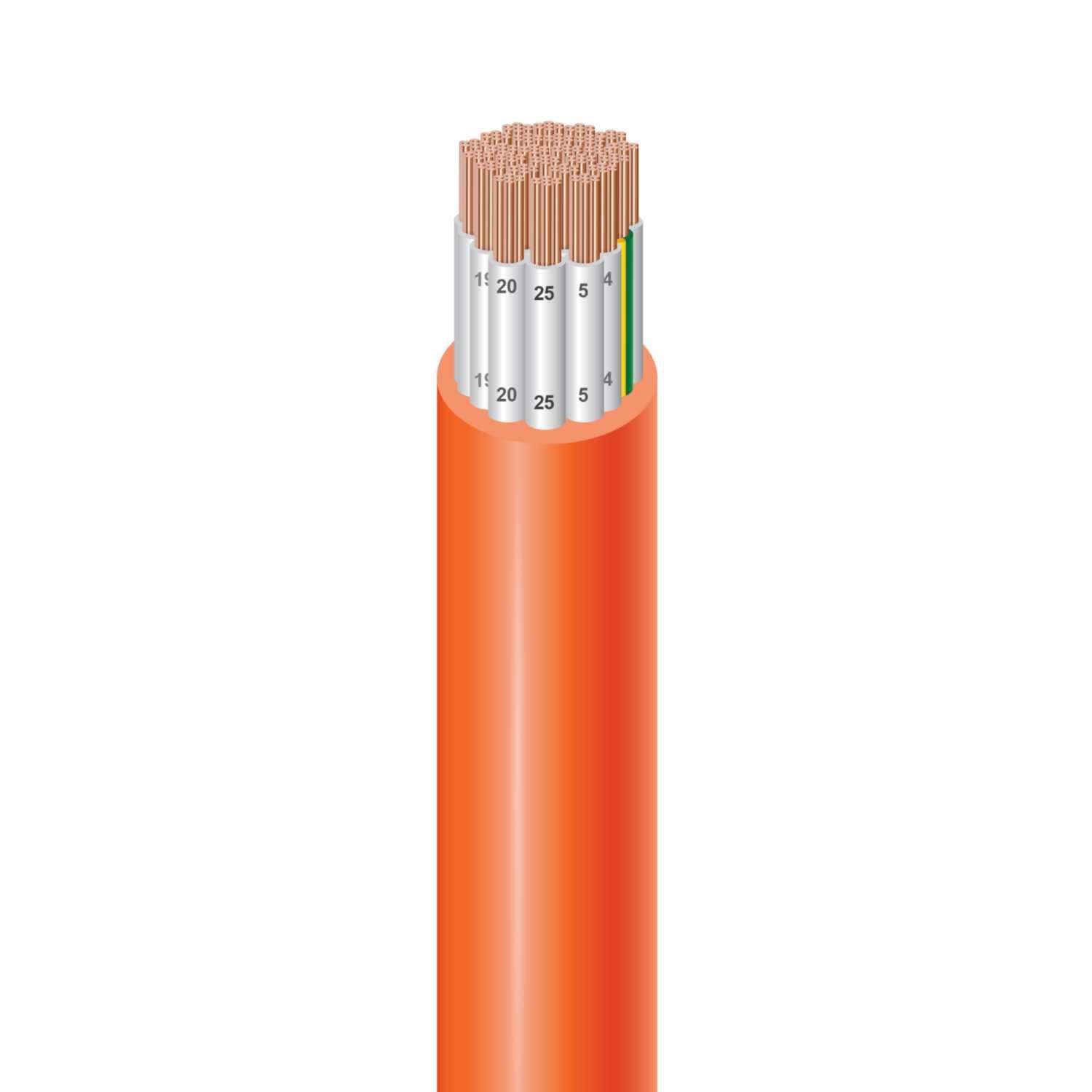

Electra 1.5mm² 25 Core and Earth Control Cable 0.6/1kV Orange
Part Number: SRC25015E
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- Transmission cable that may require mechanical motion
- Control cables are the backbone of automated systems
- Used to relay the required signal/action to a particular control point
- Plain annealed copper conductors
- PVC V90 insulation
- 25 core and earth
- Greenstar approved
- Colour
- Orange
- Core Colours
- White Cores Numbered Black
- Cross Sectional Area
- 1.5mm²
- Dimensions
- (L)100 m
- External Diameter
- 24.5mm
- Finish
- Annealed
- Guarantee
- 1 Year
- Insulation Material
- PVC V90
- Length
- 100m
- Material
- Copper
- Online Search Priority
- 1
- Packaging Types
- Length
- Product Range
- SRC
- Sheath
- PVC V90
- Sheath Thickness
- 1.8mm
- Standards
- AS/NZS 5000.1 AS/NZS 1125
- Type
- Control Cable
- Unspsc V18
- 26121603
- Unspsc V24
- 26121603
- Voltage Rating
- 600V 1000V
- Weight
- 0.735kg
