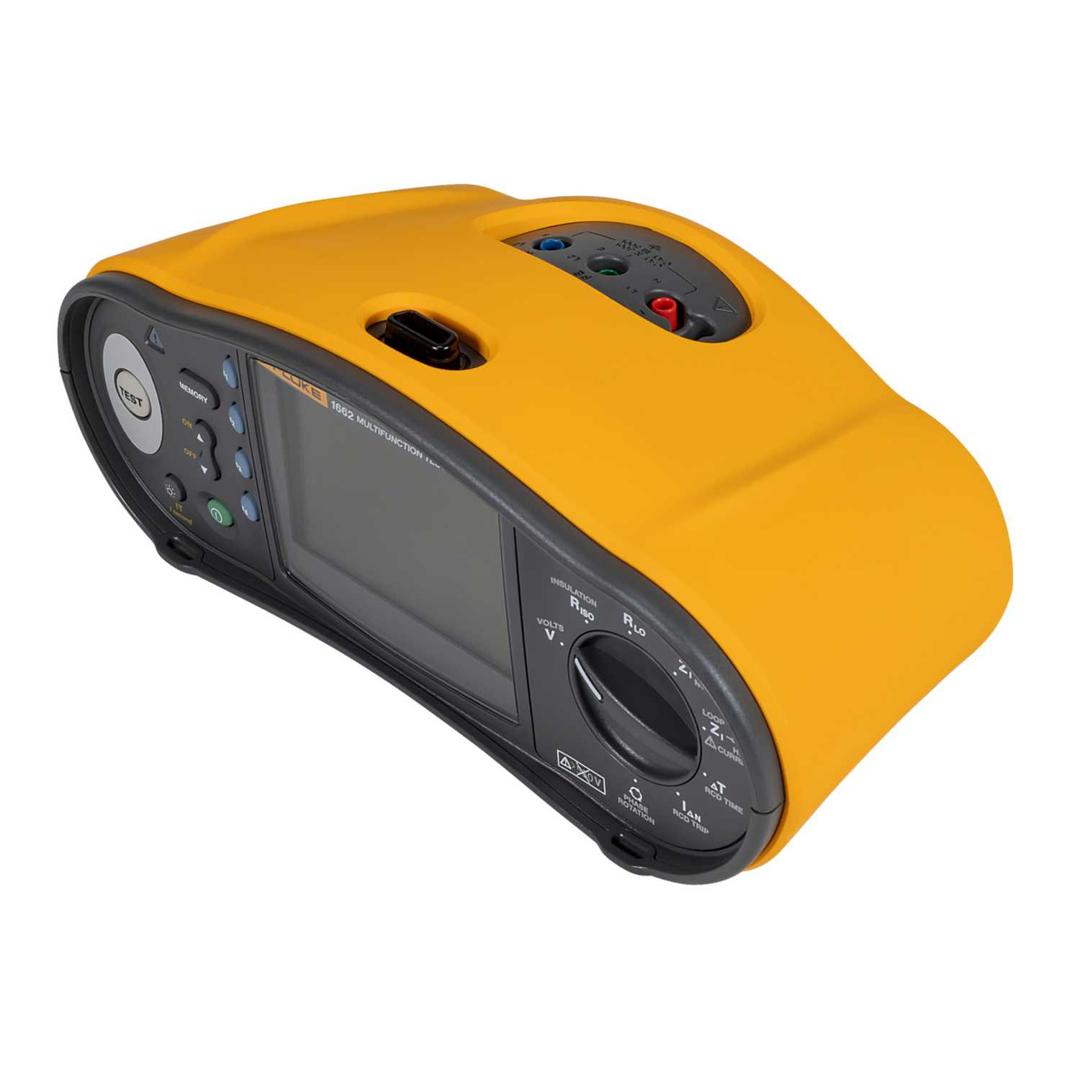

Fluke 500V AC Multifunction Tester
Part Number: FLU1662
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- Tests voltage and frequency
- Checks wiring polarity to detect broken N wires
- Measures insulation resistance and loop and line resistance
- Measures motor windings with continuity test
- Calculates prospective earth fault current (PEFC/IK) and prospective short-circuit current (PSC/IK)
- 3 Phase Rotation
- Yes
- Ac Voltage Measurement
- 500V AC
- Batteries Included
- Yes
- Battery Level Indicator
- Yes
- Battery Size
- AA
- Battery Type
- Alkaline
- Colour
- Yellow/Black
- Continuity Check
- Yes
- Continuity Range
- 0.01 Ω - 2000 Ω
- Dc Voltage Measurement
- 500V DC
- Dimensions
- (L)100 mm x (H)125 mm x (W)250 mm
- Display Type
- LCD
- Guarantee
- 3 Years
- Height
- 125mm
- Insulation Resistance Measuring Range
- 0.01 MΩ - 1000 MΩ
- Insulation Test Voltage
- 100V / 250V / 500V / 1000V
- Ip Rating
- IP40

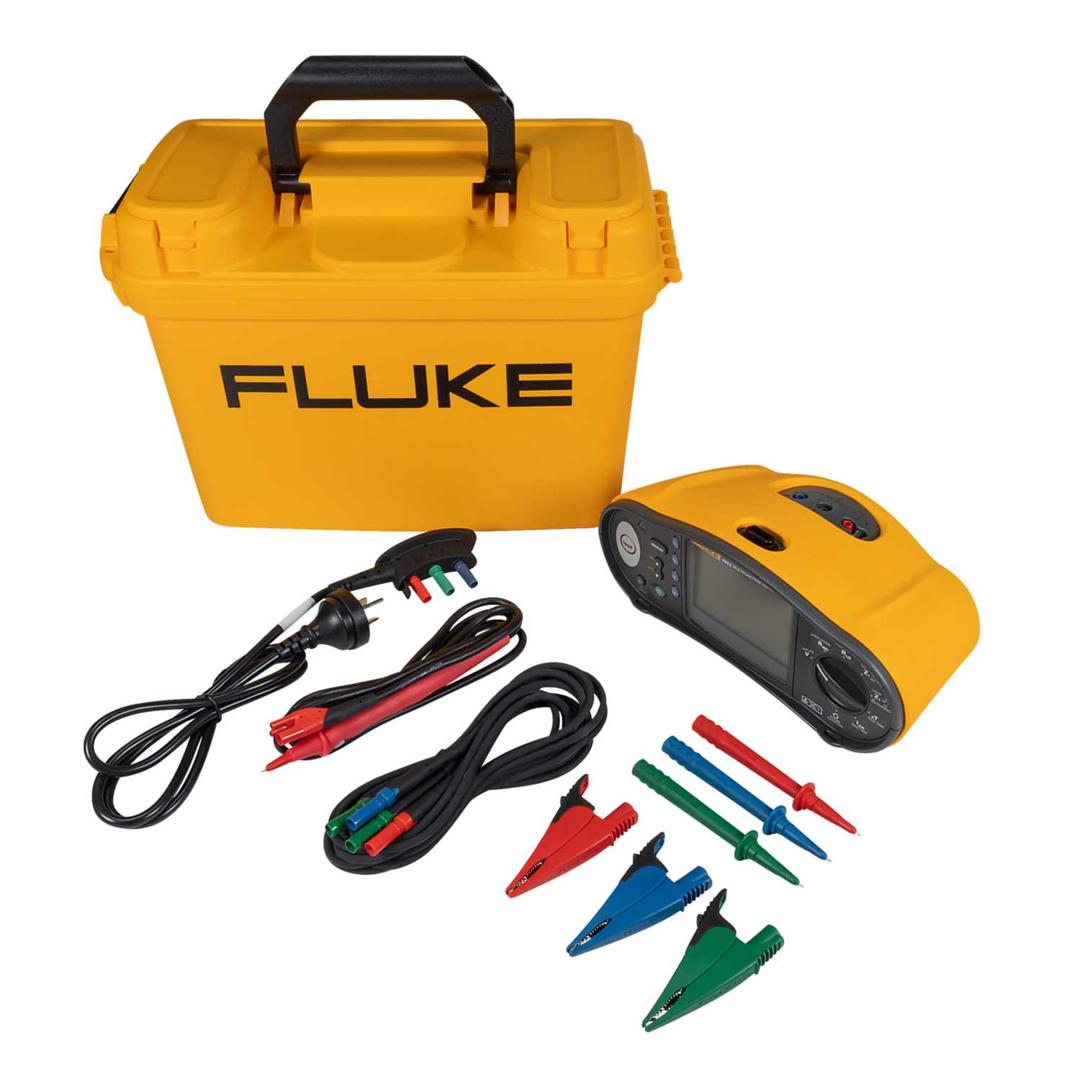

- Kit Contents
- Zero Adaptor, Mains Plug Test Lead, 3 Wire Lead Set with Probes and Croc Clips, Switched Probe, 6 x AA LR6 Batteries and Hard Carry Case
- Length
- 100mm
- Loop Impedance Range
- 0.01 Ω - 2000 Ω
- Number Of Batteries
- 6
- Packaging Types
- Each
- Product Range
- 1660 Series
- Rcd Settings
- ½ / x1 / x5 @ 0° and 180° / Auto and Ramp Tests
- Rcd Test Range
- 10 mA / 30 mA / 100 mA / 300 mA / 500 mA / 1000 mA
- Safety Range
- CAT III 500V, CAT IV 300V
- Standards
- IEC/EN61010-1
- Supplied With
- 6x AA (IEC LR6) cell batteries C1600 hard carrying case Zero adapter Heavy duty mains cord STD standard test lead set Padded carrying and waist strap Quick reference guide TP165X remote control probe and lead
- Type
- Multifunction Tester
- Unspsc V18
- 41113681
- Unspsc V24
- 41113681
- Weight
- 3.44kg
- Width
- 250mm
