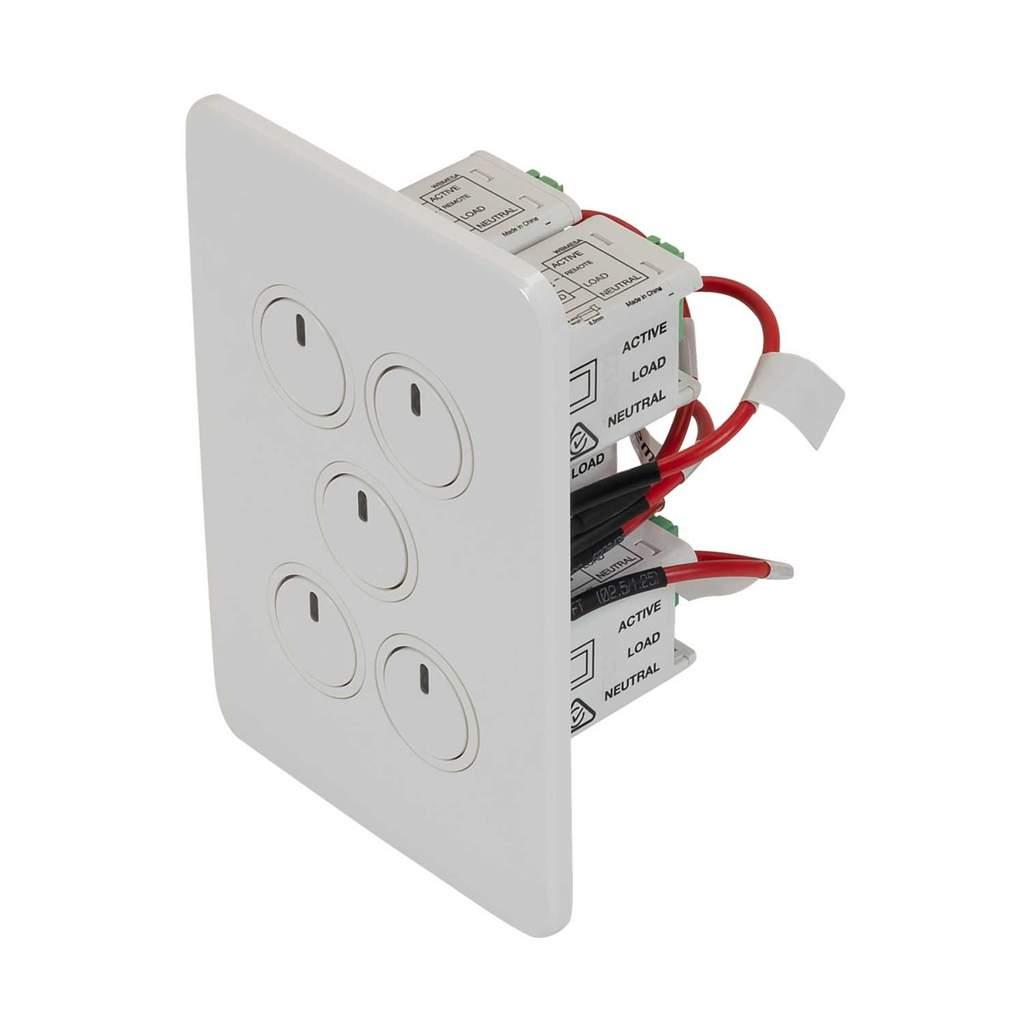

Hager 5 Gang Vertical Electronic Pushbutton Switch 5A Silhouette White
Part Number: WBSEV5
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- Slim profile plate with rounded corners
- High impact, high gloss UV stabilised polycarbonate construction
- Low profile WBME5A switches with LED indicator
- Dimmable conventional transformers, 500VA max
- Electronic transformers, 500W max
- Compact fluorescent lamps, 500VA max
- 230V incandescent lamps and halogen lamps, 1200W max
- Colour
- White
- Current Rating
- 5A
- Depth
- 4mm
- Dimensions
- (H)117 mm x (W)77 mm x (D)4 mm
- Finish
- Gloss Finish
- Fixing Centres
- 84mm
- Frequency
- 50 Hz
- Guarantee
- 2 Years
- Height
- 117mm
- Material
- Polycarbonate
- Mounting
- Flush
- Mounting Depth
- 23mm
- Number Of Gangs
- 5
- Number Of Poles
- 1 Pole
- Number Of Ways
- 1
- Packaging Types
- Each
- Product Range
- Silhouette
- Shape
- Rectangular
- Standards
- AS/NZS 3133
- Terminal Capacity Live Neutral
- 2 x 1.5mm²/1 x 2.5mm²
- Type
- Light Switch
- Unspsc V18
- 39122226
- Unspsc V24
- 39122226
- Voltage Rating
- 240V AC
- Weight
- 0.204kg
- Width
- 77mm
