Hager 4 Position Rotary Switch Mech 10A White
Part Number: WBM10R3
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.

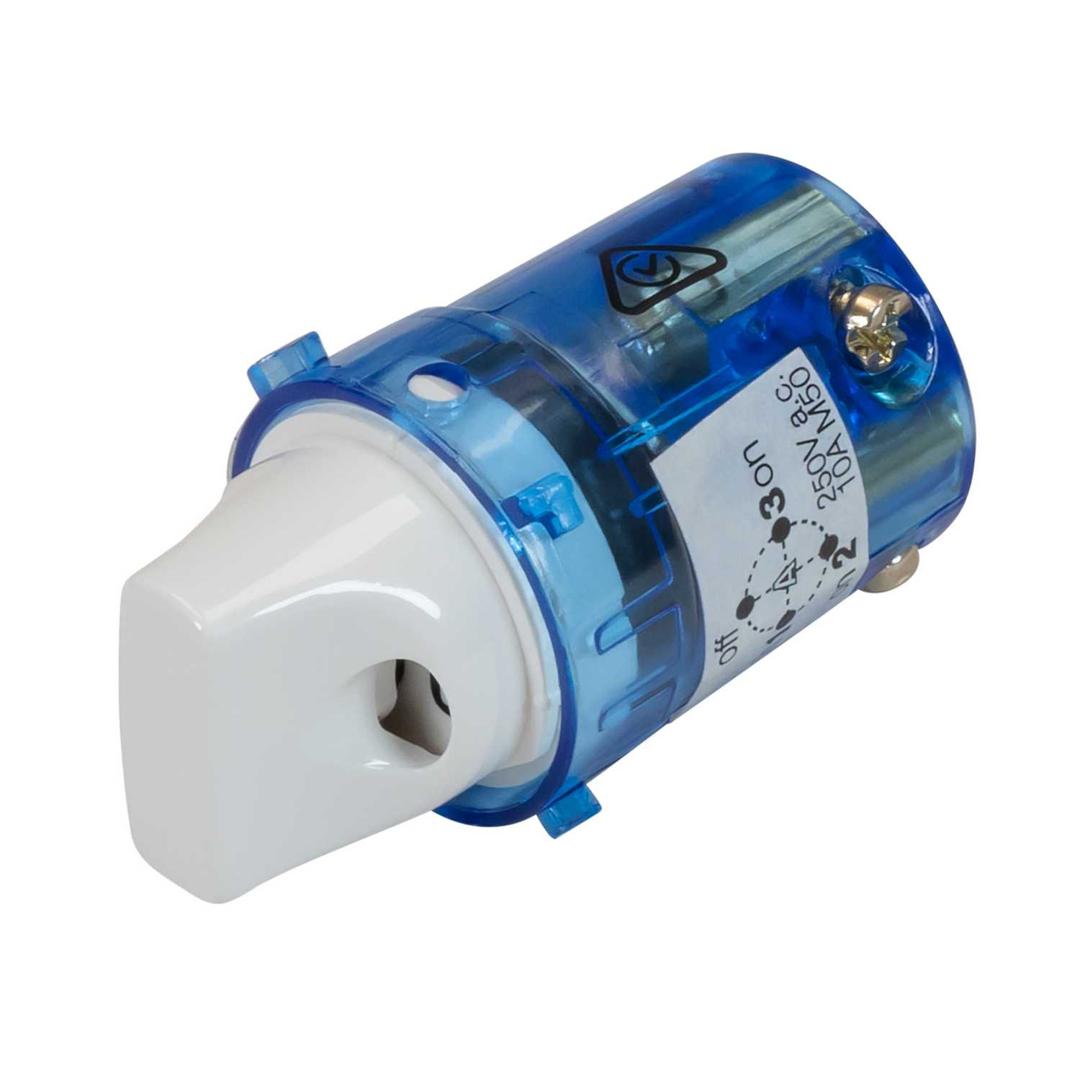

- Rotary selector with 3 on positions labelled 1 - 2 - 3 and a 0 off position
- Easy mechanism removal

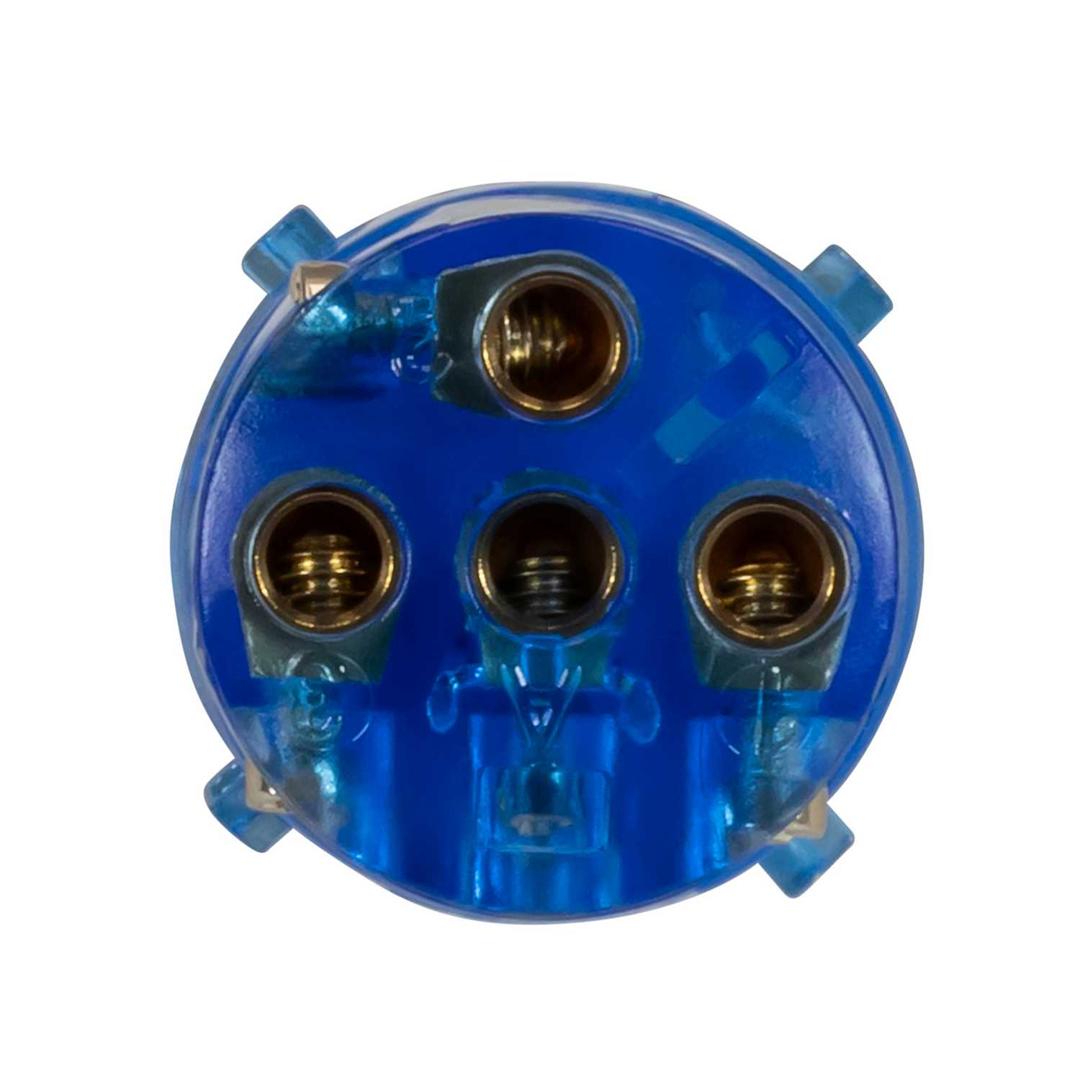

- All terminal screws are combination head Phillips No 1 and backed off
- Colour
- White
- Current Rating
- 10A
- Depth
- 45mm
- Diameter
- 24mm
- Dimensions
- (Dia)24 mm x (D)45 mm
- Finish
- Gloss Finish
- Frequency
- 50 Hz
- Guarantee
- 2 Years
- Material
- Plastic
- Mounting
- Clip-in
- Number Of Poles
- 1 Pole
- Number Of Ways
- 1
- Packaging Types
- Each
- Product Range
- RotoLoc
- Shape
- Round
- Standards
- AS/AZS 60669.1
- Suitable For
- RotoLoc Mechanisms suit all Hager Ranges
- Terminal Capacity Live Neutral
- 4 x 1.5mm²
- Type
- Rotary Switch
- Unspsc V18
- 39122226
- Unspsc V24
- 39122226
- Voltage Rating
- 250V AC
- Weight
- 0.021kg
