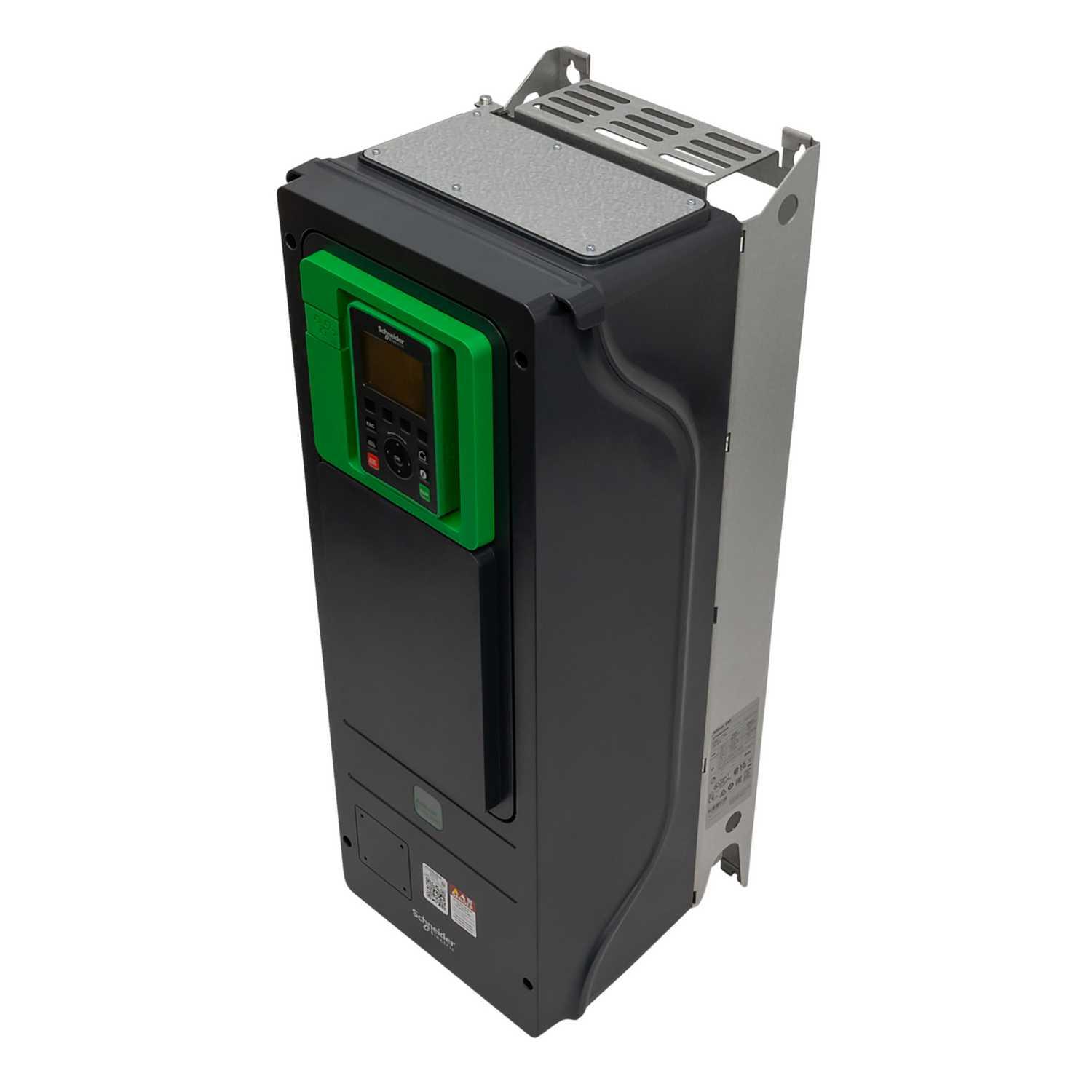

Schneider Altivar Process 5.5kW 380-480V AC 3 Phase Variable Speed Drive IP55
Part Number: ATV650U55N4
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- For use with 3-phase synchronous and asynchronous motors
- Focused on fluids management processing
- 16 preset speeds
- Provides up to 30% energy saving when on standby due to the innovative ‘‘Stop and Go’’ operation
- 3 built-in RJ45 communication ports, 1 ethernet port, 2 serial ports
- Embedded web server for remote monitoring and control access
- Integrated harmonic filters help in the protection of grids and save energy
- Class C3 EMC filter integrated
- IP55 built-in enclosure for simplified standalone installation
- Depth
- 272mm
- Dimensions
- (H)678 mm x (W)264 mm x (D)272 mm
- Frequency
- 50/60 Hz
- Guarantee
- 18 Months
- Height
- 678mm
- Ip Rating
- IP55
- Mounting
- Wall Mount
- Number Of Phases
- 3
- Packaging Types
- Each
- Power Rating
- 5.5kW
- Product Range
- Altivar Process ATV650
- Standards
- IEC 61800-5-1
- Type
- Variable Speed Drive
- Unspsc V18
- 39122002
- Unspsc V24
- 39122002
- Voltage Range
- 380 - 480V AC
- Weight
- 22.9kg
- Width
- 264mm
