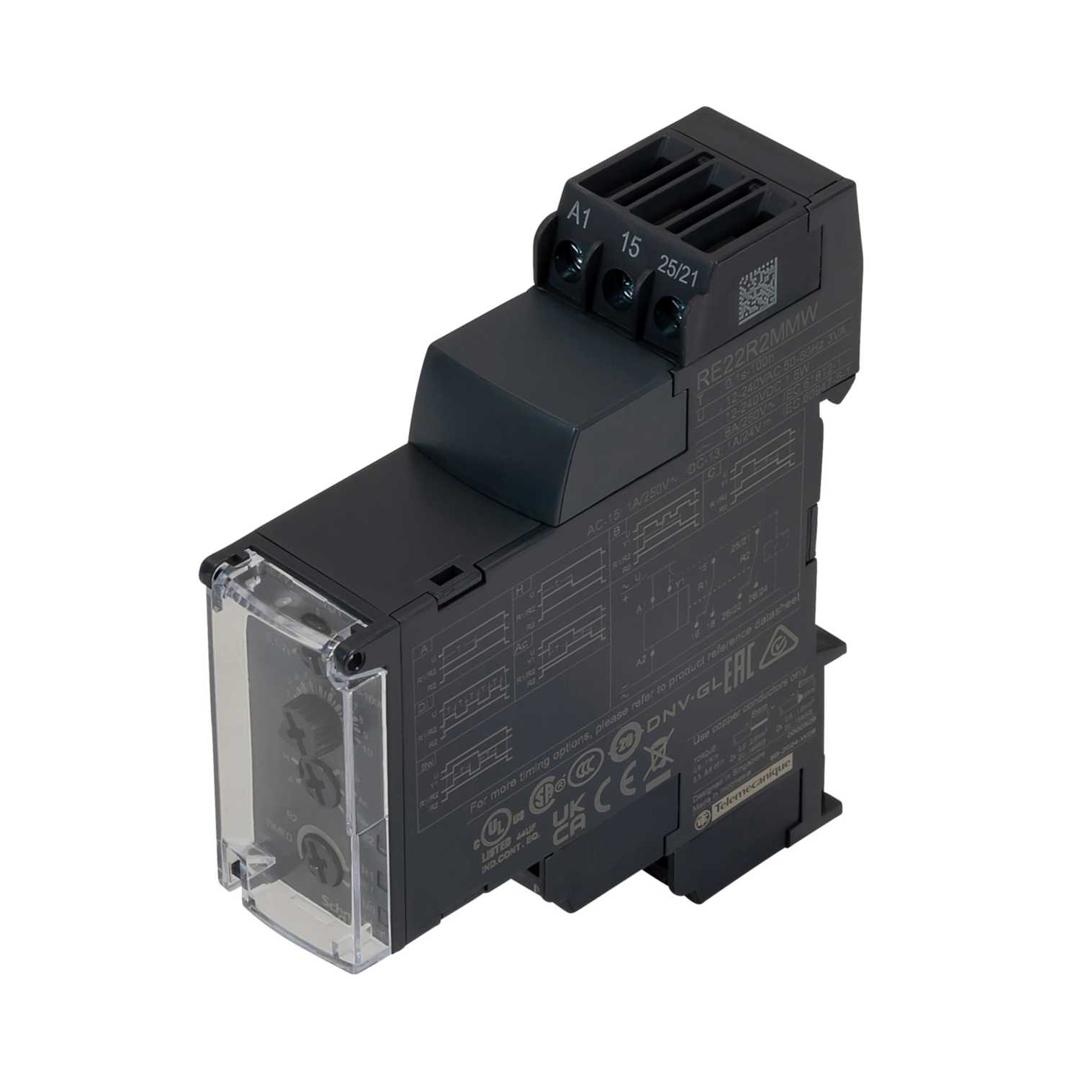

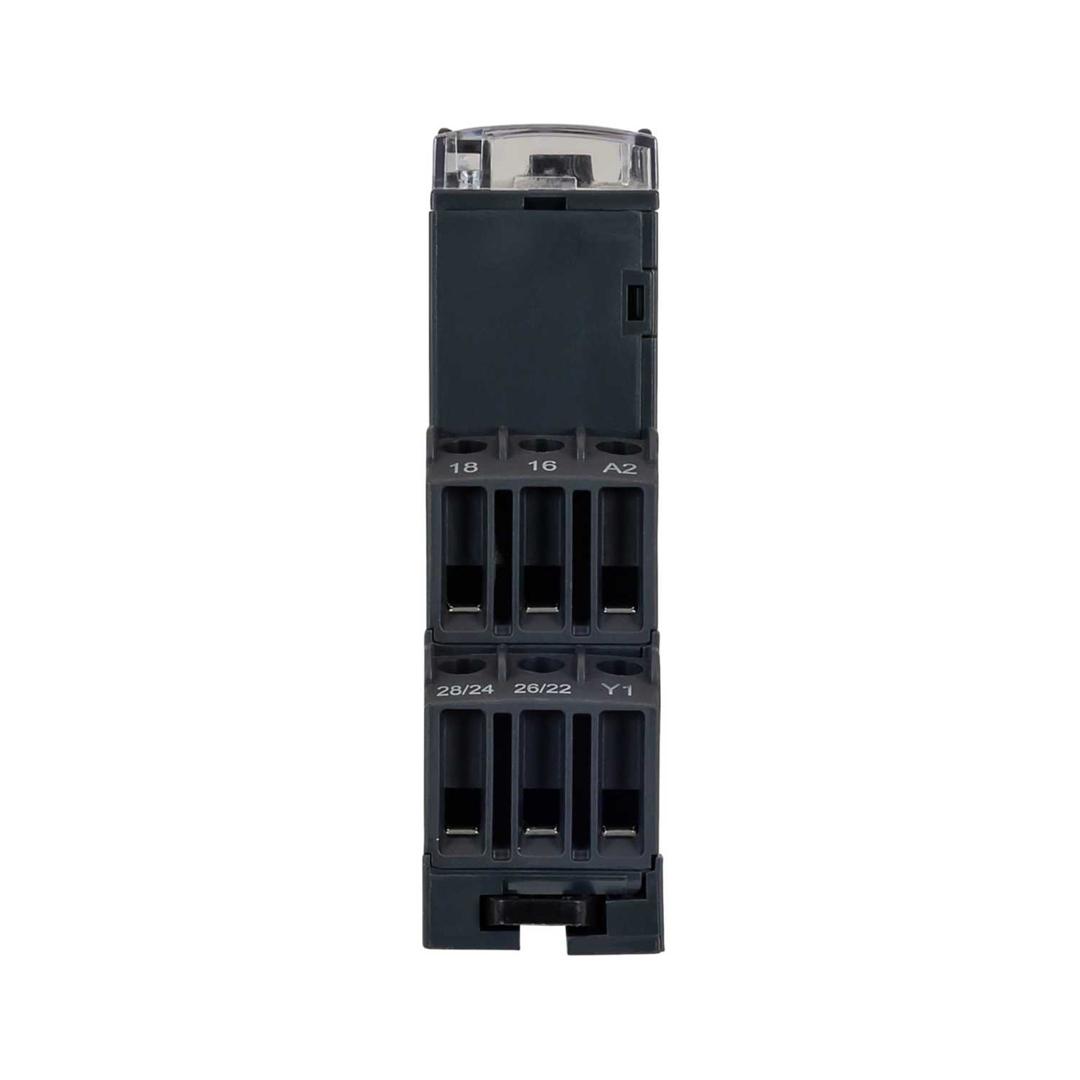

Schneider Harmony 8.0A 2CO Multifunction Modular Timer Relay 12-240V AC/DC
Part Number: RE22R2MMW
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- DIN mounted timer relay
- Multifunction timer covers power on-delay, on-delay and off-delay, interval, off-delay, symmetrical flashing
- Timing can be set between 0.1 seconds and 100 hours
- Transparent cover can be sealed to protect settings from being tampered with
- 8A output
- Flexible supply 12 - 240 VAC/DC voltage, allowing automation system to remain stable during temporary voltage drops
- Battery Back Up
- No
- Changeover
- Yes
- Colour
- Black
- Contact Configuration
- 2 CO
- Current Rating
- 8A
- Depth
- 79.5mm
- Dimensions
- (H)90 mm x (W)22.9 mm x (D)79.5 mm
- Frequency
- 50 Hz
- Guarantee
- 18 Months
- Height
- 90mm
- Material
- Plastic
- Maximum Operating Temperature
- 60°C
- Minimum Operating Temperature
- -20°C
- Mounting
- DIN Rail
- Operation Type
- Multifunction
- Packaging Types
- Each
- Product Range
- Harmony
- Standards
- IEC 61812-1 IEC 61000-6-2 IEC 61000-6-1 IEC 61000-6-4 IEC 61000-6-3
- Timer Range
- 0.1 sec - 100
- Type
- Multifunction Timer Relay
- Unspsc V18
- 39121523
- Unspsc V24
- 39121523
- Voltage Range
- 12 - 240V AC/DC
- Weight
- 0.108kg
- Width
- 22.9mm
