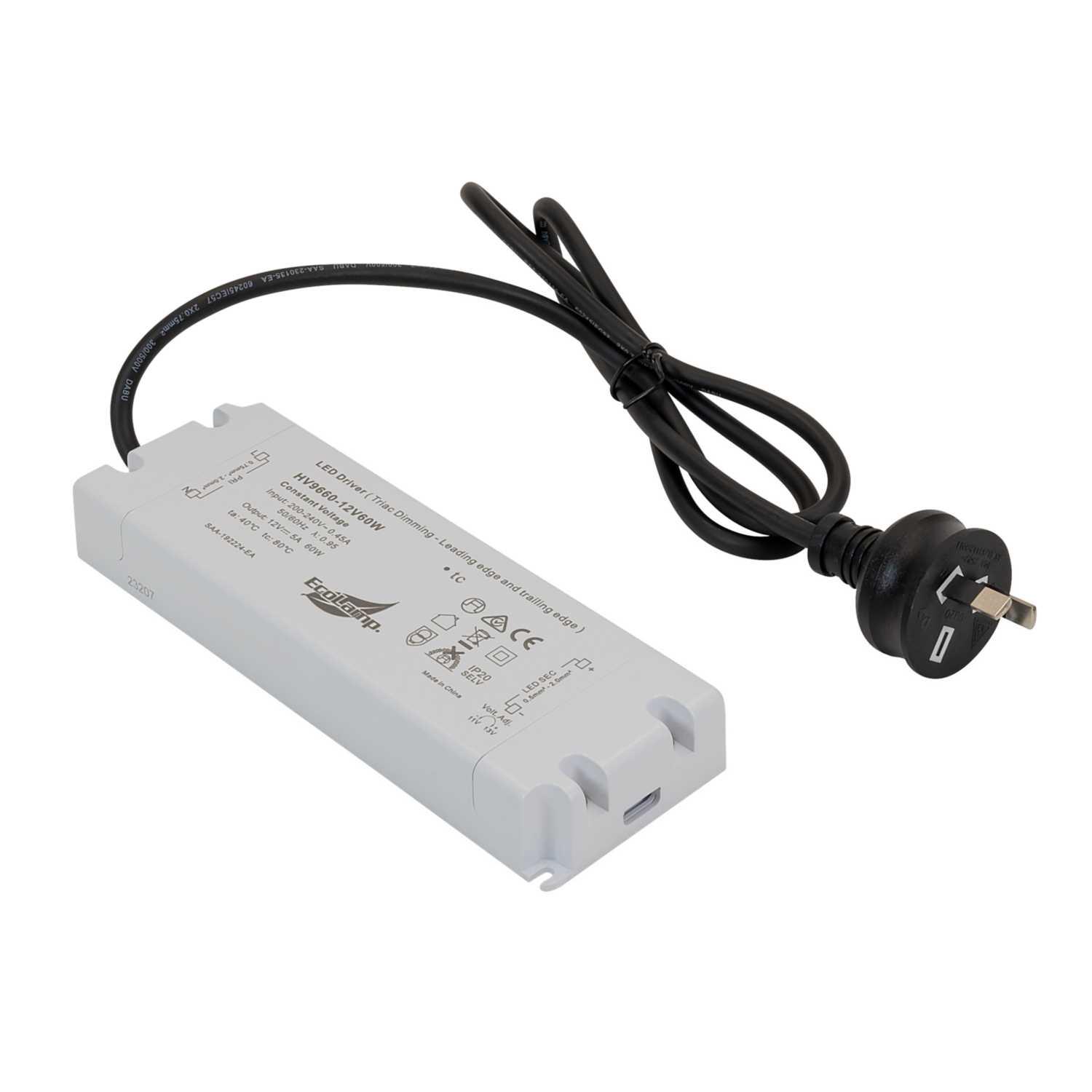

Havit 60W 12V DC Dimmable Constant Voltage LED Driver
Part Number: HV9660-12V60W
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- Triac dimmable LED driver
- Compatible with either trailing or leading edge dimmers
- Flex and plug supplied
- Input voltage: 240V AC
- Output voltage: 12V DC
- Output power: 60W
- Recommended maximum load: 48W
- Recommended minimum load: 6W
- Overload and short circuit protection
- Class Type
- Class 2
- Colour
- White
- Compliance
- AS/NZS CISPR15
- Depth
- 24mm
- Dimensions
- (L)178 mm x (W)61 mm x (D)24 mm
- Dimmable
- Yes
- Guarantee
- 3 Years
- Input Voltage
- 240V
- Ip Rating
- IP20
- Length
- 178mm
- Material
- Plastic
- Mounting
- Surface
- Output Voltage
- 12V
- Over Current Protection
- Yes
- Over Voltage Protection
- Yes
- Packaging Types
- Each
- Power Output
- 60W
- Product Range
- LED Drivers
- Shape
- Rectangular
- Suitable For
- LED
- Supplied With
- Flex and Plug
- Type
- LED Driver
- Unspsc V18
- 39112103
- Unspsc V24
- 39112103
- Weight
- 0.495kg
- Width
- 61mm
