Trader 6 Gang Vertical Switch 20A Snow Leopard Black Silver
Part Number: SNSWV6GBS
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.

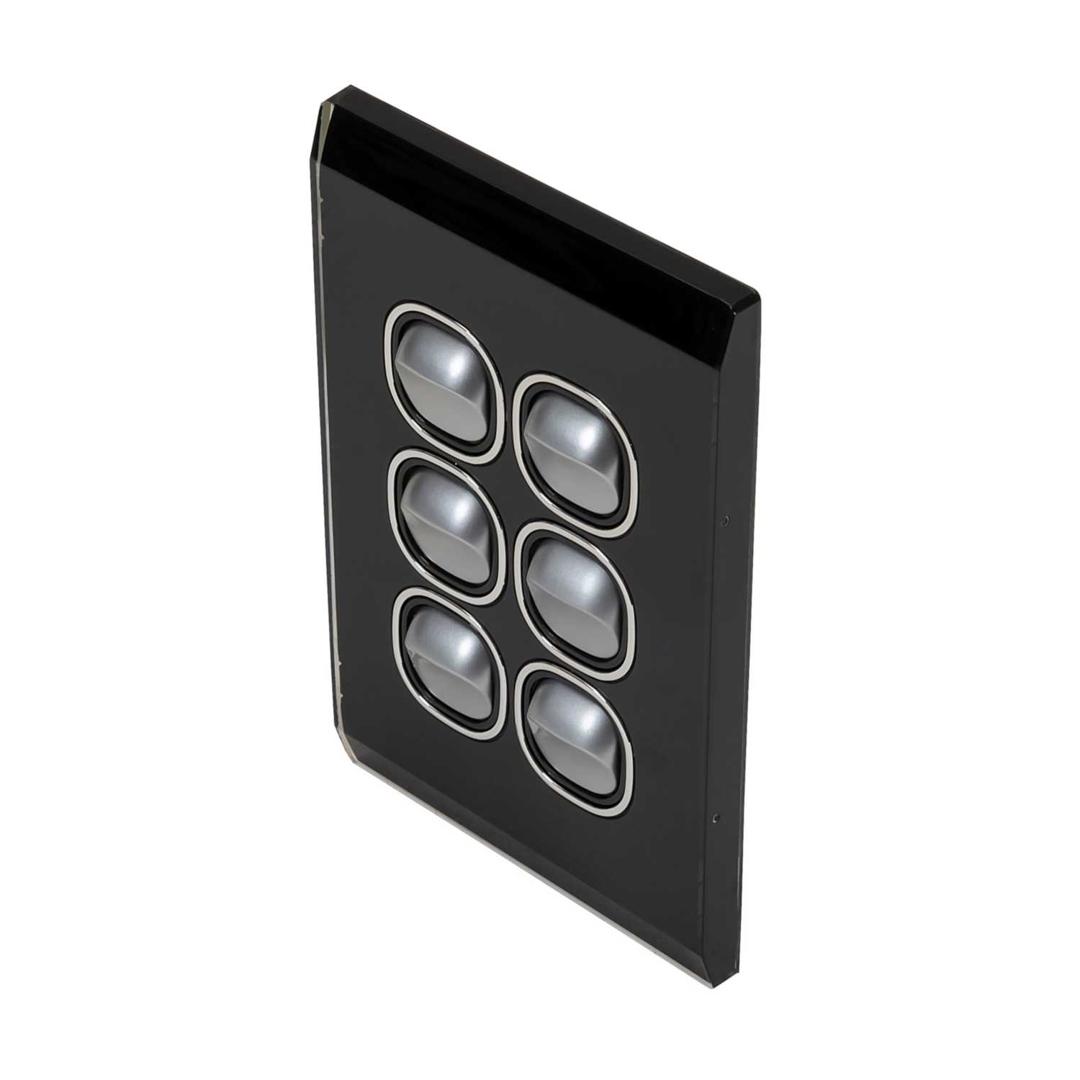

- Snow Leopard surround takes the glass look cover right to the wall
- Black face plate with chrome bezel and silver switches
- Rated 16AX for fluorescent or inductive loads
- Two way switches that can be wired as one way

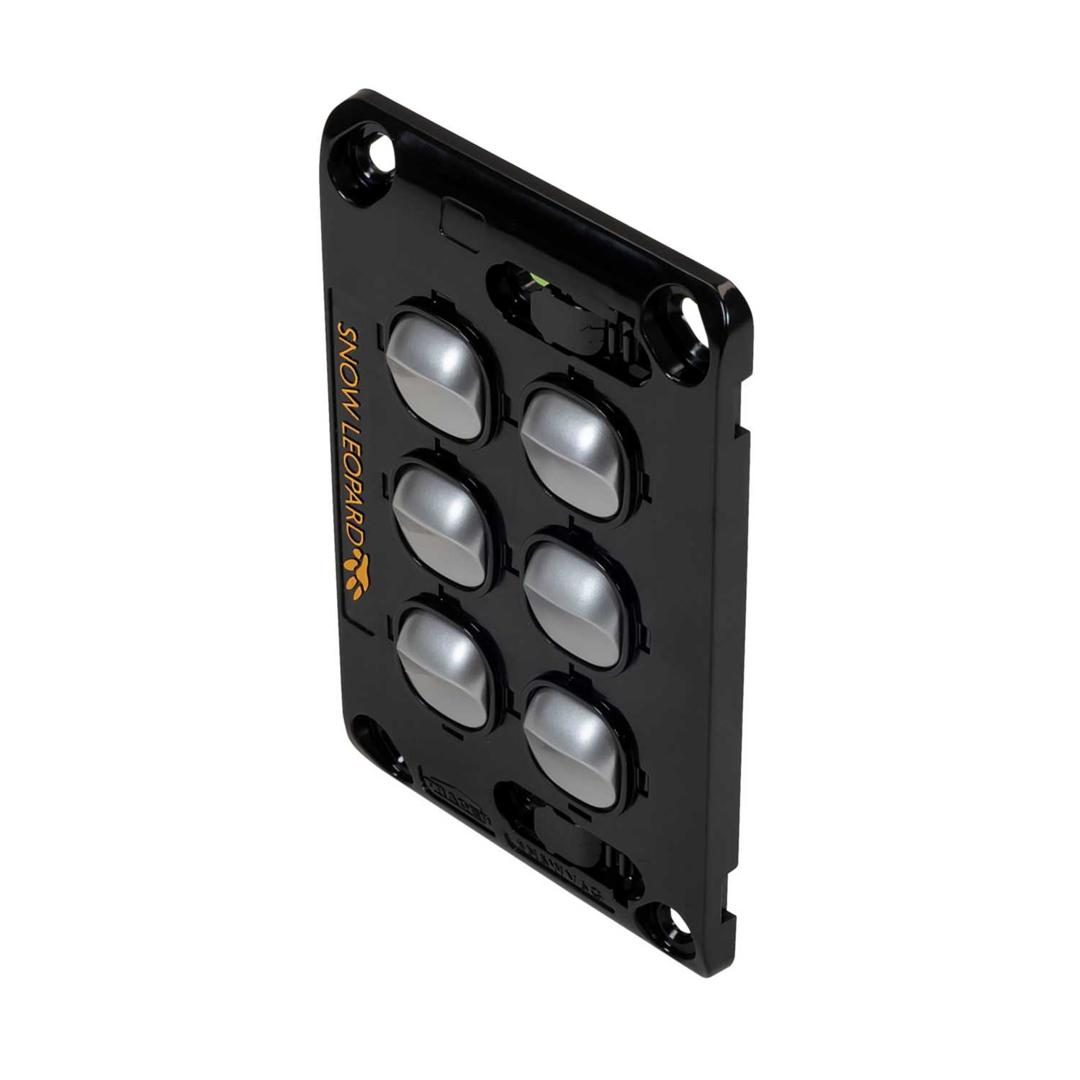

- A spirit level has been embedded in the grid plate as either a horizontal and/or vertical inclusion to assist the contractor
- Covers, plates and dollies are made from UV stabilised polycarbonate to avoid discolouring to yellow
- Colour
- Black/Silver
- Current Rating
- 20A
- Depth
- 7.5mm
- Dimensions
- (H)114.8 mm x (W)74.1 mm x (D)7.5 mm
- Finish
- Glass Look
- Fixing Centres
- 84mm
- Frequency
- 50 Hz
- Guarantee
- 10 Years
- Height
- 114.8mm
- Material
- Polycarbonate
- Mounting
- Flush
- Mounting Depth
- 17.9mm
- Number Of Gangs
- 6
- Number Of Poles
- 1 Pole
- Number Of Ways
- 2
- Packaging Types
- Each
- Product Range
- Snow Leopard
- Shape
- Rectangular
- Standards
- AS/NZS60669-1

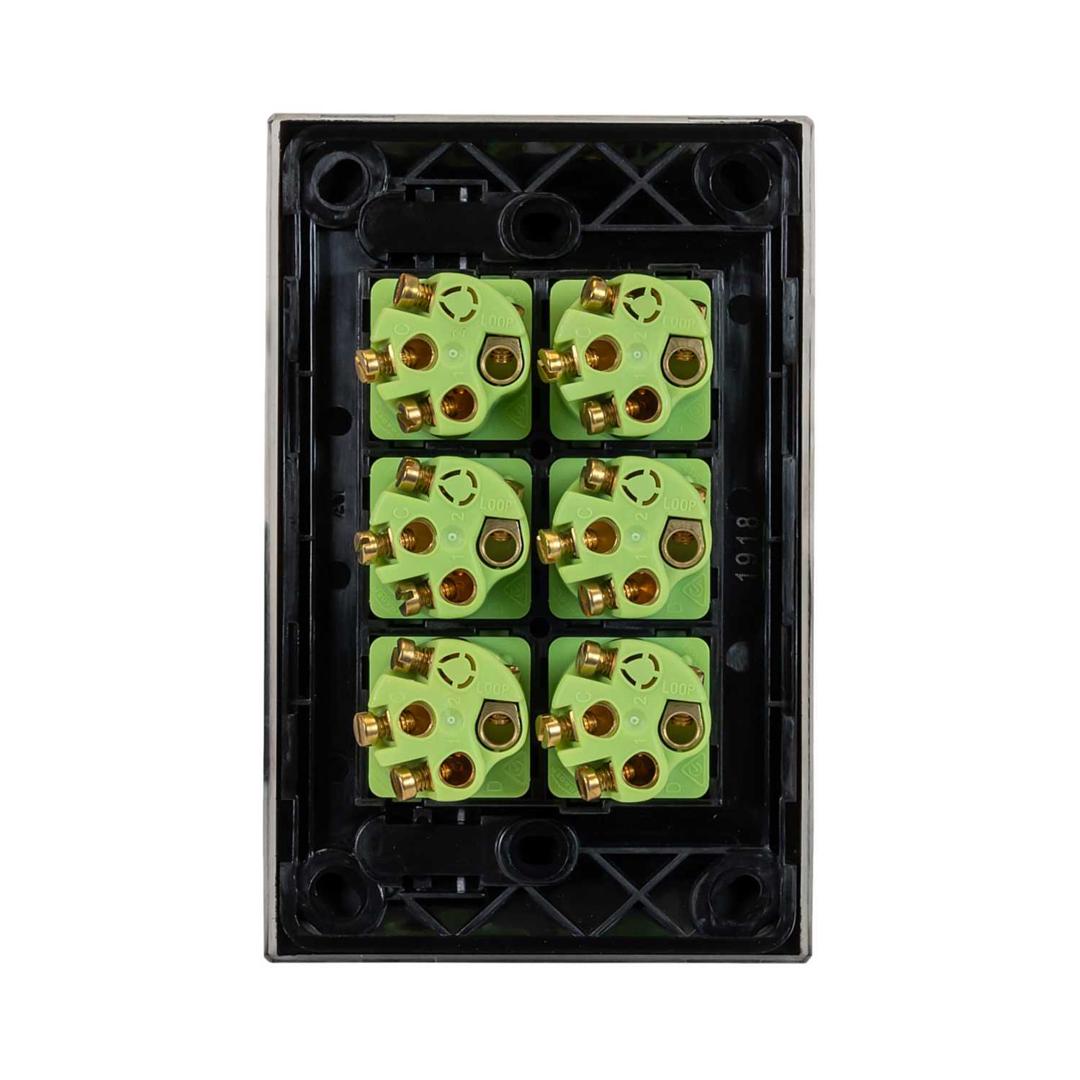

- Terminal Capacity Live Neutral
- 4 x 1.5mm²
- Type
- Light Switch
- Unspsc V18
- 39122226
- Unspsc V24
- 39122226
- Voltage Rating
- 250V AC
- Weight
- 0.13kg
- Width
- 74.1mm
