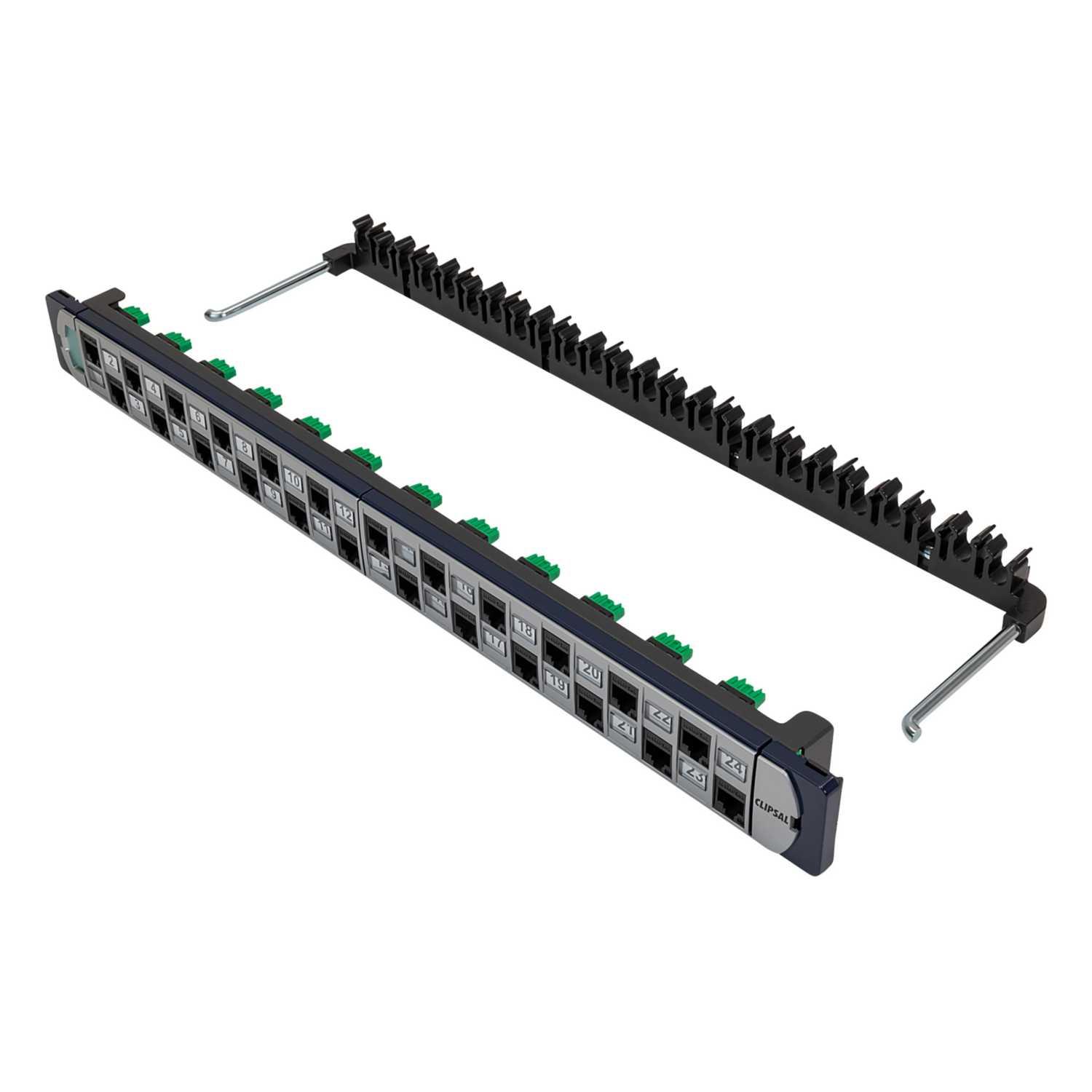

Clipsal CAT6A 24 Port 1RU Actassi Loaded Patch Panel
Part Number: RJ6AU24PPC
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- Wiring label for both 568A and 568B wiring formats
- 110 style termination
- Handy replaceable label strips
- Sturdy metal construction
- Cage nuts, screws, washers and cable ties included
- Mounts on standard 19" cabinet rack or wall bracket
- Colour
- Grey/Black
- Depth
- 124mm
- Dimensions
- (H)44 mm x (W)482 mm x (D)124 mm
- Guarantee
- 1 Year
- Height
- 44mm
- Material
- ABS, Polycarbonate, Metal
- Number Of Ports
- 24
- Packaging Types
- Each
- Product Range
- Actassi
- Size
- 1RU
- Standards
- ISO/IEC 11801:2011 Ed.2.2 ANSI/TIA-568-C.2 IEC 60603-7-2 AS/NZS 3080:2003 UL 1863
- Type
- Patch Panel
- Unspsc V18
- 43223309
- Unspsc V24
- 43223309
- Weight
- 0.969kg
- Width
- 482mm
