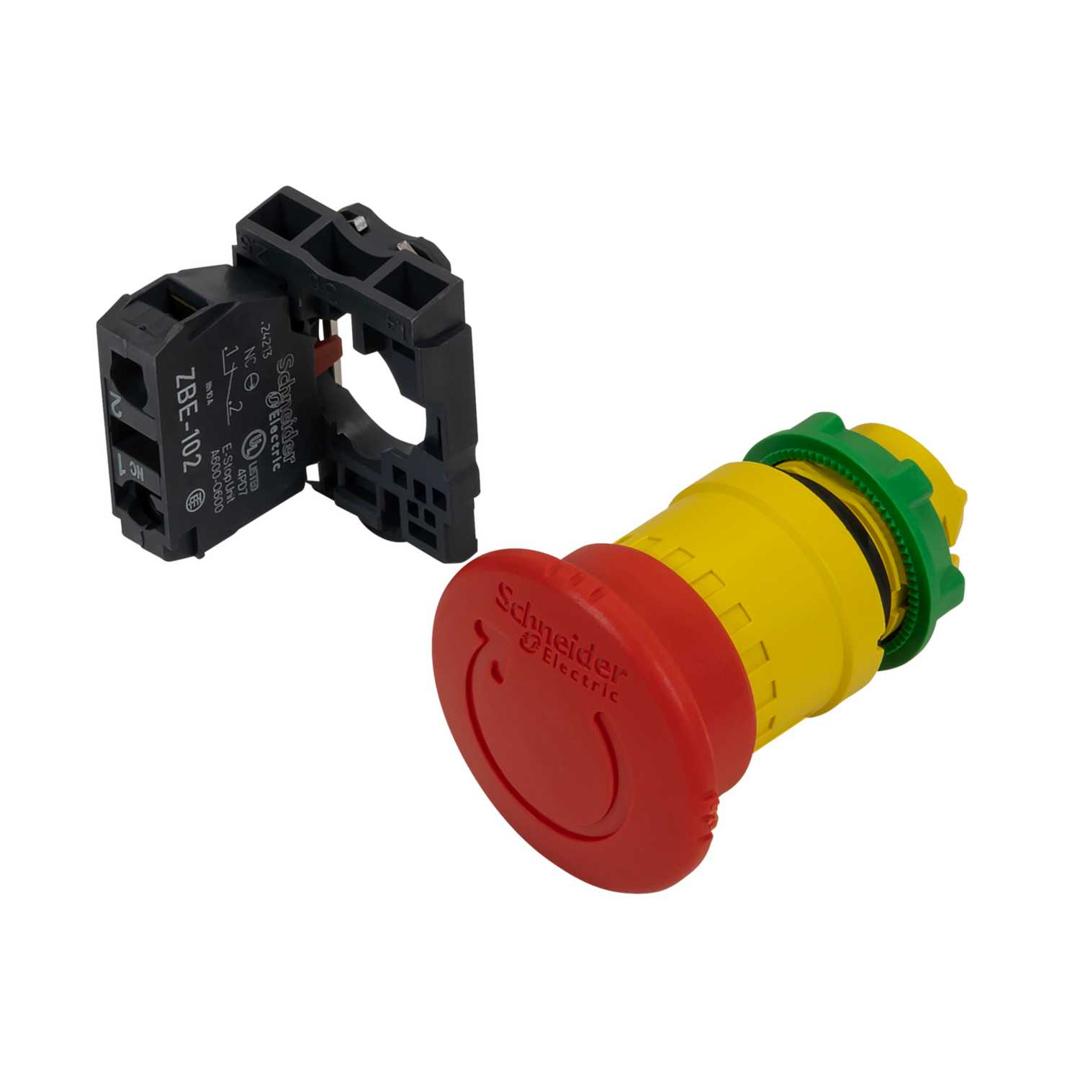

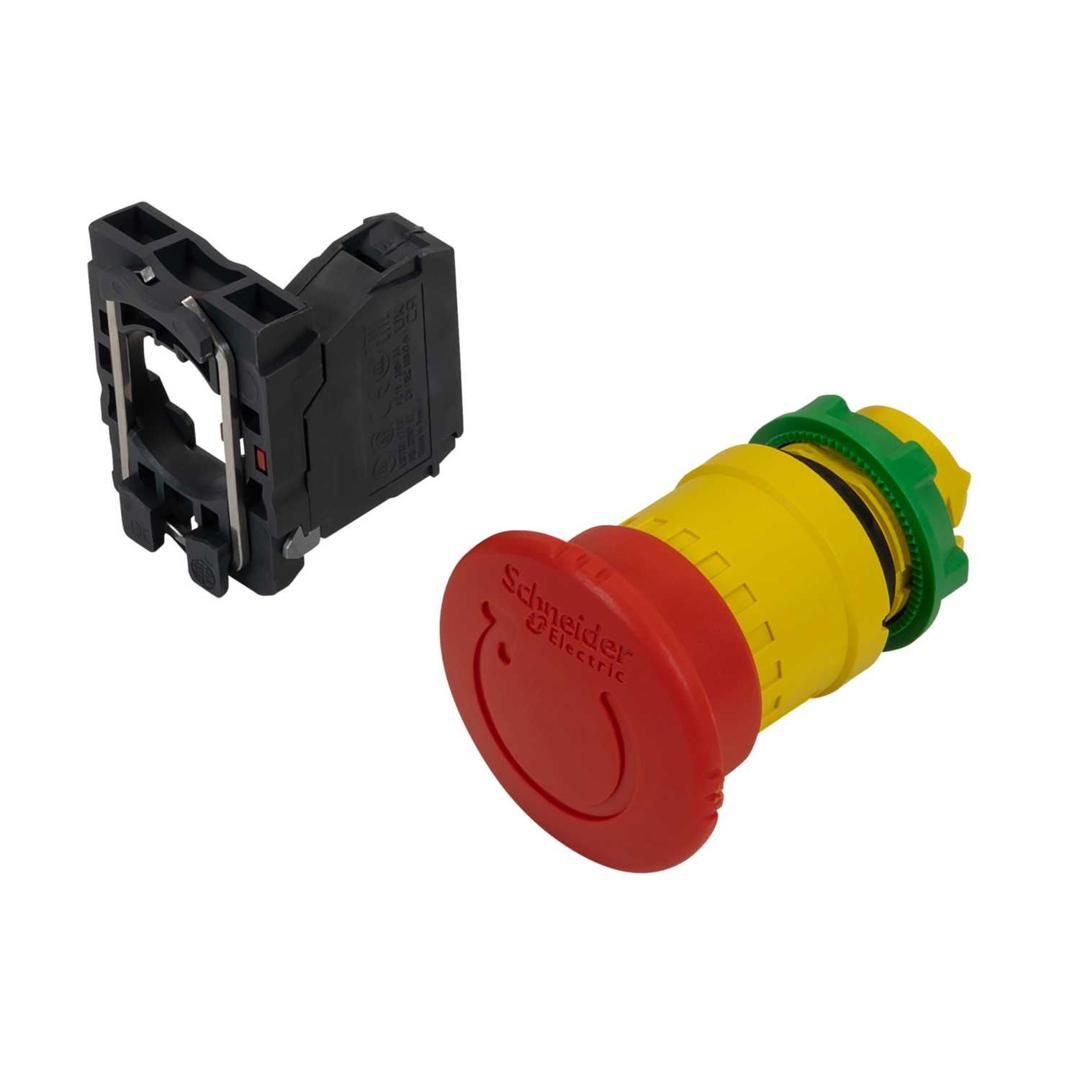

Schneider Harmony XB5 Emergency Stop Twist to Release 1NC Pushbutton Red
Part Number: XB5AS8442
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- Emergency stop / shutdown button, also called EMS (Emergency Machine Stop) and EMO (Emergency Off)
- For installation in standard 22.5mm diameter panel cut-outs
- 1 normally closed contact with screw clamp connections
- Plastic bezel with unmarked Ø 40mm mushroom head pushbutton
- Impact, dust, water and vibration resistant
- Colour
- Red
- Contact Configuration
- 1 NO + 1 NC
- Cut Out
- 22.5mm
- Depth
- 82mm
- Diameter
- 22mm
- Dimensions
- (Dia)22 mm x (W)40 mm x (D)82 mm
- Guarantee
- 18 Months
- Head Type
- Mushroom
- Ip Rating
- IP66
- Legend
- None
- Material
- Plastic
- Maximum Operating Temperature
- 70°C
- Minimum Operating Temperature
- -25°C
- Mounting
- Panel
- Operation Type
- Latching Turn Release
- Packaging Types
- Each
- Product Range
- Harmony XB5
- Standards
- IEC 60947-5-1 IEC 60947-5-5 IEC 60947-1 IEC 60947-5-4 IEC 60204-1 IEC 60364-5-53
- Supplied With
- Fixing Collar and Contact Block
- Type
- Emergency Stop Pushbutton
- Unspsc V18
- 39122216
- Unspsc V24
- 39122216
- Weight
- 0.058kg
- Width
- 40mm
