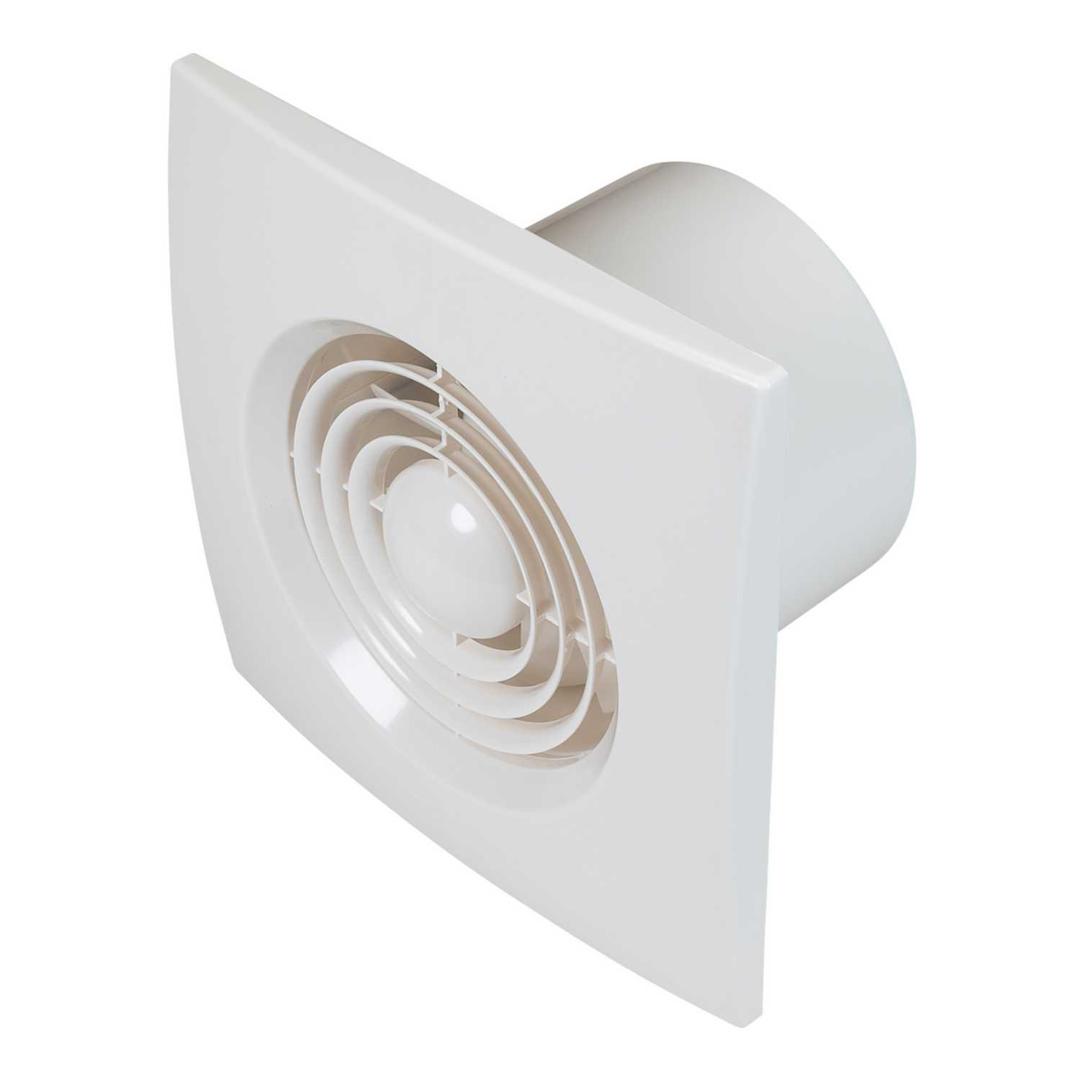

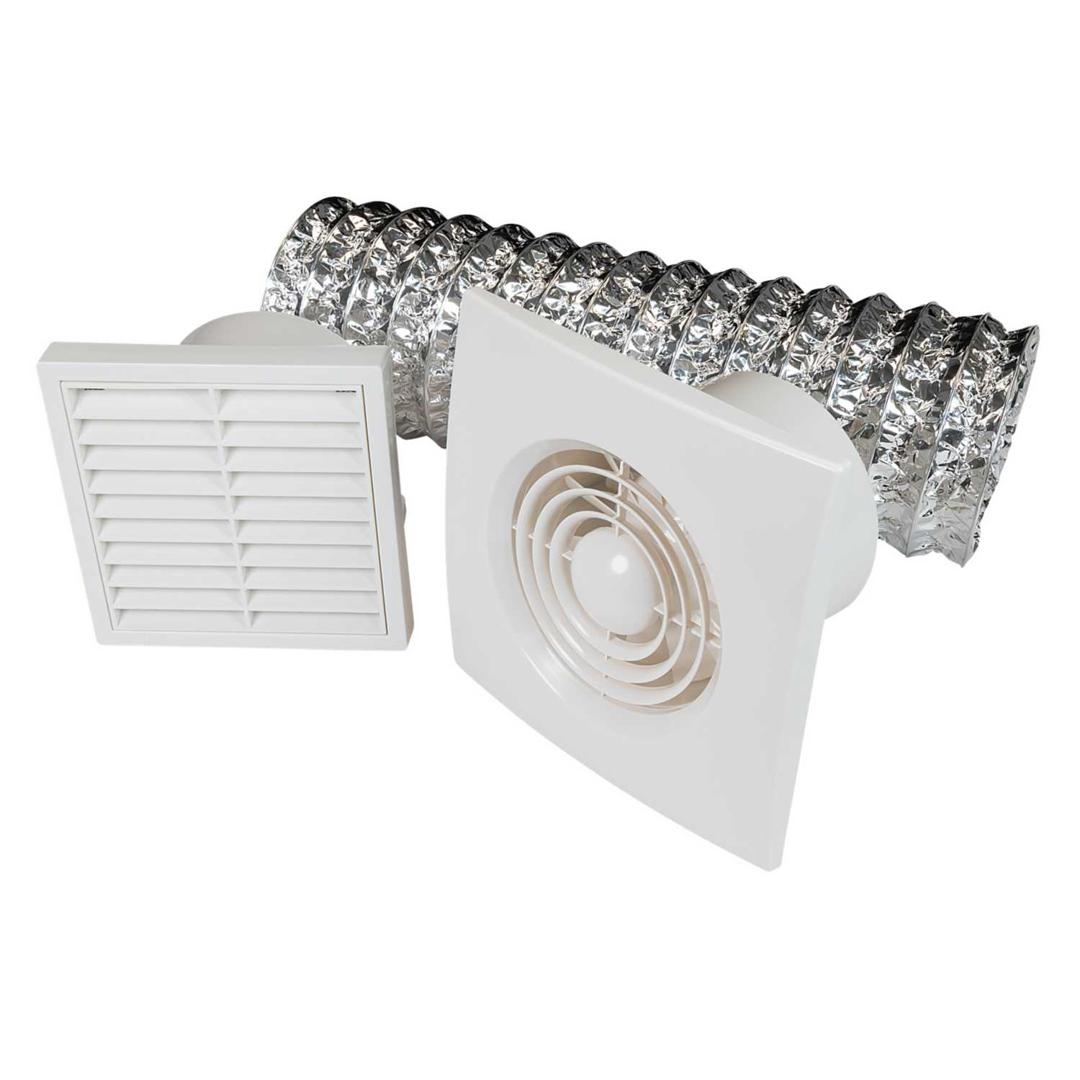

HPM 100mm Slimline Square Wall Exhaust Fan Kit White
Part Number: EF100SQSWEKIT
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- Useful for small bathrooms, kitchens and laundries
- Exhaust fan - whisks away steam and odours
- Helps prevent build-up of mould, mildew and fogging mirrors
- Can be retrofitted to replace HPM 100mm wall fans - same cut-out size
- Fitted with gravity controlled draft stopper to protect against back draft
- Compatible with HPM time-delay module EF100/150TD
- Fascia protrusion of only 17mm
- 80mm projection into wall (120 mm with draft stopper)

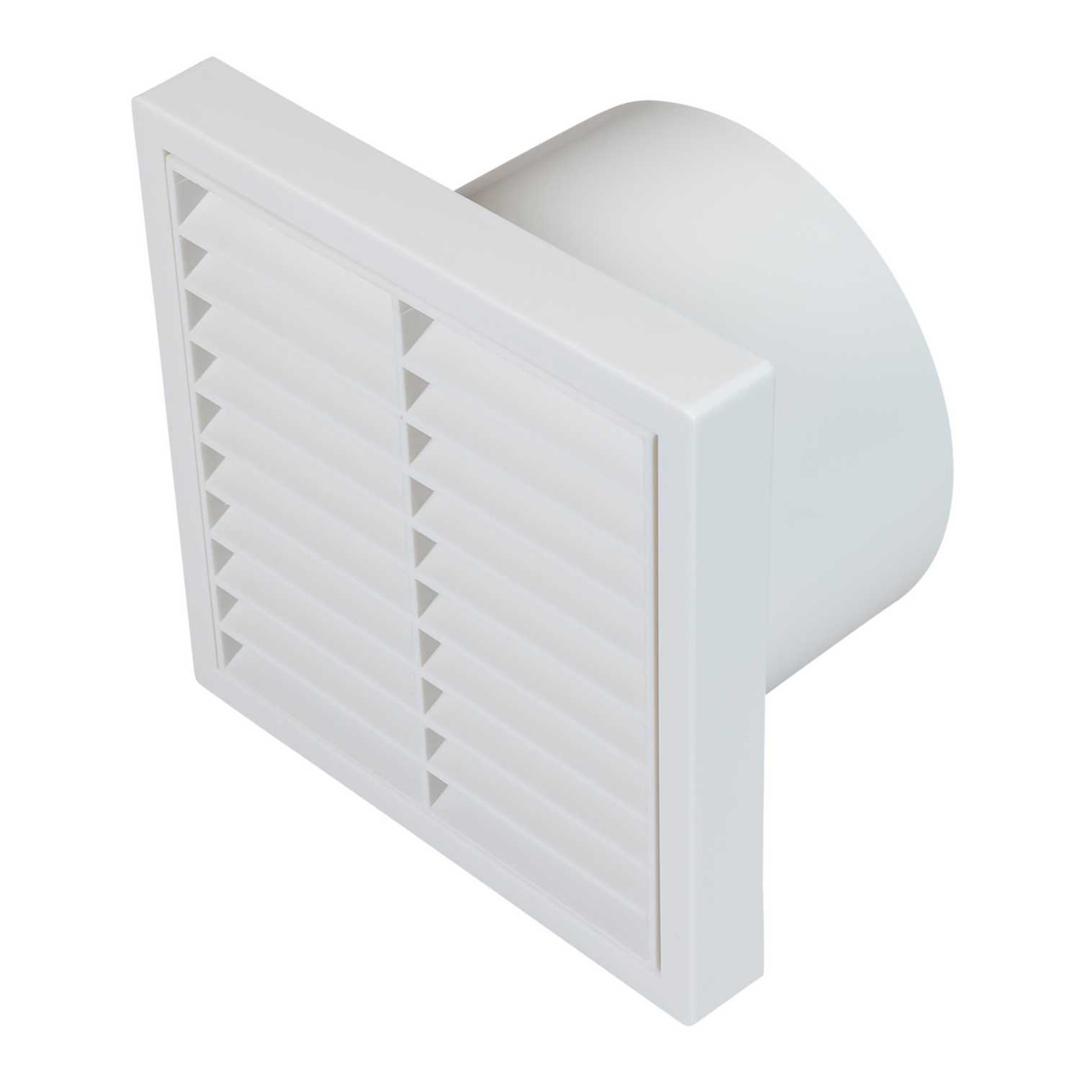

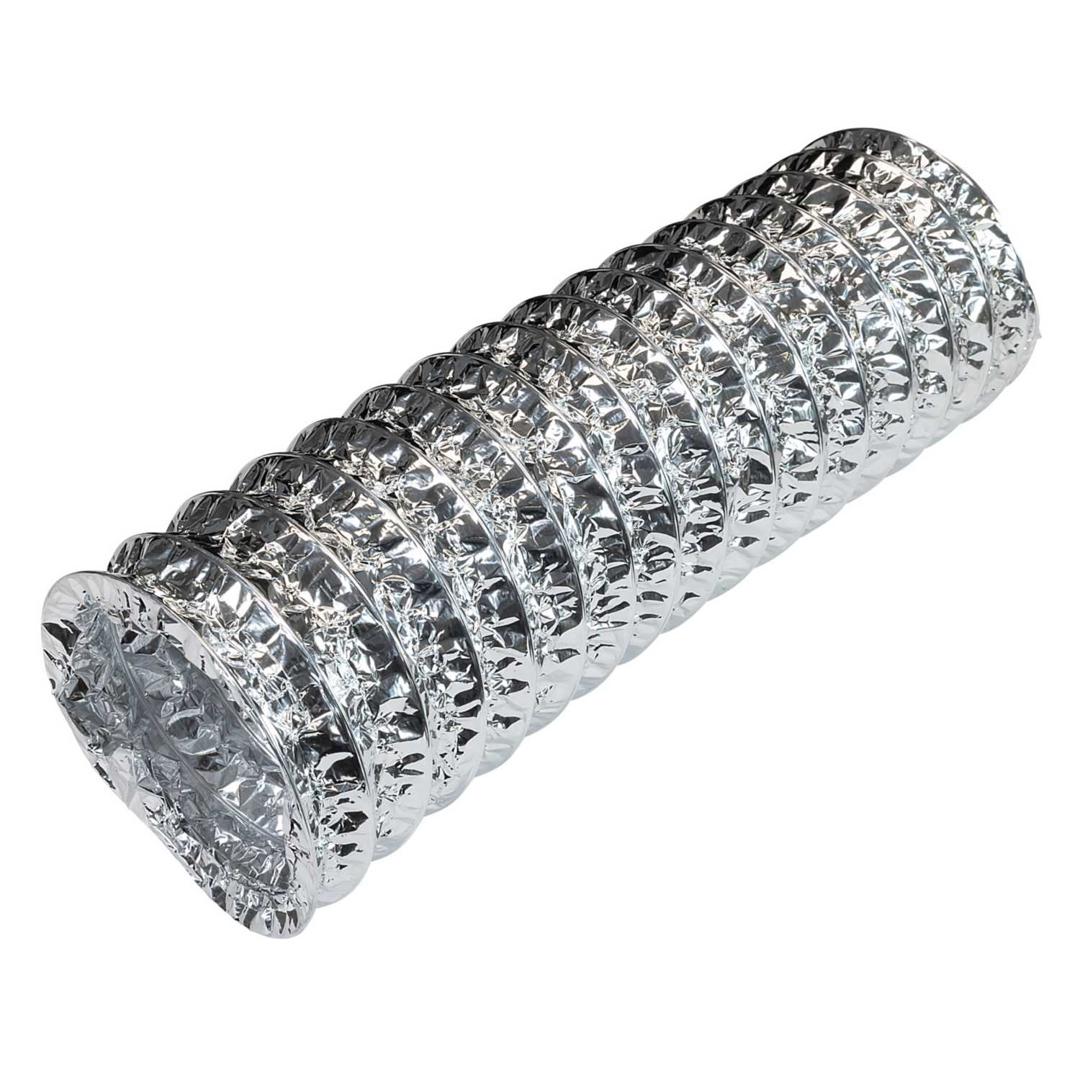

- Supplied with 3m of flexible duct and a fixed external grille
- Airflow Cubic Metresper Hour
- 105 m³/h
- Class Type
- Class 2
- Colour
- White
- Decibel Rating
- 30dBA
- Depth
- 80mm
- Dimensions
- (H)158 mm x (W)158 mm x (D)80 mm
- Frequency
- 50 Hz
- Guarantee
- 3 Years
- Height
- 158mm
- Hole Size
- 110mm
- Ip Rating
- IP24
- Material
- UV Resistant Plastic
- Motor Type
- Axial
- Mounting
- Recessed
- Online Search Priority
- 1
- Packaging Types
- Each
- Power Rating
- 14W
- Product Range
- EF
- Shape
- Square
- Standards
- AS/NZS 60335.2
- Type
- Wall Exhaust Fan
- Unspsc V18
- 40101502
- Unspsc V24
- 40101502
- Voltage Rating
- 240V AC
- Weight
- 0.842kg
- Width
- 158mm
