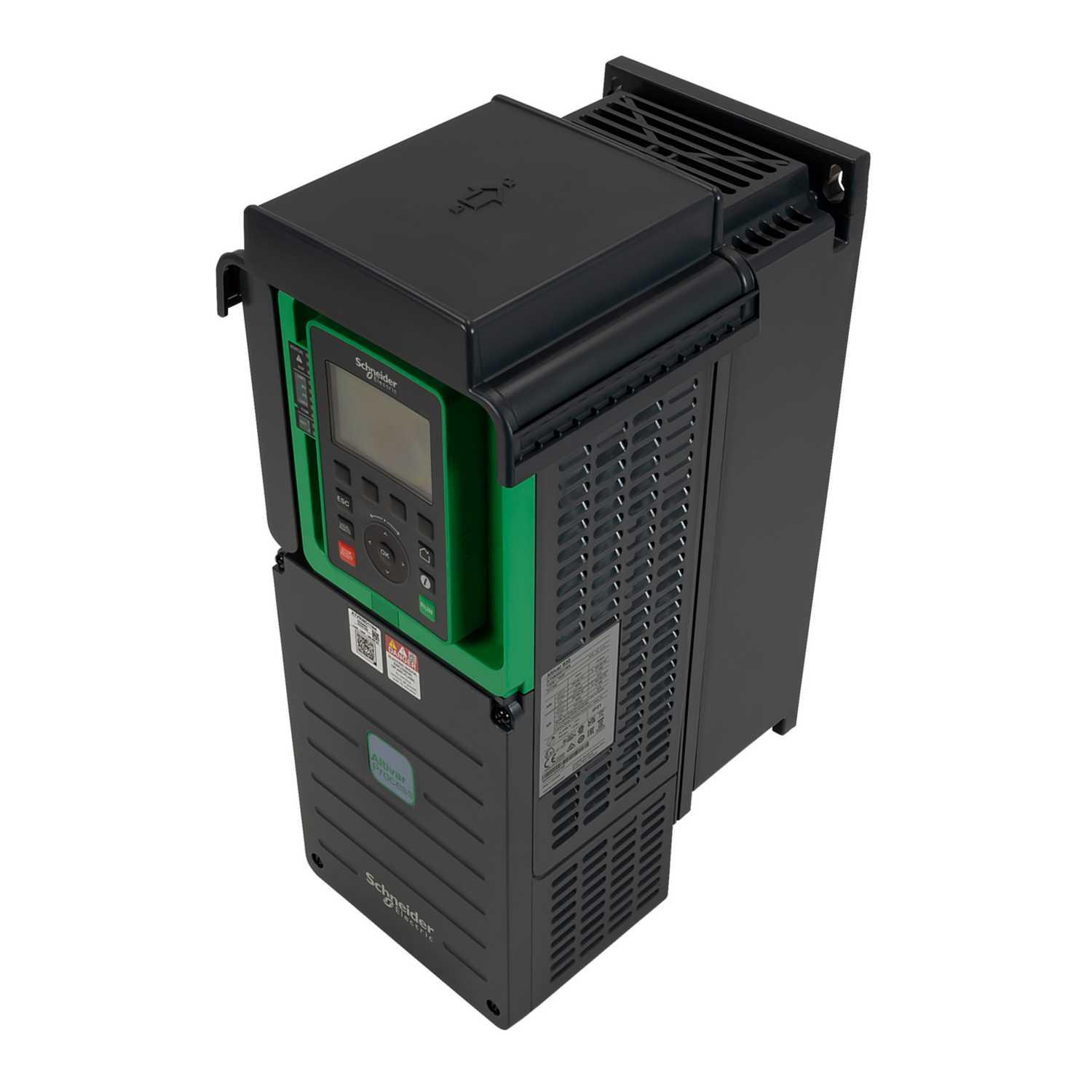

Schneider Altivar Process 11kW 400-480V AC 3 Phase Variable Speed Drive with Braking Unit
Part Number: ATV930D11N4
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- For use with 3-phase synchronous and asynchronous motors
- Focused on heavy-duty machinery
- 16 preset speeds
- Embedded web server for remote monitoring and control access
- Class C3 EMC filter integrated
- Braking to standstill by DC injection
- Depth
- 236mm
- Dimensions
- (H)409 mm x (W)171 mm x (D)236 mm
- Frequency
- 50/60 Hz
- Guarantee
- 18 Months
- Height
- 409mm
- Ip Rating
- IP21
- Mounting
- Wall Mount
- Number Of Phases
- 3
- Packaging Types
- Each
- Power Rating
- 11kW
- Product Range
- Altivar Process ATV930
- Standards
- IEC 61800-5-1
- Type
- Variable Speed Drive
- Unspsc V18
- 39122002
- Unspsc V24
- 39122002
- Voltage Range
- 400 - 480V AC
- Weight
- 10.8kg
- Width
- 171mm
