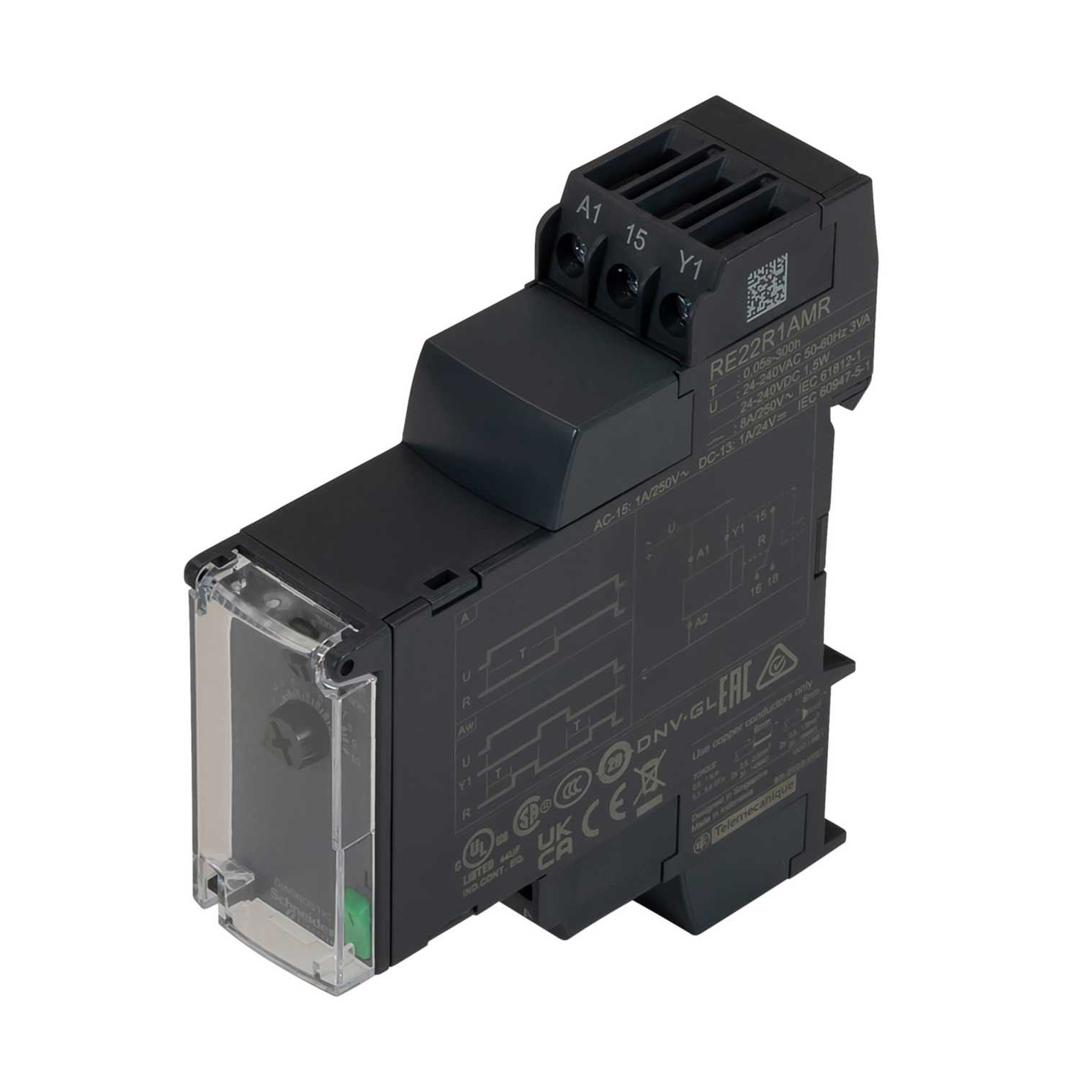

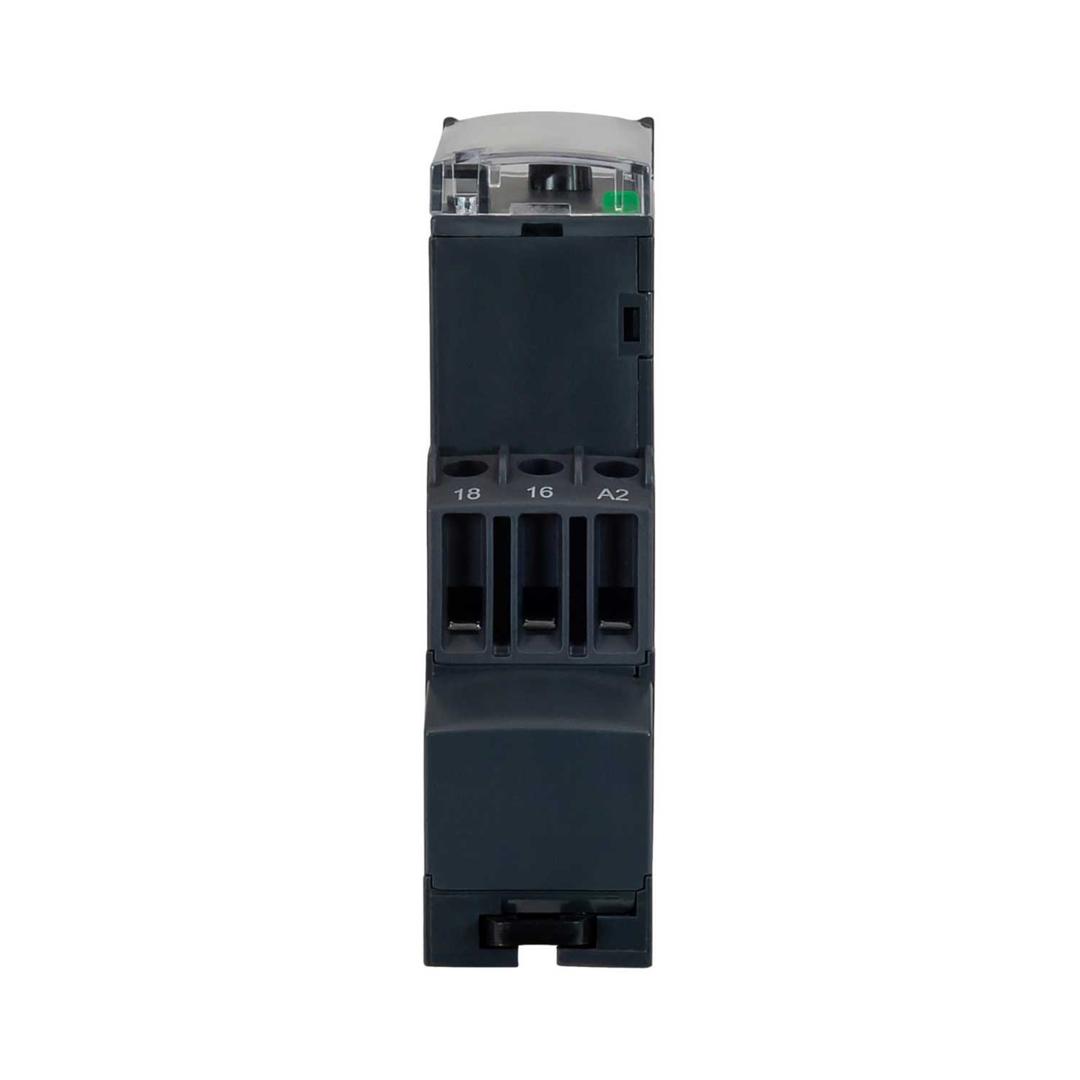

Schneider Harmony 8.0A 1CO Dual Function Modular Timer Relay 24-240V AC/DC
Part Number: RE22R1AMR
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- RE22 modular dual function timer can be set between 0.05 seconds and 300 hours
- Modular dual function timing relay is ideal for providing timing control in automation systems such as automatic door opening, alarm, lighting in toilets
- One of market slimmest form-factors with 22.5mm width, allowing for a flexible and easy installation on DIN rail
- Uses the same space as any modular 2-pole DIN device
- Offers a seal-able cover, simple and precise settings with rotary trimmers
- Dual function timer for a simple integration in hard-wired logic schematics, suitable for refurbishment of old installations without using a PLC
- Battery Back Up
- No
- Changeover
- Yes
- Colour
- Black
- Contact Configuration
- 1 CO
- Current Rating
- 8A
- Depth
- 73mm
- Dimensions
- (H)90 mm x (W)22.5 mm x (D)73 mm
- Frequency
- 50 Hz
- Guarantee
- 18 Months
- Height
- 90mm
- Material
- Self-extinguishing Plastic
- Maximum Operating Temperature
- 60°C
- Minimum Operating Temperature
- -20°C
- Mounting
- DIN Rail
- Number Of Modules
- 1.5
- Operation Type
- Dual
- Packaging Types
- Each
- Product Range
- Harmony Timer Relays
- Timer Configuration
- 2
- Timer Range
- 0.05 Seconds - 300h
- Type
- Timer
- Unspsc V18
- 39121523
- Unspsc V24
- 39121523
- Voltage Range
- 24 - 240V AC DC
- Weight
- 0.08kg
- Width
- 22.5mm
