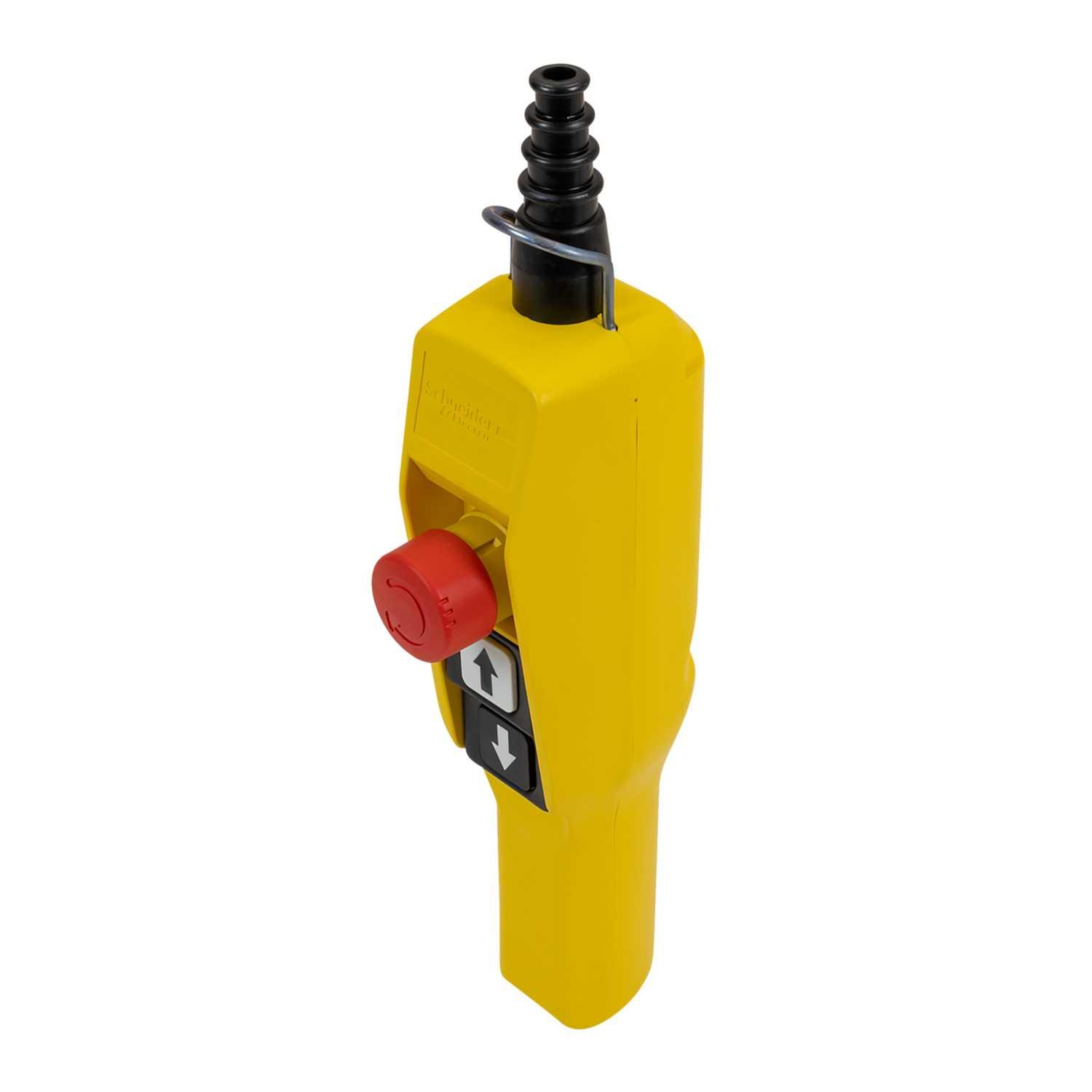

Schneider Harmony XAC Booted Hoist Pistol Grip Pendant Station with Emergency Stop Yellow
Part Number: XACA2153
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- Yellow pendant station for hoist motor has single speed
- Pendant station for hoist motor is designed for standard or medium-duty control circuit applications in your machines
- 2 push buttons and 1 emergency stop with "raise" and "lower" markings, with normally open and normally close contact
- Impact resistant, dust resistant, water resistant and vibration resistant
- Suitable for operation in harsh environments, its ergonomic pistol grip allows single handed control of your hoist and crane
- Stop push-button Ø 30 mm 1 NC latching
- First push-button 1 NC + 1 NO raise, slow
- Second push-button 1 NC + 1 NO lower, slow
- Button Configuration
- Up / Down / Emergency Stop
- Colour
- Yellow
- Frequency
- 50 Hz
- Guarantee
- 18 Months
- Ip Rating
- IP65
- Material
- Polypropylene
- Operating Temperature Range
- -25-70°C
- Packaging Types
- Each
- Product Range
- Harmony XAC
- Standards
- IEC 60204-32 CSA C22.2 No 14 IEC 60947-5-1 UL 508
- Type
- Pendant Station
- Unspsc V18
- 39121561
- Unspsc V24
- 39121561
- Weight
- 0.374kg
