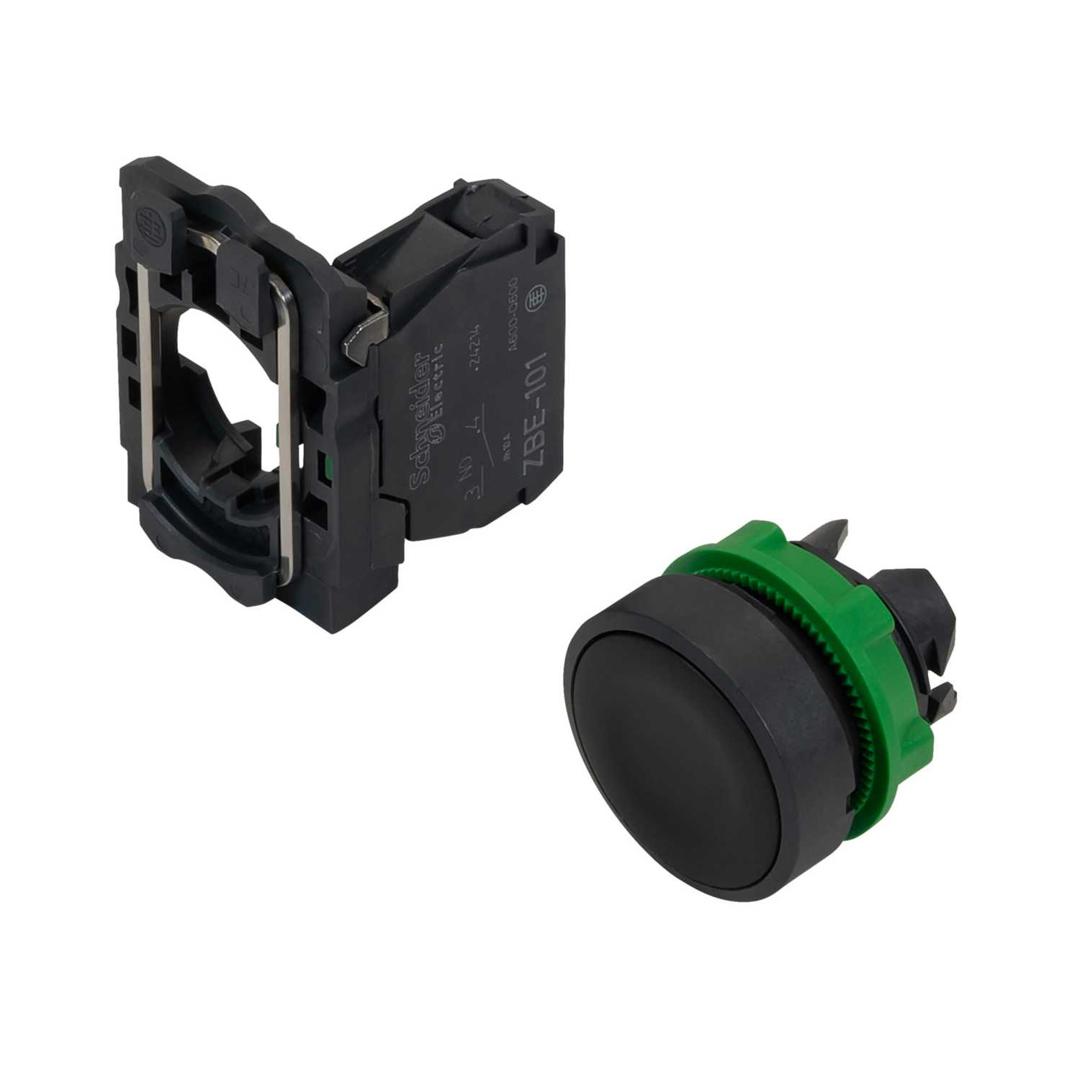

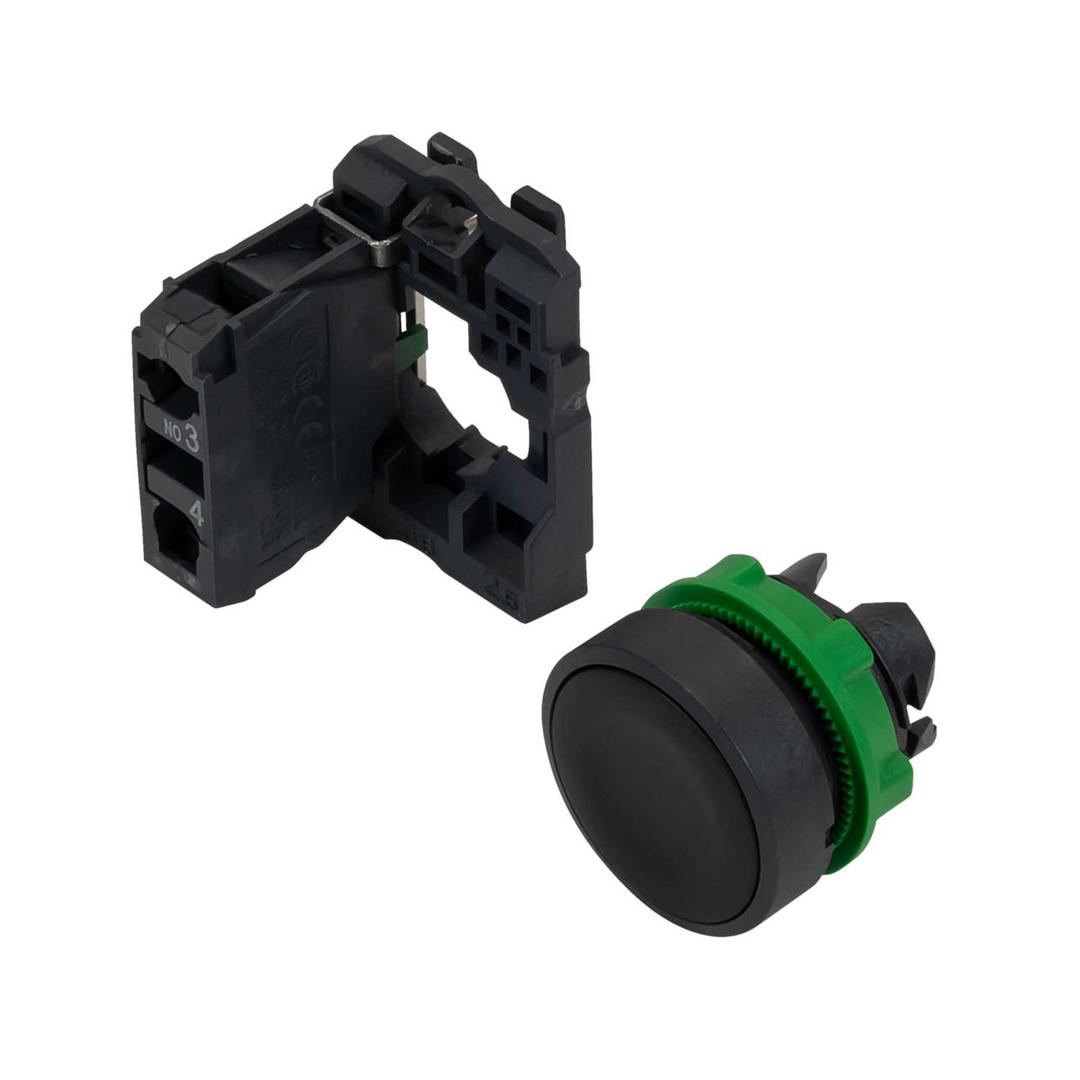

Schneider Harmony XB5 1NO Spring Return Plastic Bezel Pushbutton Black
Part Number: XB5AA21
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- Momentary modular pushbutton that operates with a spring return / impulse mechanism
- For installation in standard 22.5mm diameter panel cut-outs
- 1 normally open contact with screw clamp connections
- Dark grey plastic bezel with flush unmarked pushbutton
- Quick and easy assembly and disassembly from plastic fixing collar
- Impact, dust, water and vibration resistant
- A wide choice of contact blocks for general purposes or specific applications (low current, standard) can be purchased separately
- Button Profile
- Flush
- Colour
- Black
- Contact Configuration
- 1 NO
- Cut Out
- 22.5mm
- Depth
- 42mm
- Diameter
- 22mm
- Dimensions
- (Dia)22 mm x (W)30 mm x (D)42 mm
- Guarantee
- 18 Months
- Head Type
- Standard
- Ip Rating
- IP66 / IP67 / IP69
- Legend
- None
- Material
- Plastic
- Maximum Operating Temperature
- 70°C
- Minimum Operating Temperature
- -40°C
- Operation Type
- Spring Return
- Packaging Types
- Each
- Product Range
- Harmony XB5
- Standards
- IEC 60947-1 UL 508 JIS C8201-5-1 IEC 60947-5-4 IEC 60947-5-1 CSA C22.2 No 14 JIS C8201-1
- Supplied With
- Fixing Collar and Contact Block
- Type
- Pushbutton
- Weight
- 0.037kg
- Width
- 30mm
