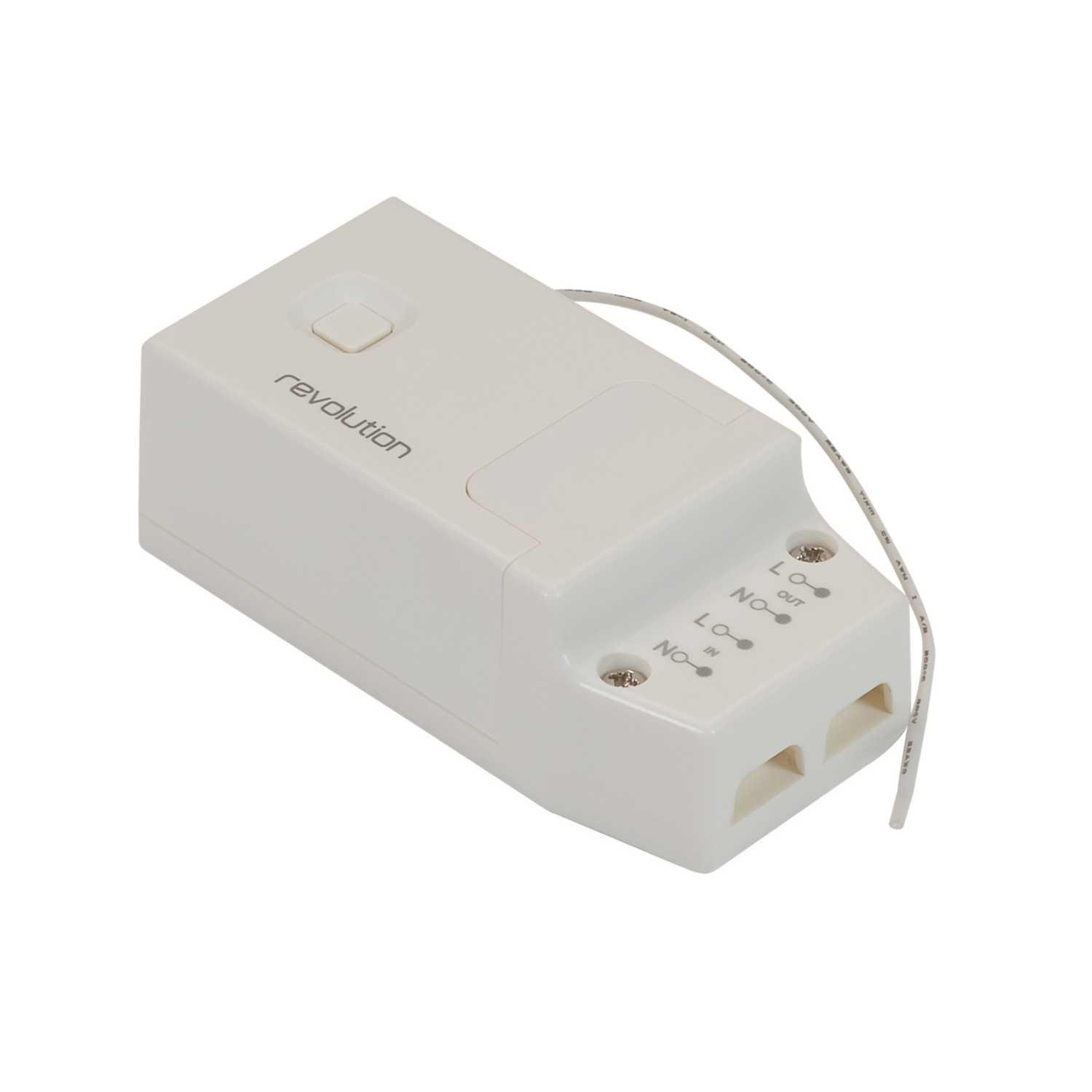

Revolution BC Single Channel Wireless Dimming Controller White
Part Number: RBC412
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- Provides a phased dimmed output to control the attached load
- Controls are paired with RBC200 series wireless switches
- RF frequency - 433MHz
- Range approx. 30m indoors through walls and floors
- Range approx. 100m outdoors line of sight
- Pairing method - pushbutton or remote App
- Load rating 10A resistive maximum, 1000w LED maximum
- 5 year warranty
- Colour
- White
- Depth
- 31mm
- Dimensions
- (L)89 mm x (W)44 mm x (D)31 mm
- Frequency
- 50 Hz
- Guarantee
- 5 Years
- Length
- 89mm
- Material
- Plastic
- Packaging Types
- Each
- Product Range
- RBC
- Shape
- Rectangular
- Standards
- RCM Certified
- Suitable For
- RBC switches
- Type
- Wireless Dimming Controller
- Unspsc V18
- 39122221
- Unspsc V24
- 39122221
- Voltage Rating
- 250V AC
- Weight
- 0.095kg
- Width
- 44mm
