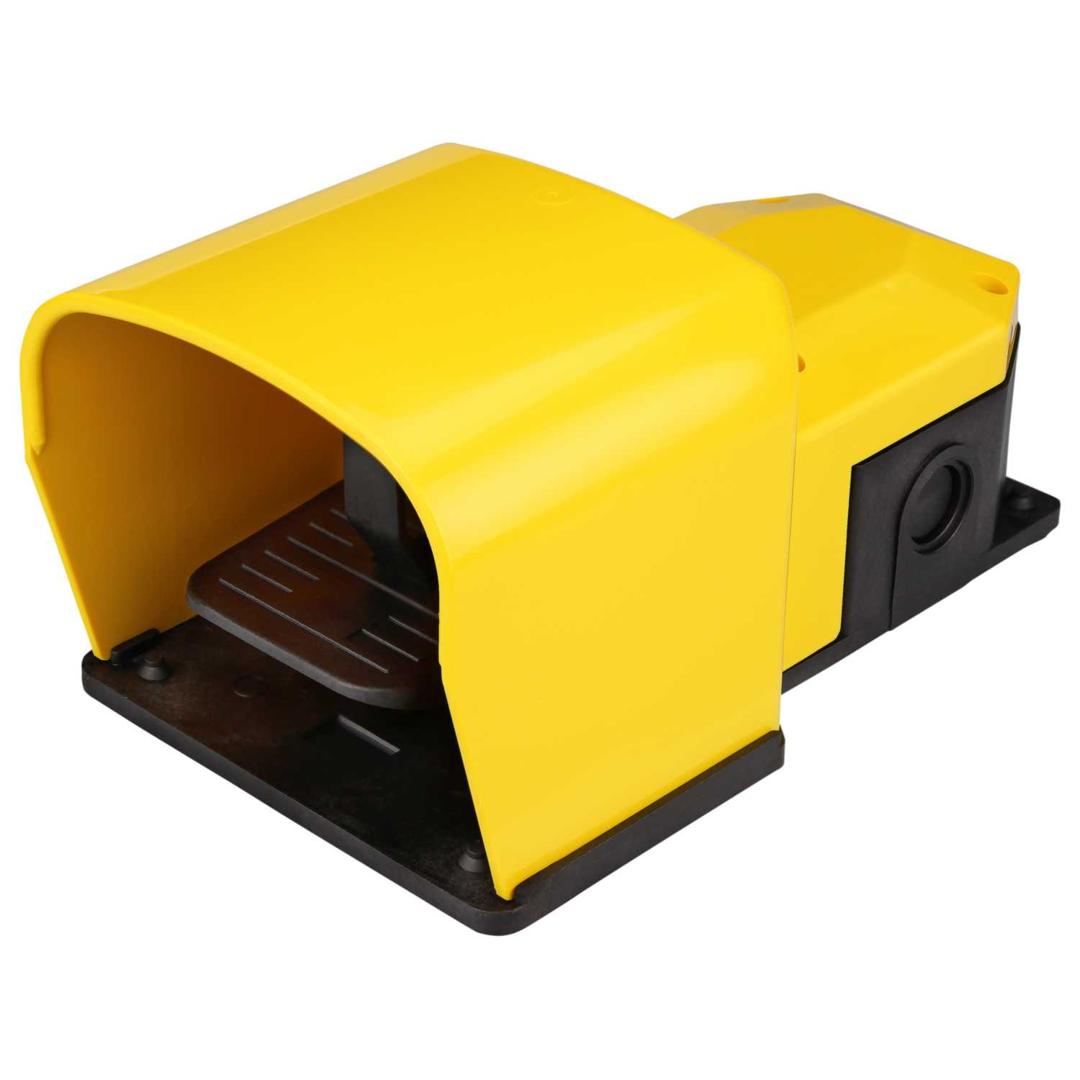

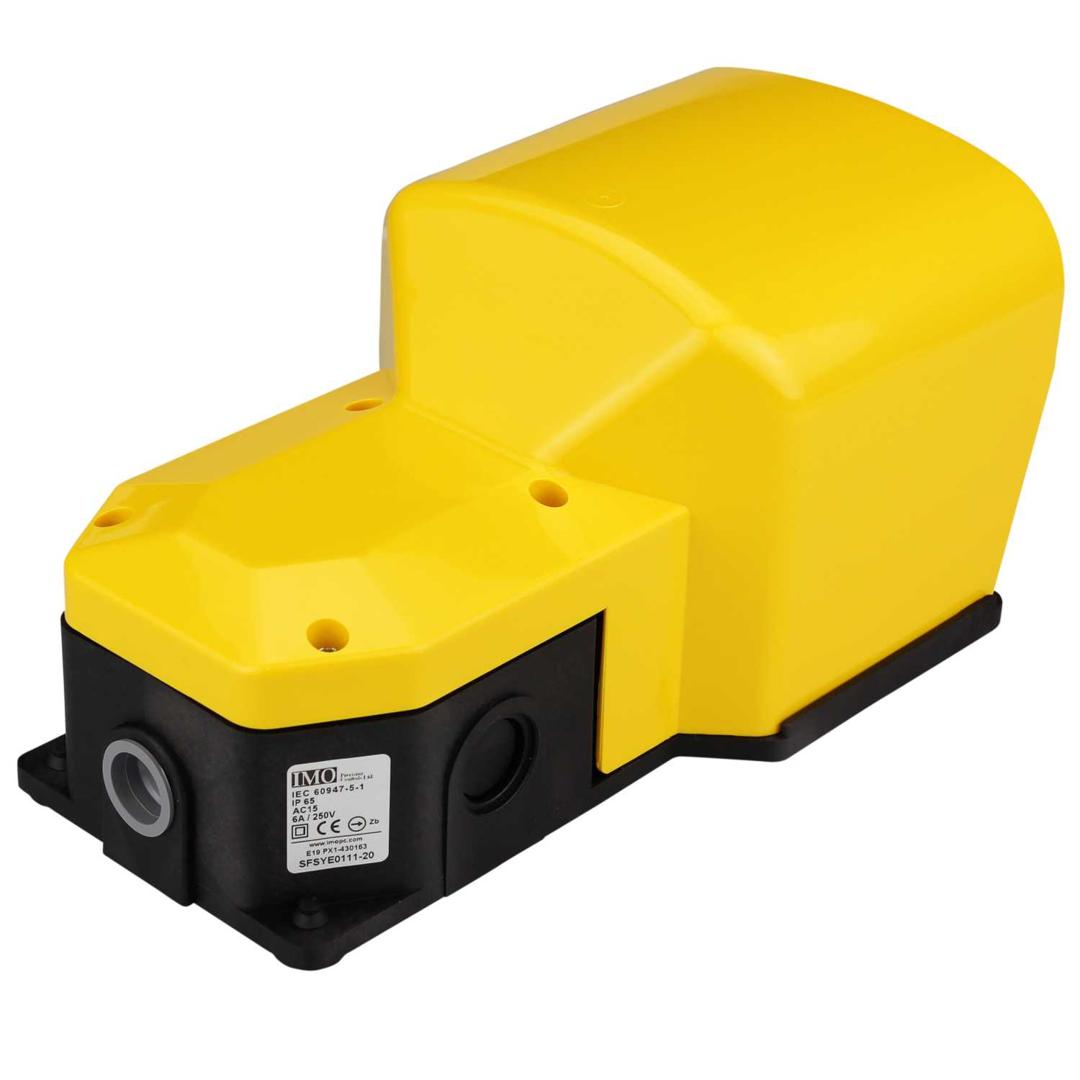

IMO Shrouded Heavy Duty Snap Action Pedal Foot Switch IP65
Part Number: FT01C
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- Shrouded foot switch with safety lever
- 1NO 1NC snap action contacts
- 10A 500VAC 600VDC
- Technopolymer housing
- Shock proof
- M20 threaded conduit entry
- IMO model number SFSYE0111-20
- Cable Entry
- 3 x M20 Gland Entries
- Colour
- Yellow/Black
- Contact Configuration
- 1 NO 1 NC
- Depth
- 241mm
- Dimensions
- (H)126 mm x (W)140 mm x (D)241 mm
- Footguard
- Yes
- Guarantee
- 1 Year
- Height
- 126mm
- IP Rating
- IP65
- Material
- Technopolymer Housing
- Number Of Pedals
- 1
- Operation Type
- Snap-Action
- Packaging Types
- Each
- Standards
- EN 60947-5-1 EN 62061 EN ISO 13849-1 EN ISO 14119 EN81-1 EN81-2 EN81-20 EN81-50
- Unspsc V18
- 39122222
- Unspsc V24
- 39122222
- Voltage Rating
- 500V AC
- Weight
- 0.72kg
- Width
- 140mm
