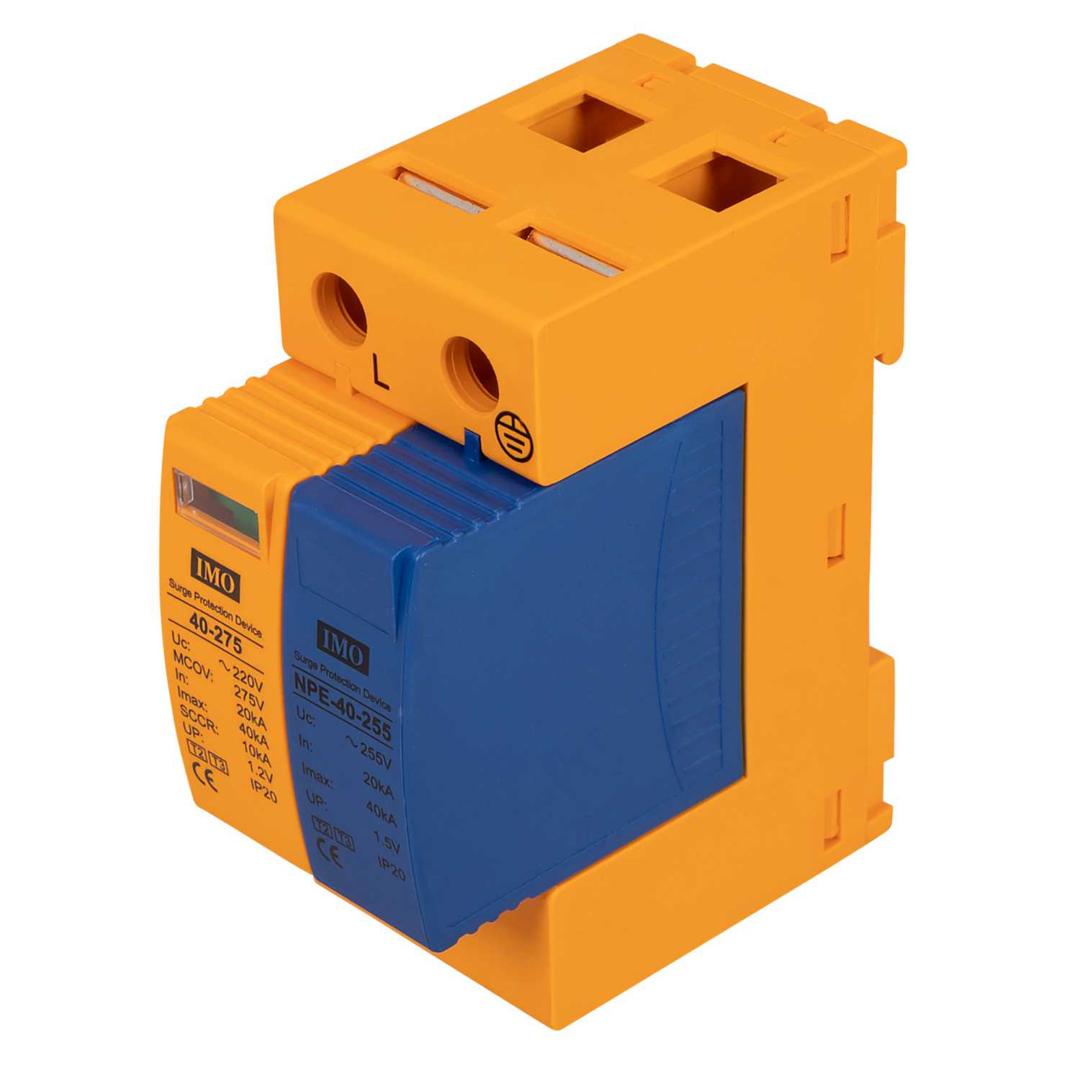

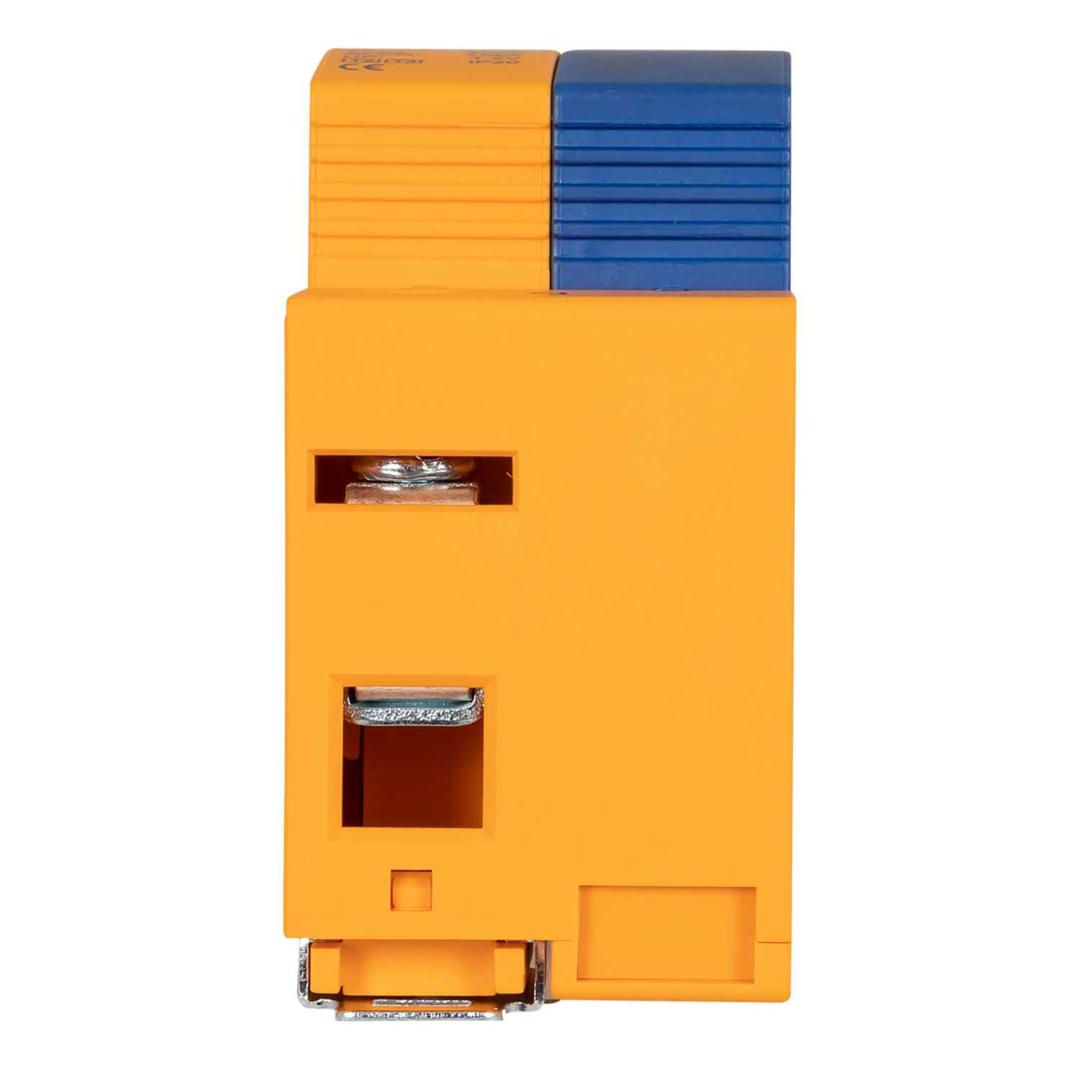

IMO 1 Pole and Neutral 40kA Surge Protection Device
Part Number: SPD2-401N
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- Multi-purpose surge arrester consisting of a base element and a plug-in protection module (Type 2 / Class II)
- 2 modules wide
- Status indicator
- Optional remote signalling of disconnection
- Imax: 40kA
- Protects all earthing systems - TN, TT, IT - Type 2/3
- Colour
- Orange
- Current Rating
- 32A
- Depth
- 68mm
- Dimensions
- (H)81 mm x (W)36 mm x (D)68 mm
- Frequency
- 50 Hz
- Guarantee
- 1 Year
- Height
- 81mm
- Ip Rating
- IP20
- Material
- Plastic
- Maximum Discharge Current
- 40kA
- Mounting
- DIN Rail
- Number Of Modules
- 2
- Number Of Poles
- 1P+N
- Packaging Types
- Each
- Product Range
- SPD
- Standards
- IEC 61643-11
- Terminal Capacity
- 25mm²
- Type
- Surge Protection Device
- Unspsc V18
- 39121634
- Unspsc V24
- 39121634
- Voltage Rating
- 275V AC
- Weight
- 0.171kg
- Width
- 36mm
