PSA 240V AC 5A Gen 2 Isolation Relay in Smoke Alarm Mounting Block
Part Number: LIFSAIRMB
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- Connects Lifesaver smoke, heat and CO alarms to auxiliary devices such as sirens, sounders, emergency lights, security and fire panels
- Operates in absence of mains voltage and only when alarm device is in alarm state
- Selectable relay options
- latching, pulse and CO latching mode
- 240V AC / 30V DC 5A contact rating
- Normally open and normally closed contact options
- When CO latching mode is selected, only CO alarm activation will trigger the isolation relay

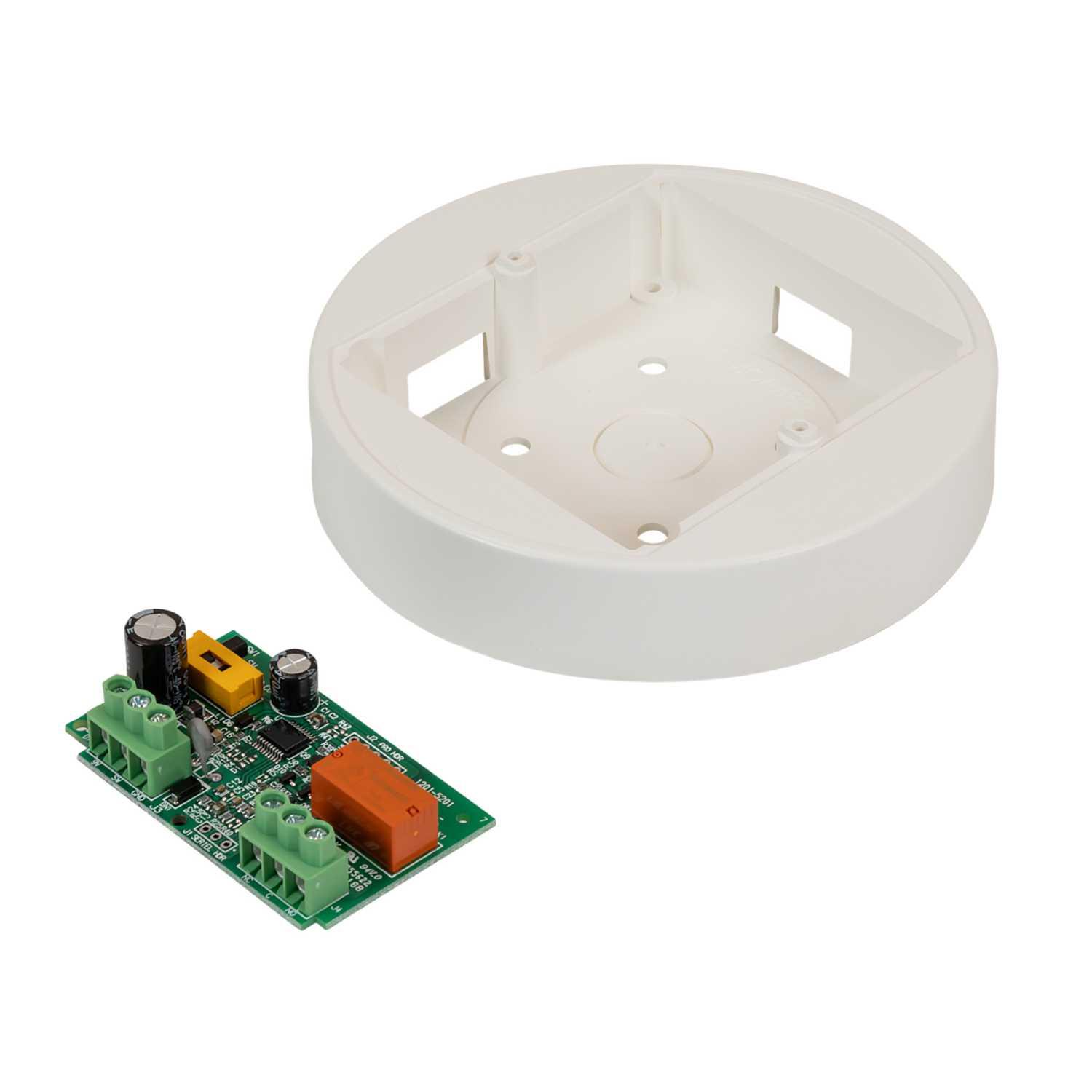

- Isolation relay is inside a smoke alarm mounting block (LIFMB3848) to suit installation under a smoke alarm
- Colour
- White
- Depth
- 24mm
- Diameter
- 125mm
- Dimensions
- (Dia)125 mm x (D)24 mm
- Frequency
- 50 Hz
- Guarantee
- 1 Year
- Interconnectable
- Yes
- Material
- Plastic
- Mounting
- Surface
- Packaging Types
- Each
- Product Range
- Lifesaver
- Shape
- Round
- Type
- Isolation Relay
- Unspsc V18
- 46191501
- Unspsc V24
- 46191501
- Voltage Rating
- 240V AC
- Weight
- 0.13kg
