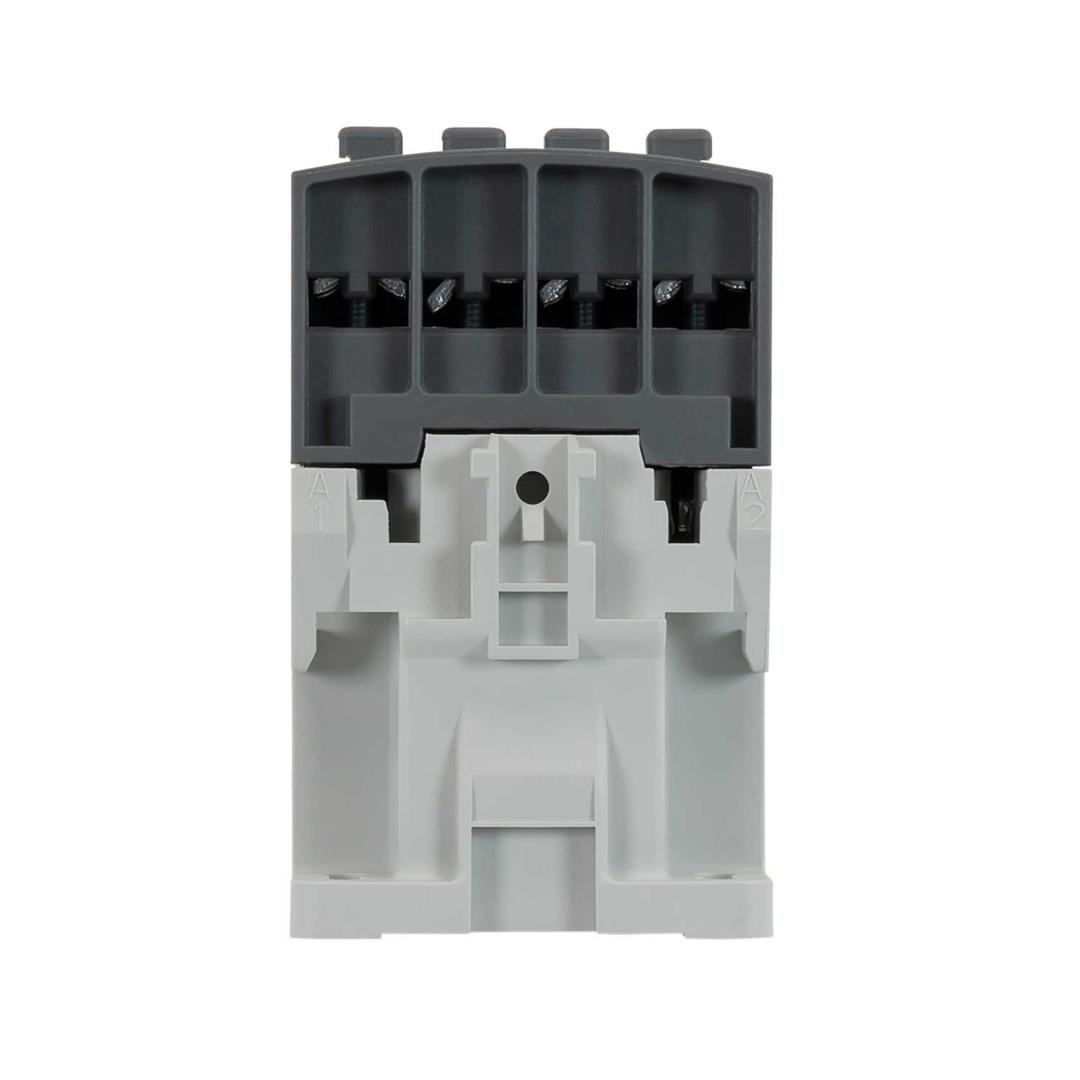

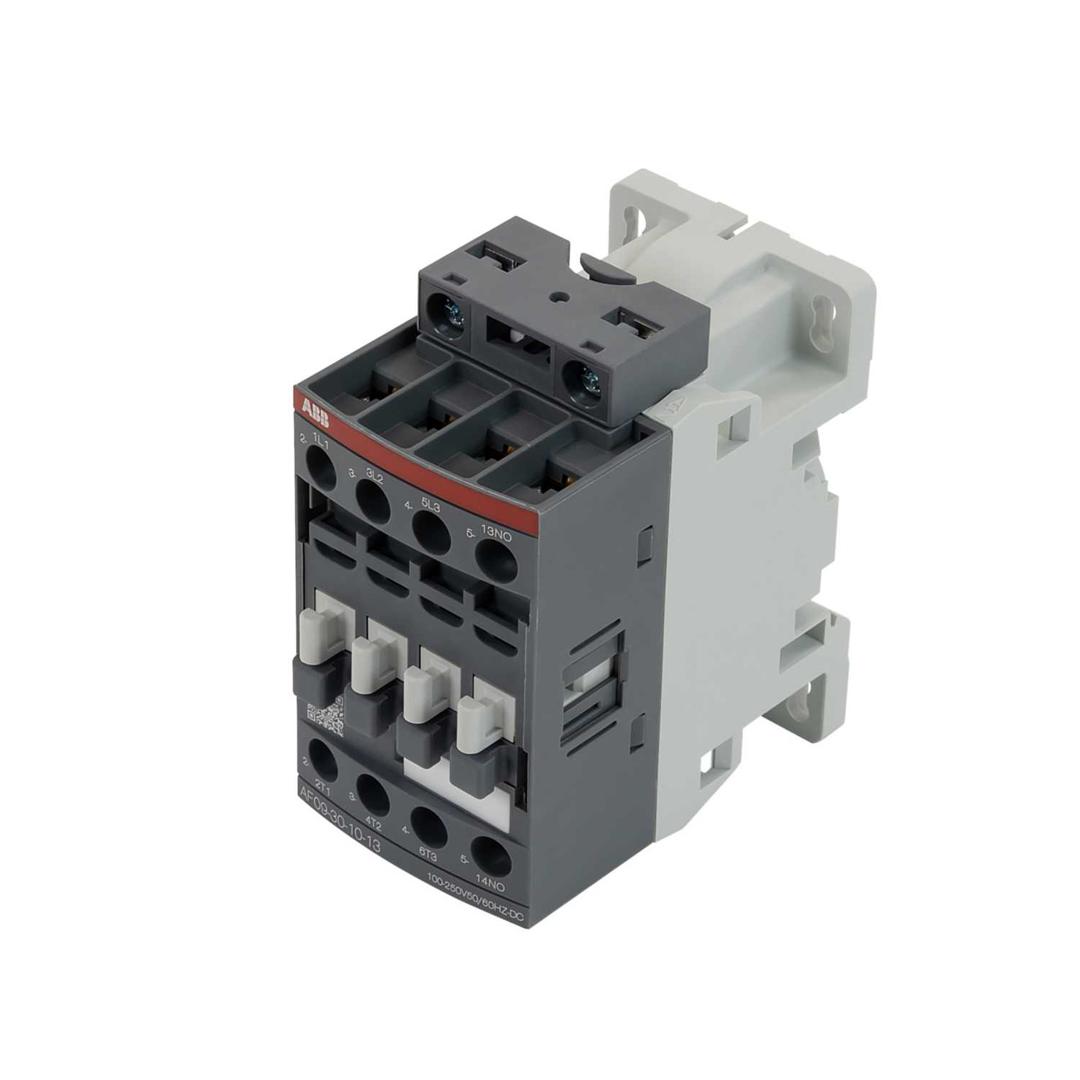

ABB 25A AC1 3 Pole (3NO) 100-250V AC/DC Coil Contactor
Part Number: AF09301013
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- Suitable for motors and resistive loads
- For variable applications up to 25A/690V AC-1
- For motor control applications up to 9A/415V AC-3/3e (4kW at 415V)
- 100-250V AC and DC coil
- 1NO built-in auxiliary contact
- Built-in surge suppression capability
- Connection by screw clamp terminals
- DIN rail or panel mounting
- Auxiliary Contact
- 1 NO
- Colour
- Dark Grey
- Current Rating Ac1
- 25A
- Current Rating Ac3
- 9A
- Depth
- 77mm
- Dimensions
- (H)86 mm x (W)45 mm x (D)77 mm
- Frequency
- 50/60 Hz
- Guarantee
- 1 Year
- Height
- 86mm
- Ip Rating
- IP20
- Mounting
- DIN Rail / Panel
- Number Of Poles
- 3 Pole
- Packaging Types
- Each
- Product Range
- AF
- Standards
- IEC 60947-1 IEC 60947-4-1
- Type
- Contactor
- Voltage Rating
- 690V AC
- Weight
- 0.275kg
- Width
- 45mm
