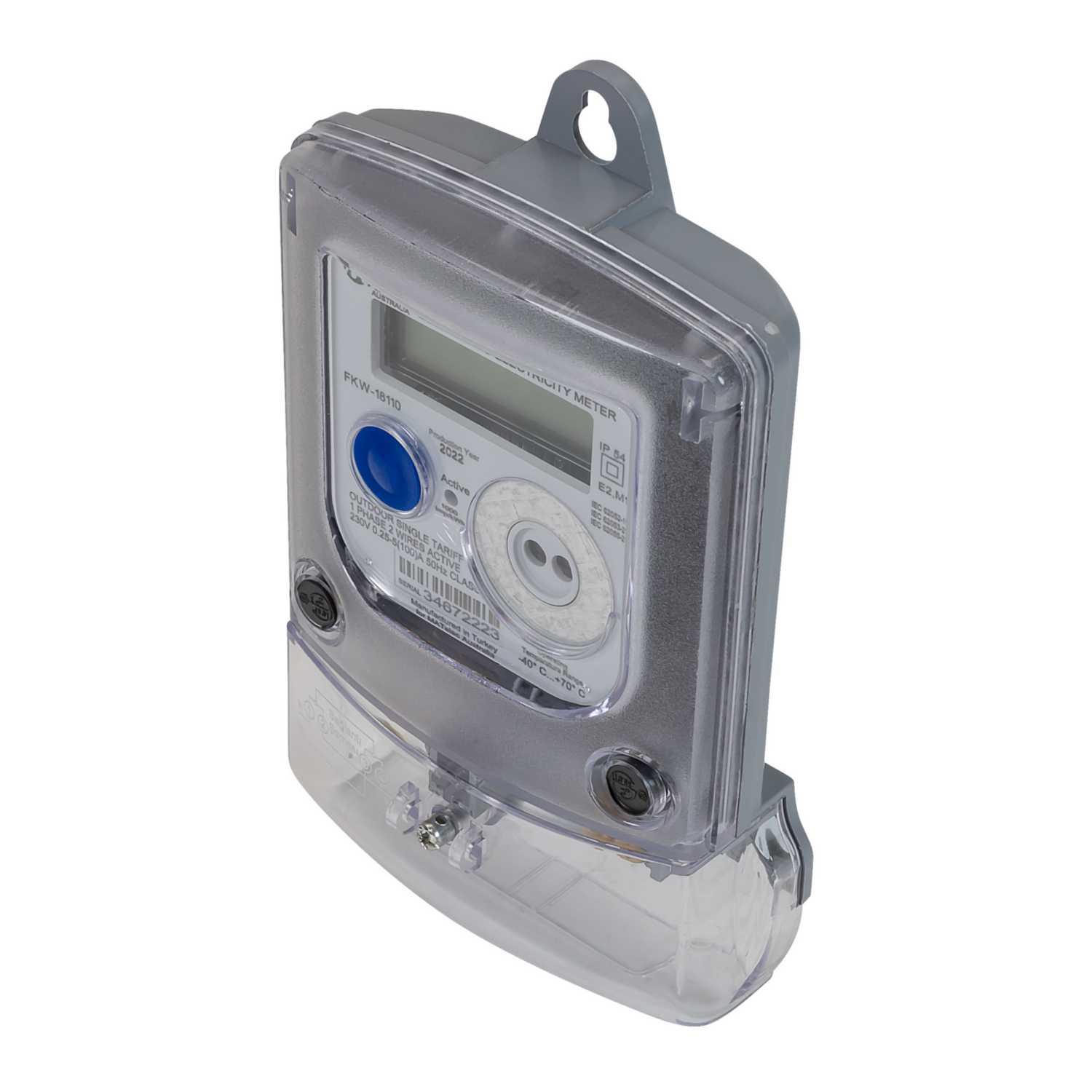

Matelec 100A 1 Phase Surface Mount Kilowatt Hour Meter
Part Number: FKW-18110
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- For single phase direct metering
- Heavy duty design
- Suitable for industrial properties and industrial equipment metering
- 1 year warranty
- 10- year battery back up
- IP54 rated
- Note - Not suitable for solar applications
- Accuracy
- Class 1
- Cable Capacity
- 25mm²
- Colour
- Grey
- Compliance
- IEC62052-11, IEC62053-21
- Current Rating
- 100A
- Depth
- 42mm
- Dimensions
- (H)186 mm x (W)115 mm x (D)42 mm
- Display Type
- Backlit LCD
- Frequency
- 50 Hz
- Guarantee
- 1 Year
- Height
- 186mm
- Material
- Plastic
- Maximum Current
- 100A
- Mounting
- Surface
- Number Of Phases
- 1
- Operating Temperature Range
- -40 - +70°C
- Packaging Types
- Each
- Product Range
- FKW
- Standards
- IEC62052-11 IEC62053-21
- Terminal Capacity
- 25mm²
- Type
- Energy Meter
- Voltage Rating
- 230V AC
- Weight
- 0.252kg
- Width
- 115mm
