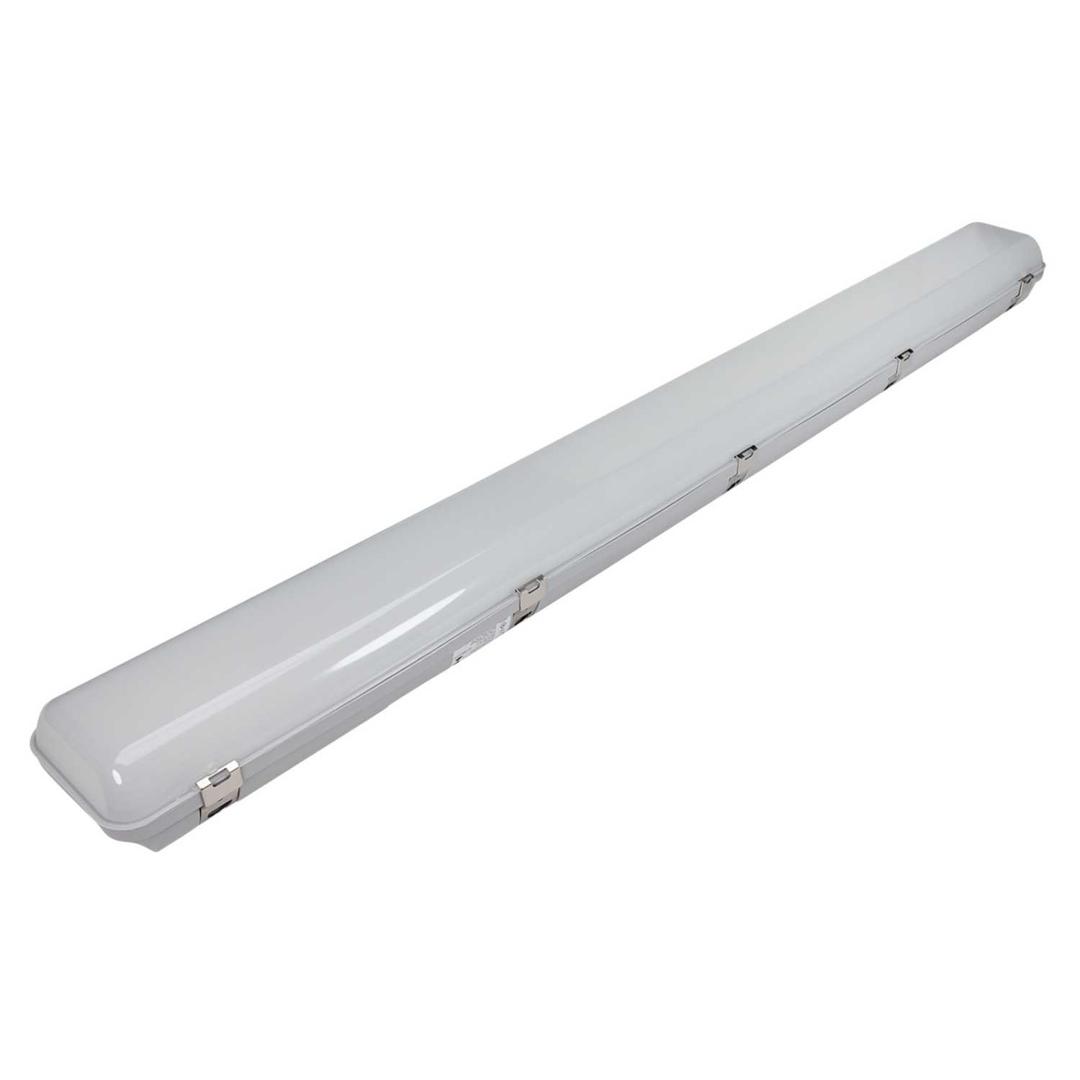

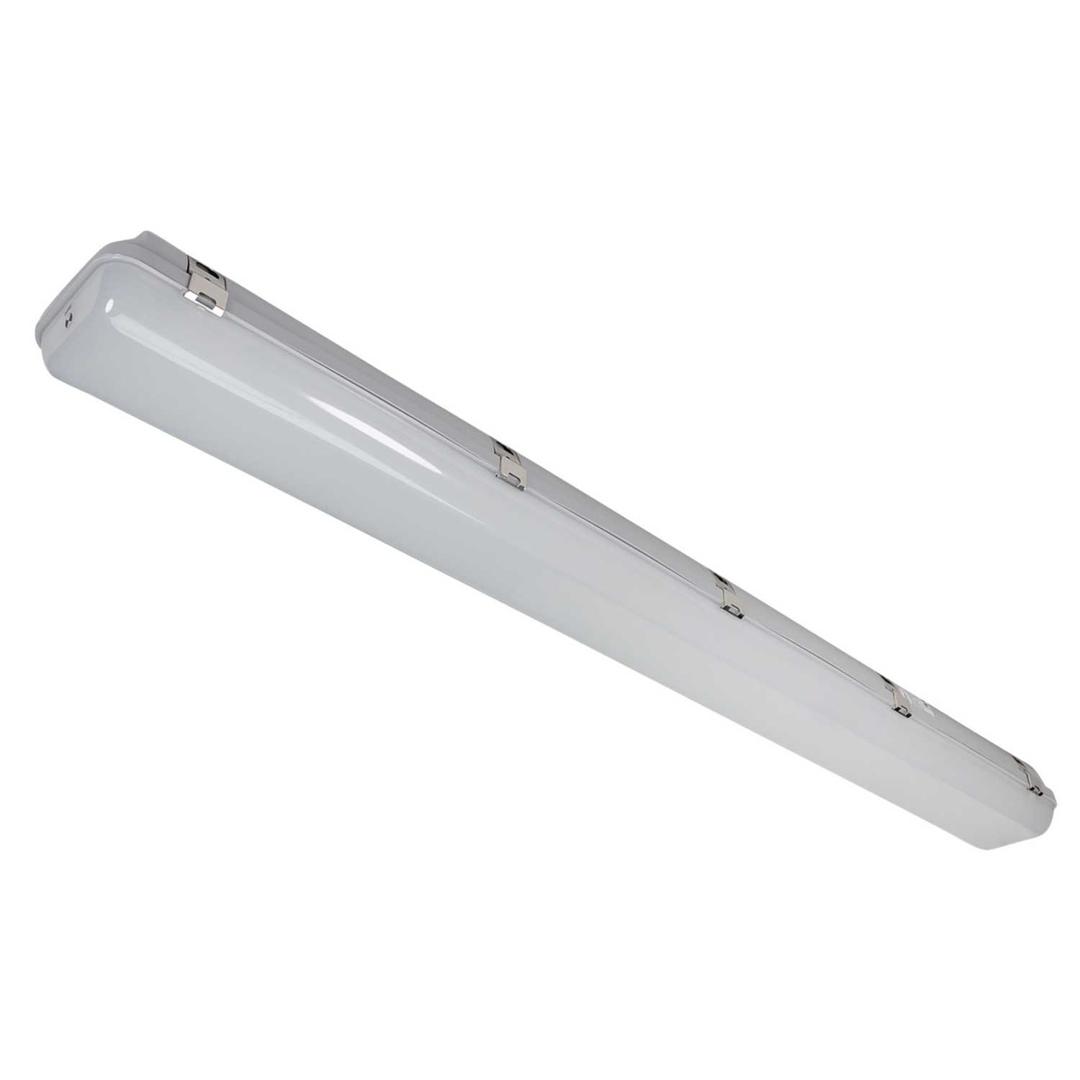

Ektor UMBRA PROFESSIONAL 30W 4000k 1200mm Emergency LED Batten with Sensor IP65 Grey
Part Number: 12095
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- Smartest and most feature inclusive batten on the market, provides long life and unrivalled control
- Flicker-free dimming throughout the dimming range which allows light level adjustment to gain maximum power savings
- IP65 weatherproof rating and IK08 impact rating
- LED lifetime 102,000 hours (L70), 102,000 hours (L80) and 55,000 hours (L90)
- Full support for DALI and DALI-2 (IEC 62386) DT6 (LED)
- Emergency models fully compliant (AS/NZS 2293.3) and supports DALI DT1 (EM)
- Soft-start battery charger to reduce building load, allowing the building to stabilise before adding additional load
- Power monitoring (DT51) allows control systems to monitor and report active power and total power consumption
- Built-in DALI-2 switch can be used for standalone control or unlimited control with DALI-2 compliant control systems
- Ambient Temperature
- 0-40°C
- Battery Type
- Lithium Iron Phosphate (LiFePO4)
- Class Type
- Class 1
- Colour
- Grey
- Colour Temperature
- 4000 K
- Depth
- 93mm
- Detection Range
- 10m
- Dimensions
- (L)1260 mm x (W)130 mm x (D)93 mm
- Dimmable
- Yes
- Emergency
- Yes
- Emergency Duration
- 90 Mins
- Emergency Type
- Maintained
- Guarantee
- 5 Years
- IP Rating
- IP65
- Ik Rating
- IK08
- Lamp Life
- 50000h
- Lamp Type
- Integrated LED
- Length
- 1260mm
- Lumens Output
- 4100lm
- Material
- Polycarbonate
- Mounting
- Surface
- Online Search Priority
- 1
- Packaging Types
- Each
- Power Rating
- 30W
- Product Range
- UMBRA Professional
- Sensor
- Microwave
- Standards
- AS/NZS 60598.1 AS 60598.2.22 AS/NZS 61347.1 AS/NZS 61347.2.13 AS CISPR 15 AS/NZS 2293.3 AS/NZS 4268 IEC 62386-102 IEC 62386-103
- Suitable For
- Indoor and outdoor use
- Timer Adjustment
- 5s-14mins
- Type
- Emergency Batten
- Unspsc V18
- 39111544
- Unspsc V24
- 39111544
- Voltage Rating
- 230V AC
- Weight
- 2.549kg
- Width
- 130mm
