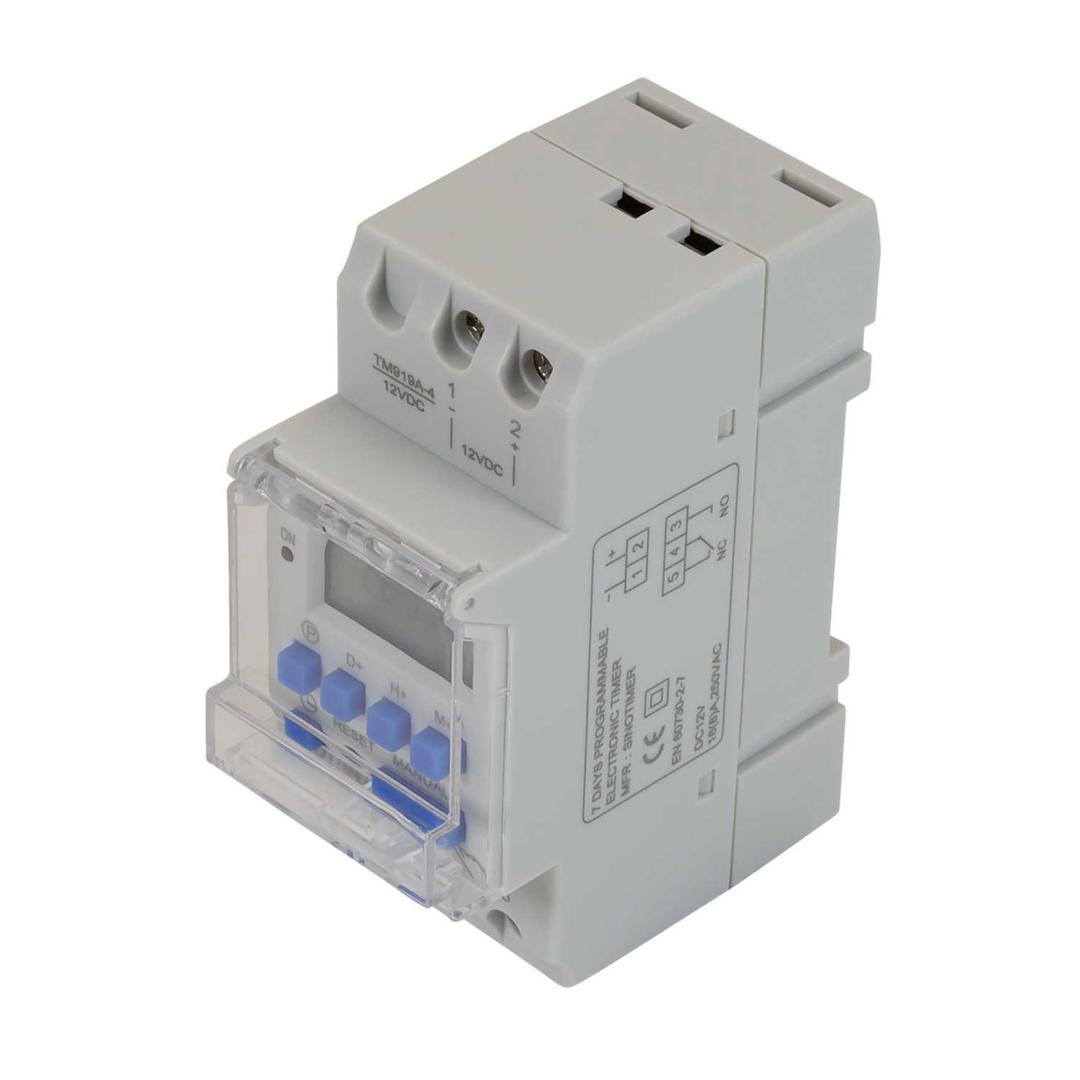

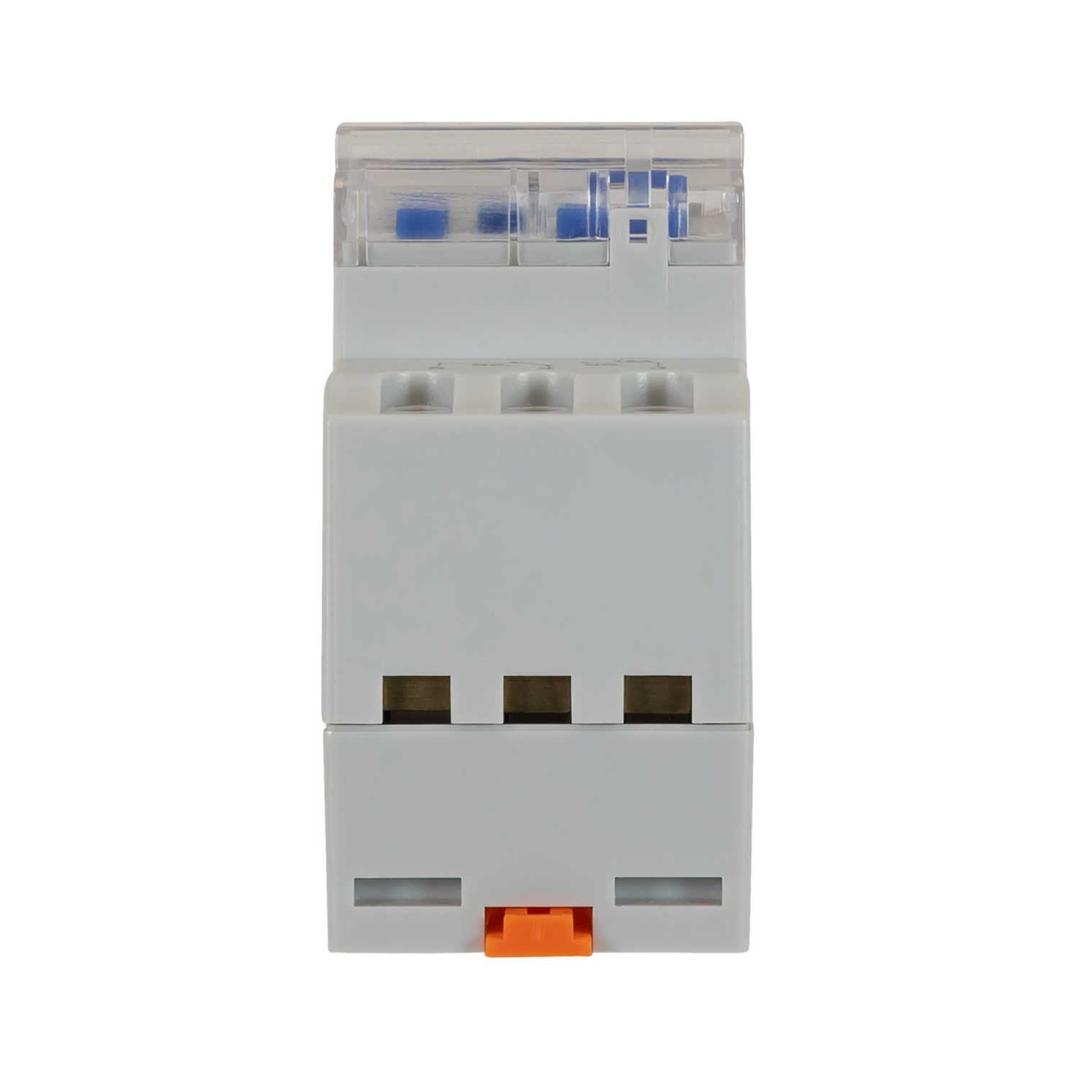

Matelec 12V AC/DC 7 Day Digital Time Clock
Part Number: TIMER-7D/D-12V
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- Simple programming functionality
- Compact slimline design
- Transparent display flap for added protection
- Manual override feature
- Currant rating resistive 16A, inductive 8A
- Relay outputs: common - NO, NC
- Backup battery: lithium (90 day standby capability)
- Battery Back Up
- Yes
- Colour
- Grey
- Current Rating
- 16A
- Current Rating Inductive
- 8A
- Frequency
- 50 Hz
- Guarantee
- 1 Year
- Manual Override
- Yes
- Material
- Plastic
- Minimum Switching Time
- 1min
- Mounting
- DIN Rail
- Number Of Modules
- 2
- Number Of On Offs
- 28
- Operating Temperature Range
- -10 - +50°C
- Packaging Types
- Each
- Product Range
- Econo
- Programmable
- Yes
- Type
- 7 Day Time Clock
- Unspsc V18
- 39122208
- Unspsc V24
- 39122208
- Voltage Rating
- 12
- Weight
- 0.111kg
