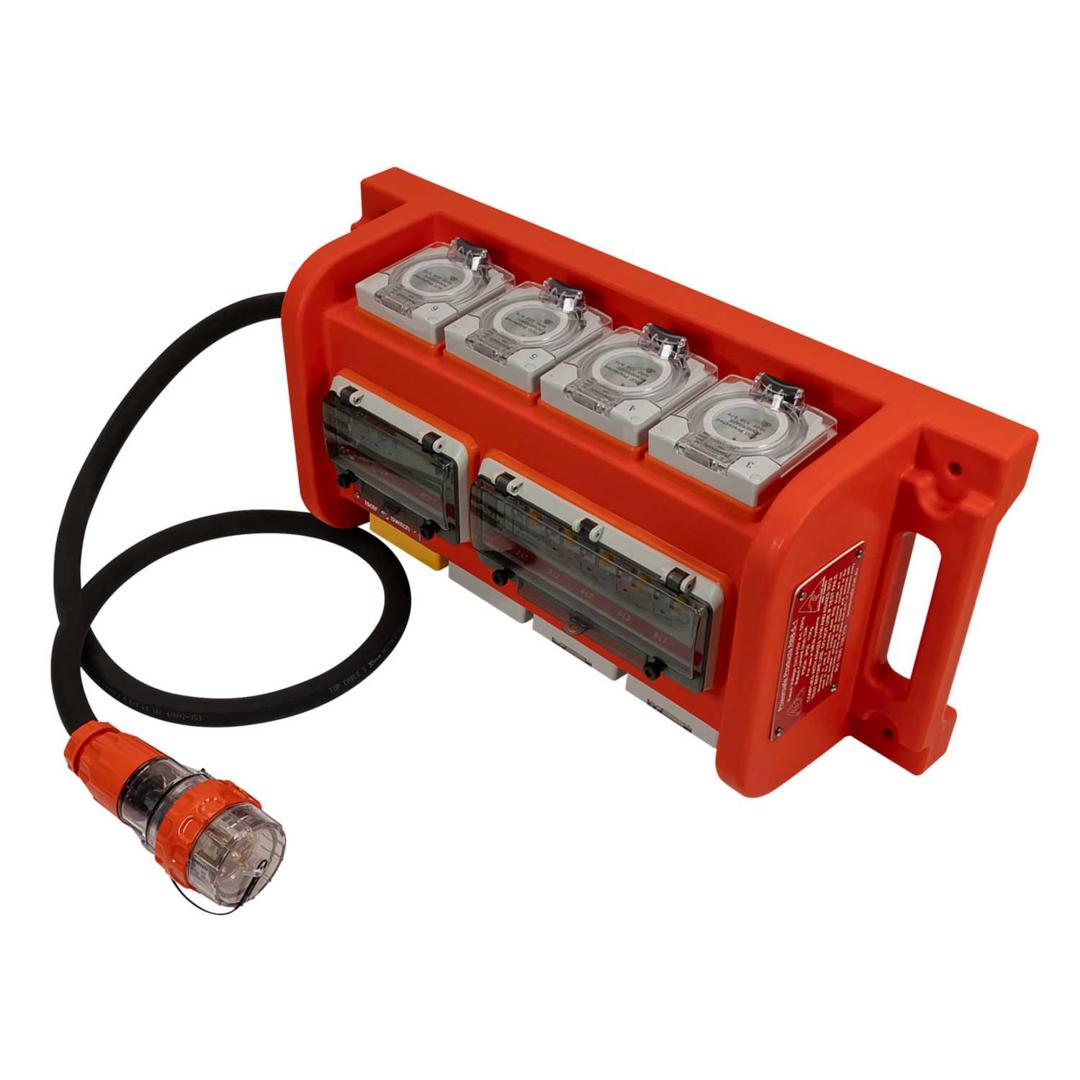

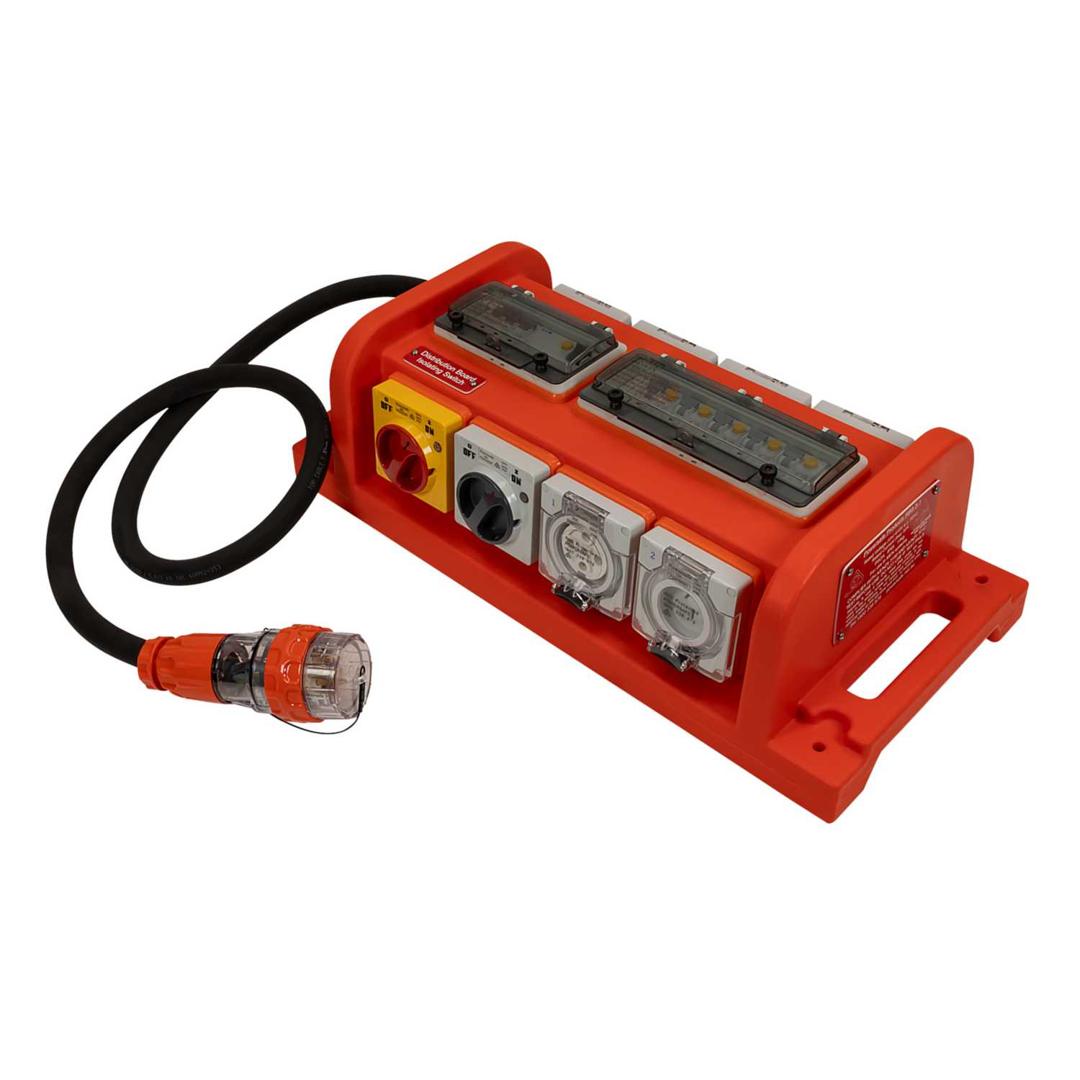

Powersafe 32A 6 Way RCBO Portable Socket Outlet Assembly IP55
Part Number: RB8-5-1
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- Portable power distribution board converting 3 phase power down to 240V AC single phase power
- Each outlet is individually RCD protected, allowing other outlets to remain on when one outlet has a fault to earth
- Australian Certified PSOA (AS3012, AA3190) for construction and event sites
- 1 x 1.8m rubber flex lead with 32A 415V 5 pin IP66 plug
- 1 x 32amp 3 pole rotary on/off switch
- 1 x 32A switched 5 pin socket outlet IP66
- 5 x 15amp 240V IP66 auto switched outlets
- 1 x 32A 3 pole main MCB 10kA
- 1 x 40A 4 pole RCD 30mA
- 5 x 16amp 2 pole 10kA 30mA RCD/MCB combos
- IP66 breather drain
- Colour
- Orange
- Current Rating
- 32A
- Depth
- 300mm
- Dimensions
- (H)195 mm x (W)640 mm x (D)300 mm
- Guarantee
- 1 Year
- Height
- 195mm
- Ip Rating
- IP55
- Material
- V5 Polyethylene
- Packaging Types
- Each
- Product Range
- Portable Power Boards
- Standards
- AS/NZS61439.4 AS/NZS3012 AS/NZS3002
- Type
- Portable Powerboard
- Unspsc V18
- 39121105
- Unspsc V24
- 39121105
- Voltage Rating
- 415V AC
- Weight
- 11kg
- Width
- 640mm
