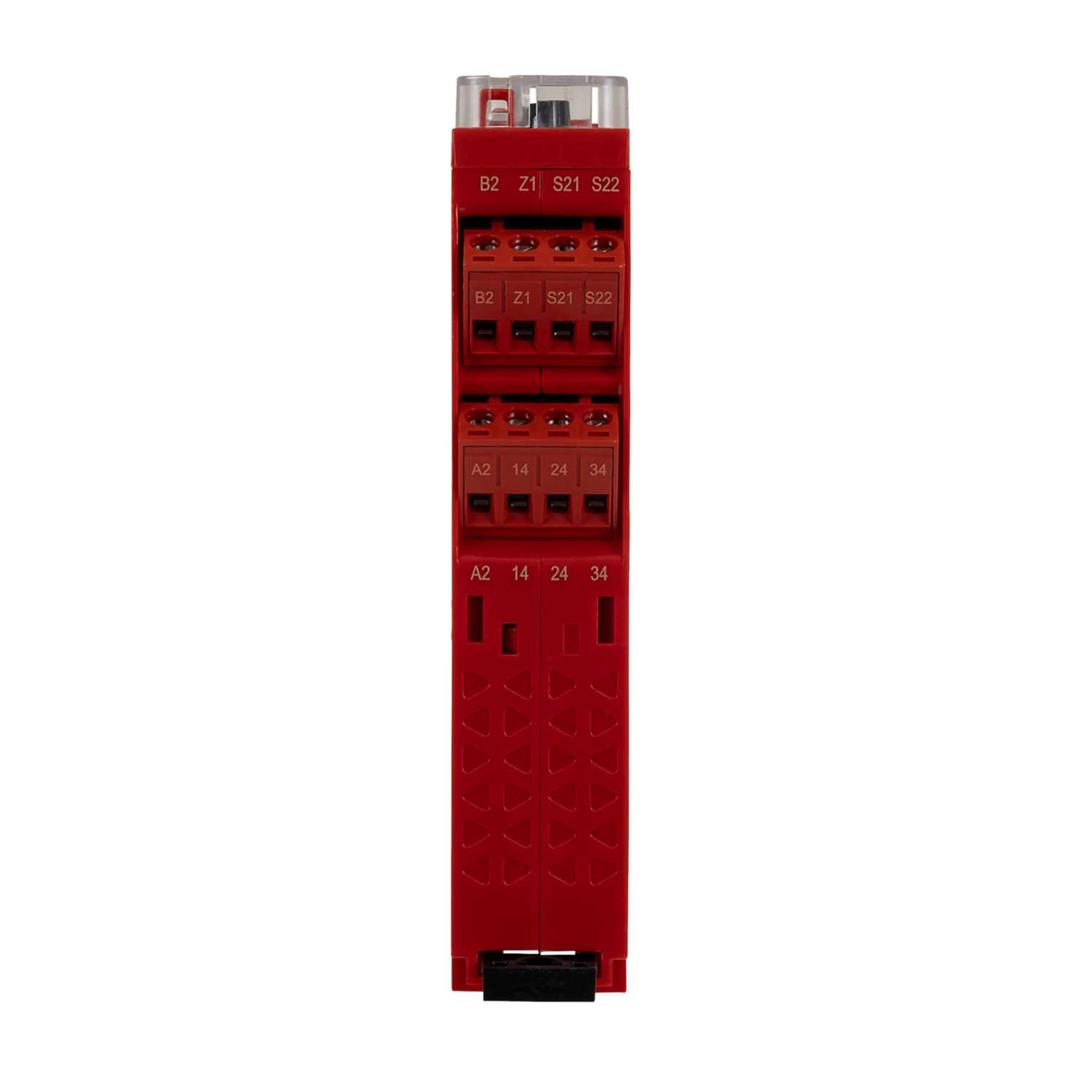

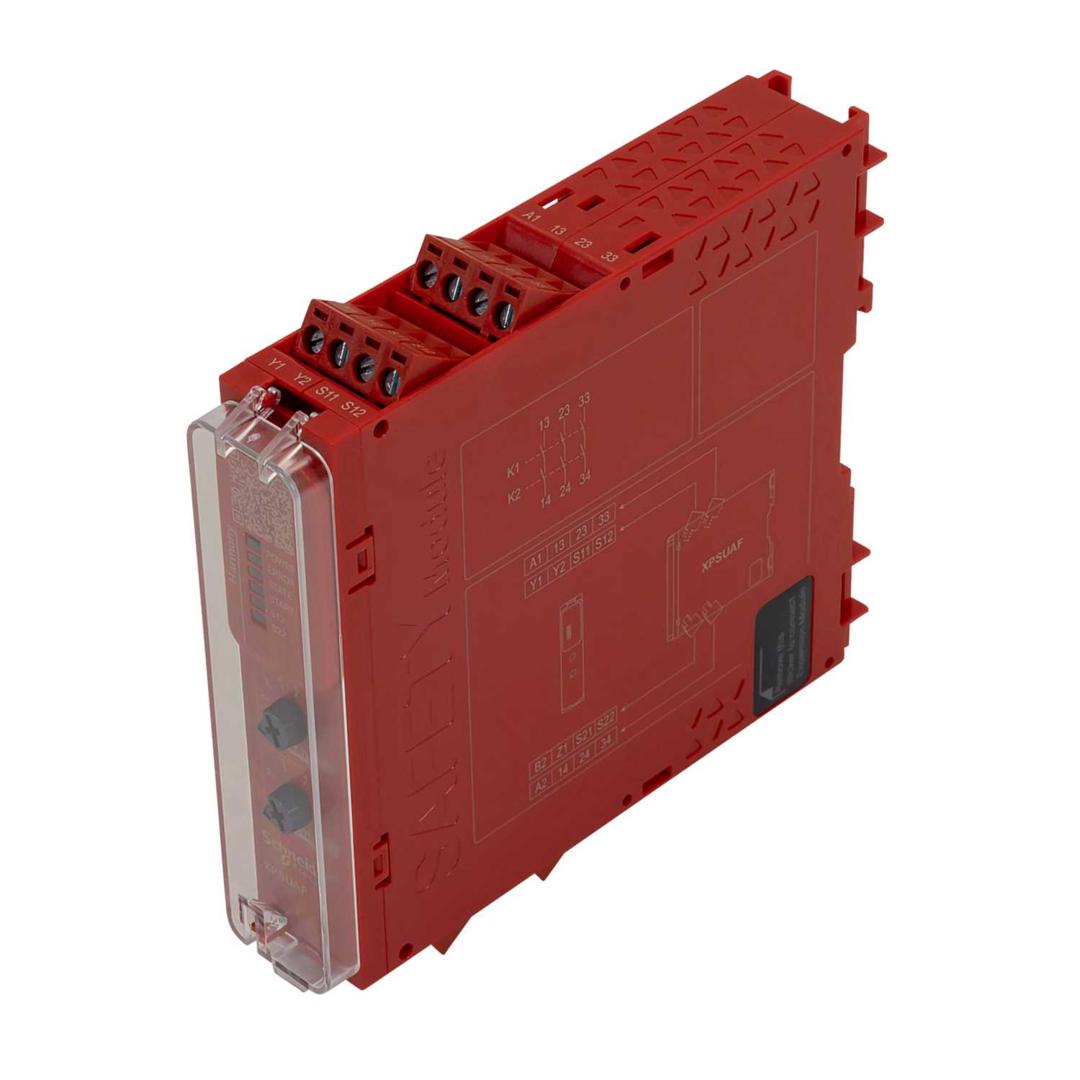

Schneider Harmony XPSUAF 24V AC/DC Cat4 Safety Module Red
Part Number: XPSUAF13AP
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- This safety relay is designed for monitoring emergency stop, guard switch, magnetic switch, proximity safety switch, PNP sensor, RFID safety switch or safety light curtain
- 24V AC/DC
- This safety relay embeds 2 safety inputs, 3 ON/OFF configurable pulsed outputs, 3 NO safety outputs, and 1 solid state diagnostic output with complete status information
- More than 40 different diagnostic messages, without additional fieldbus interface
- Colour
- Red
- Depth
- 120mm
- Dimensions
- (H)100 mm x (W)22.5 mm x (D)120 mm
- Frequency
- 50 Hz
- Guarantee
- 18 Months
- Height
- 100mm
- Ip Rating
- IP20
- Material
- Plastic
- Mounting
- DIN Rail
- Operating Temperature Range
- -25-55°C
- Operation Type
- Wired
- Packaging Types
- Each
- Product Range
- Harmony XPS
- Standards
- IEC 60947-5-1 IEC 61508-1 IEC 61508-2 IEC 61508-3 IEC 61508-4 IEC 61508-5 IEC 61508-6 IEC 61508-7 ISO 13849-1 IEC 62061
- Suitable For
- Industrial Environments
- Type
- Safety Relay
- Unspsc V18
- 39122205
- Unspsc V24
- 39122205
- Voltage Rating
- 24
- Weight
- 0.283kg
- Width
- 22.5mm
