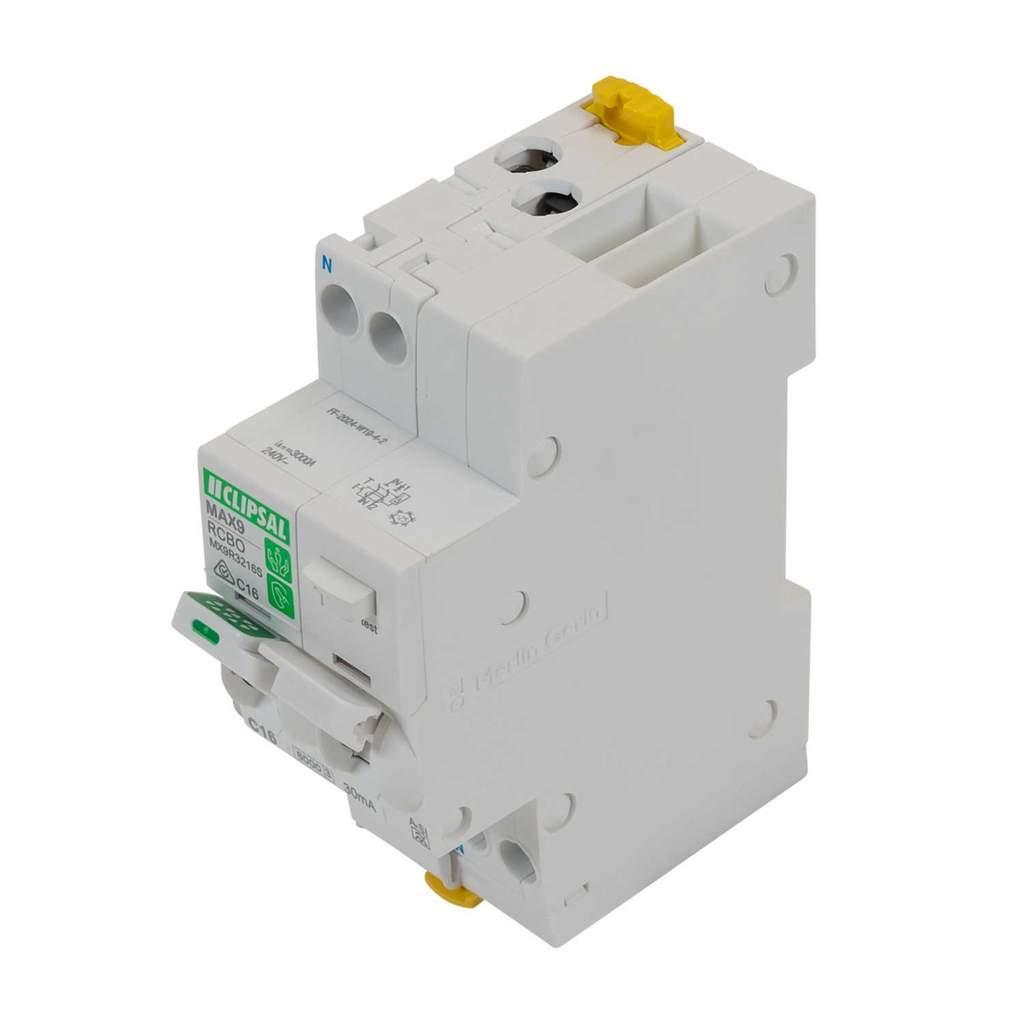

Clipsal 16A A-SI Type 1 Pole and Neutral 6kA 30mA C Curve SI MAX9 RCBO
Part Number: MX9R3216S
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- Combines the overcurrent functions of an MCB with the earth fault functions of an RCD
- Two module device
- Type A RCD to sense AC as well as pulsating DC currents
- Breaks both phase and neutral conductors
- Earth fault indicator
- Inbuilt test switch
- The SI (Super Immune) range of RCDs helps to reduce nuisance tripping caused by earth leakage currents below 30mA threshold
- Useful in high dependency installations
- Colour
- White/Green
- Current Rating
- 16A
- Depth
- 75mm
- Dimensions
- (H)91 mm x (W)36 mm x (D)75 mm
- Frequency
- 50/60 Hz
- Guarantee
- 7 Years
- Height
- 91mm
- IP Rating
- IP20
- Material
- Plastic
- Mounting
- DIN Rail
- Number Of Modules
- 2
- Number Of Poles
- 1P N
- Packaging Types
- Each
- Product Range
- MAX9
- Rcd Type
- A
- Short Circuit Rating
- 6kA
- Standards
- IEC 61009-2-2 EN/IEC 61009-1 AS/NZS 61009.1
- Tripping Characteristics
- C Curve
- Tripping Sensitivity
- 30mA
- Type
- RCBO
- Unspsc V18
- 39121601
- Unspsc V24
- 39121601
- Voltage Rating
- 240V AC
- Weight
- 0.222kg
- Width
- 36mm
