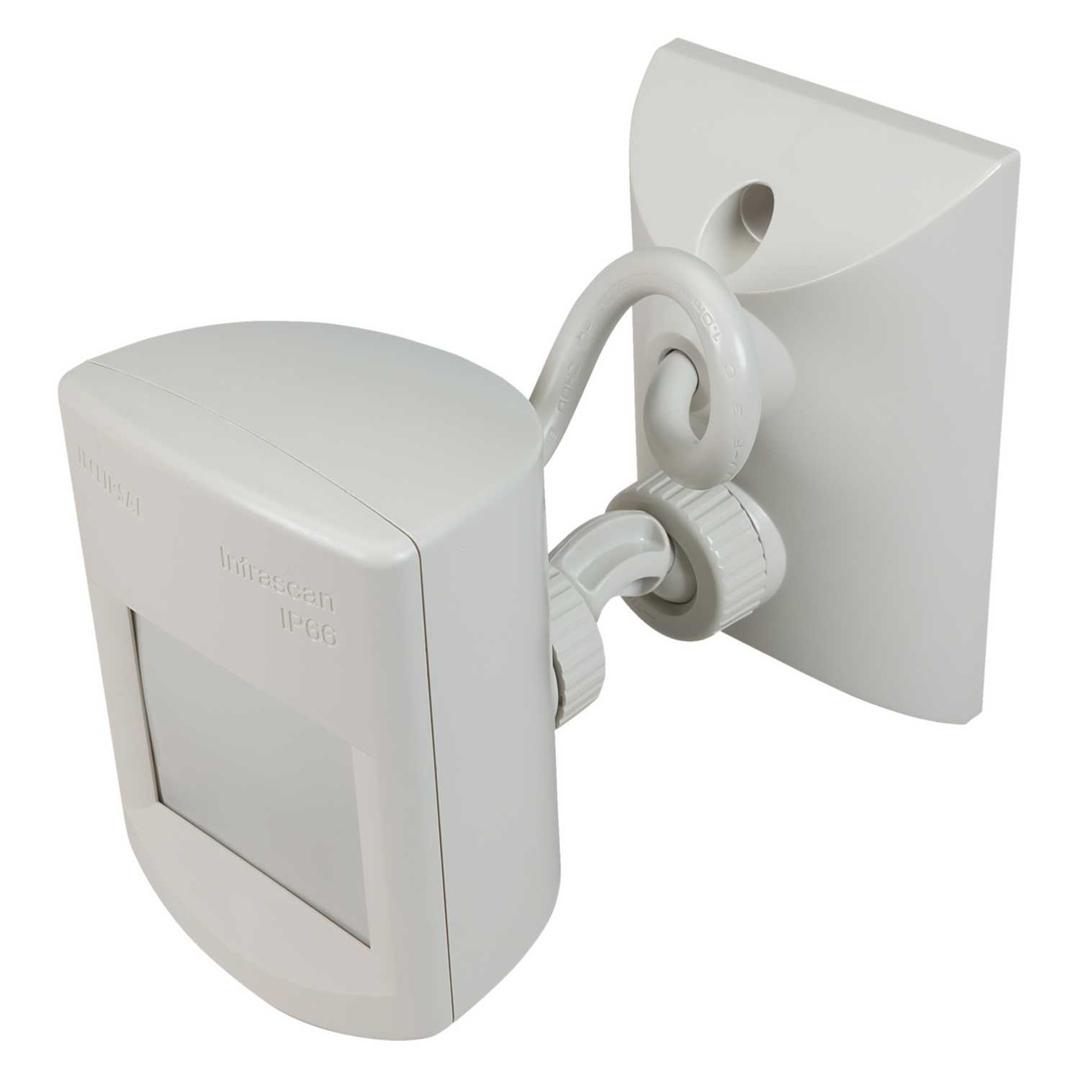

Clipsal 10A 3 Wire Weatherproof Infrascan Sensor Grey
Part Number: 750WPR5-GY
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- External passive infrared movement sensor
- Detects movement up to 18m at 110 degrees

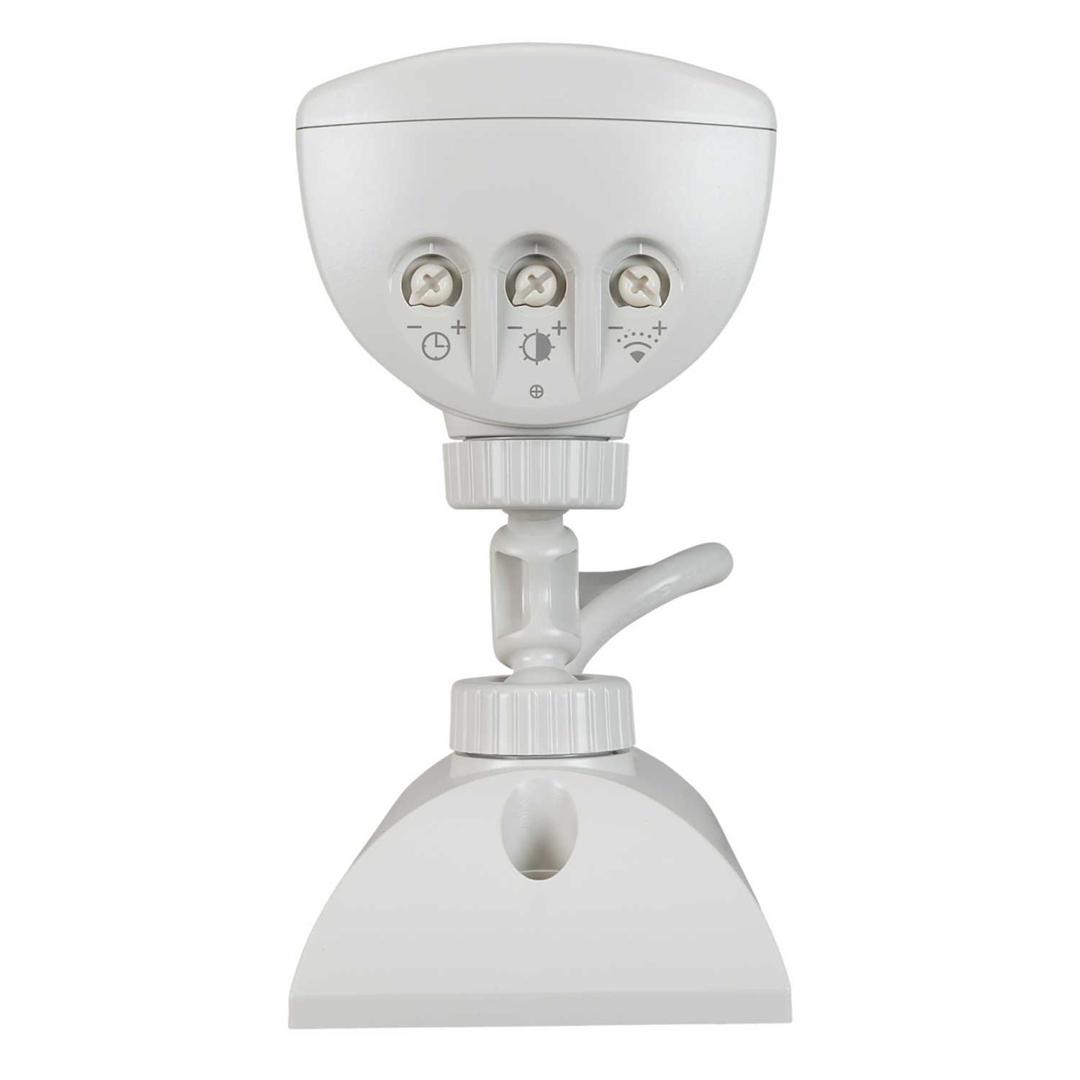

- Adjustable sensitivity, lux level and time delay, for control of LED or other lighting loads
- Manual override option allows for timing feature to be disabled for 8 hours
- UV protected, IP66 housing
- Compatible load types: LED 300W, fluorescent 2400VA, incandescent 2400W
- Colour
- Grey
- Depth
- 145mm
- Detection Range
- 110°
- Dimensions
- (H)115 mm x (W)79 mm x (D)145 mm
- Guarantee
- 5 Years
- Height
- 115mm
- Ip Rating
- IP66
- Material
- Plastic
- Mounting
- Surface
- Mounting Height
- 2.4m
- Packaging Types
- Each
- Product Range
- Infrascan
- Sensing Distance
- 18m
- Sensor Type
- PIR
- Standards
- AS 60669.2.1
- Suitable For
- Outdoor Use
- Type
- Motion Sensor
- Unspsc V18
- 46171619
- Unspsc V24
- 46171619
- Voltage Rating
- 240V AC
- Weight
- 0.25kg
- Width
- 79mm
