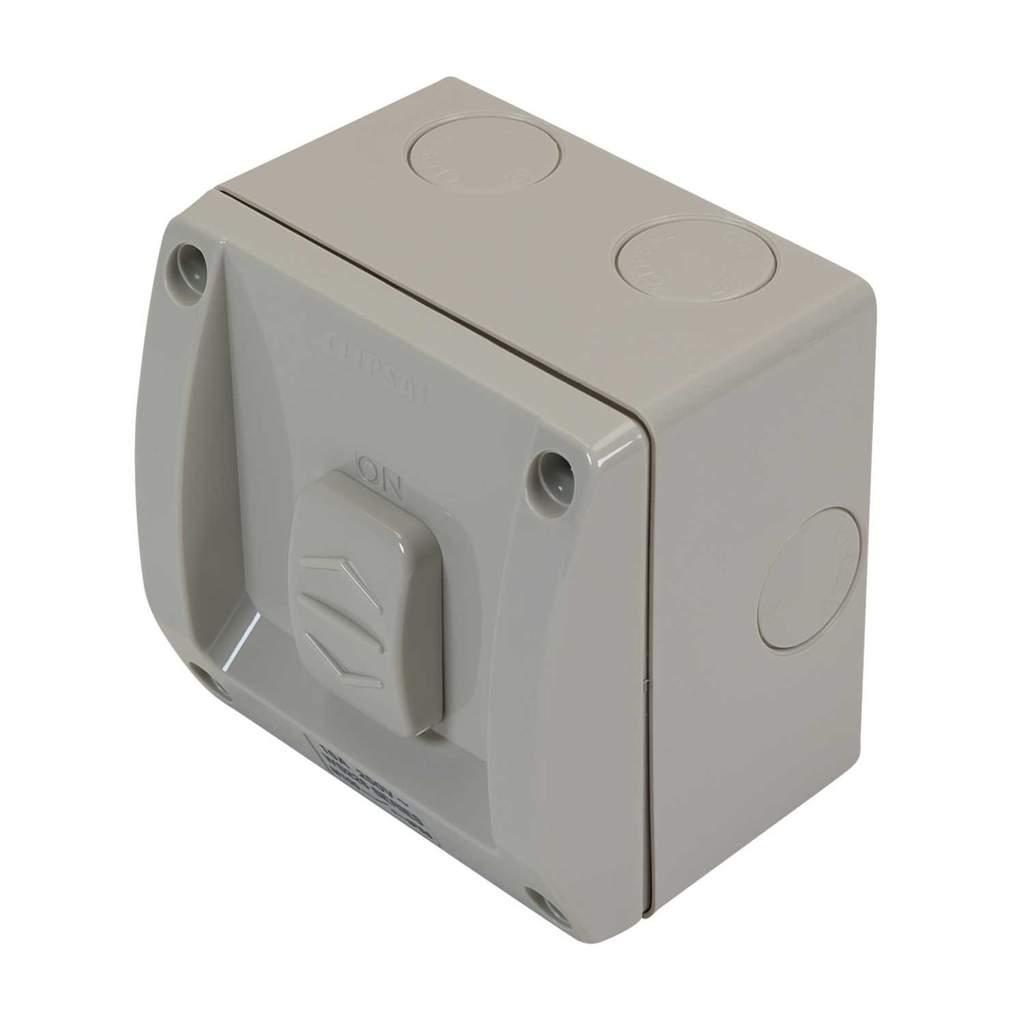

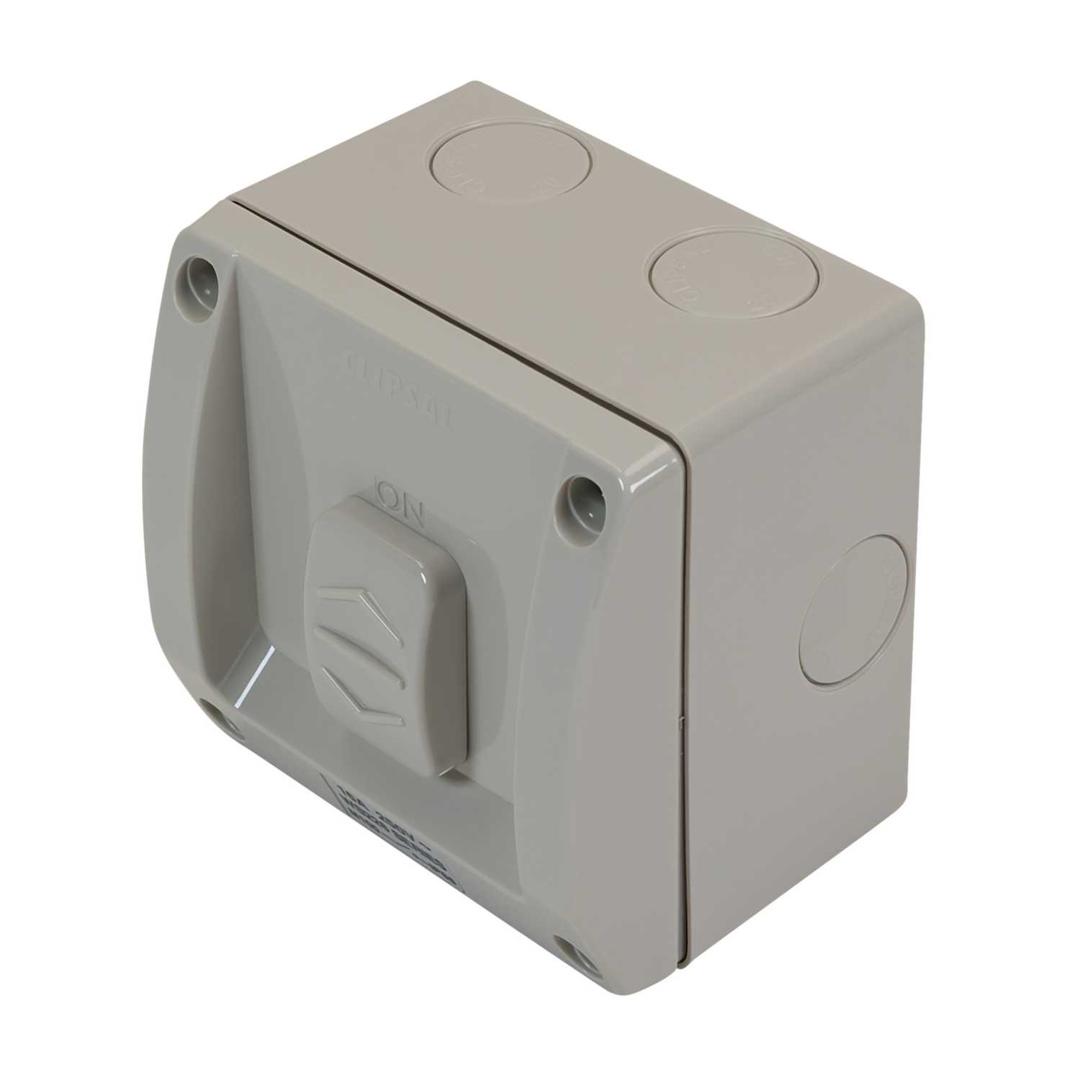

Clipsal 1 Gang DP Switch IP66 20A Weathershield Resistant Grey
Part Number: WS226D-RG
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- Single exterior switch
- Surface mounted lighting switch designed to be installed outdoors
- Double pole switching
- 16A rated for fluorescent and inductive loads
- Weatherproof rating of IP66
- Resistant to colour fading, corrosion and impact
- Colour
- Grey
- Current Rating
- 20A
- Depth
- 64mm
- Dimensions
- (H)87 mm x (W)87 mm x (D)64 mm
- Frequency
- 50 Hz
- Guarantee
- 1 Year
- Height
- 87mm
- Ip Rating
- IP66
- Material
- Plastic
- Mounting
- Surface
- Number Of Gangs
- 1
- Number Of Poles
- 2 Pole
- Packaging Types
- Each
- Product Range
- Weathershield
- Shape
- Square
- Standards
- AS/NZS 3133 AS 60529 IEC 60669-1
- Type
- Weatherproof Switch
- Unspsc V18
- 39122226
- Unspsc V24
- 39122226
- Voltage Rating
- 250V AC
- Weight
- 0.201kg
- Width
- 87mm
