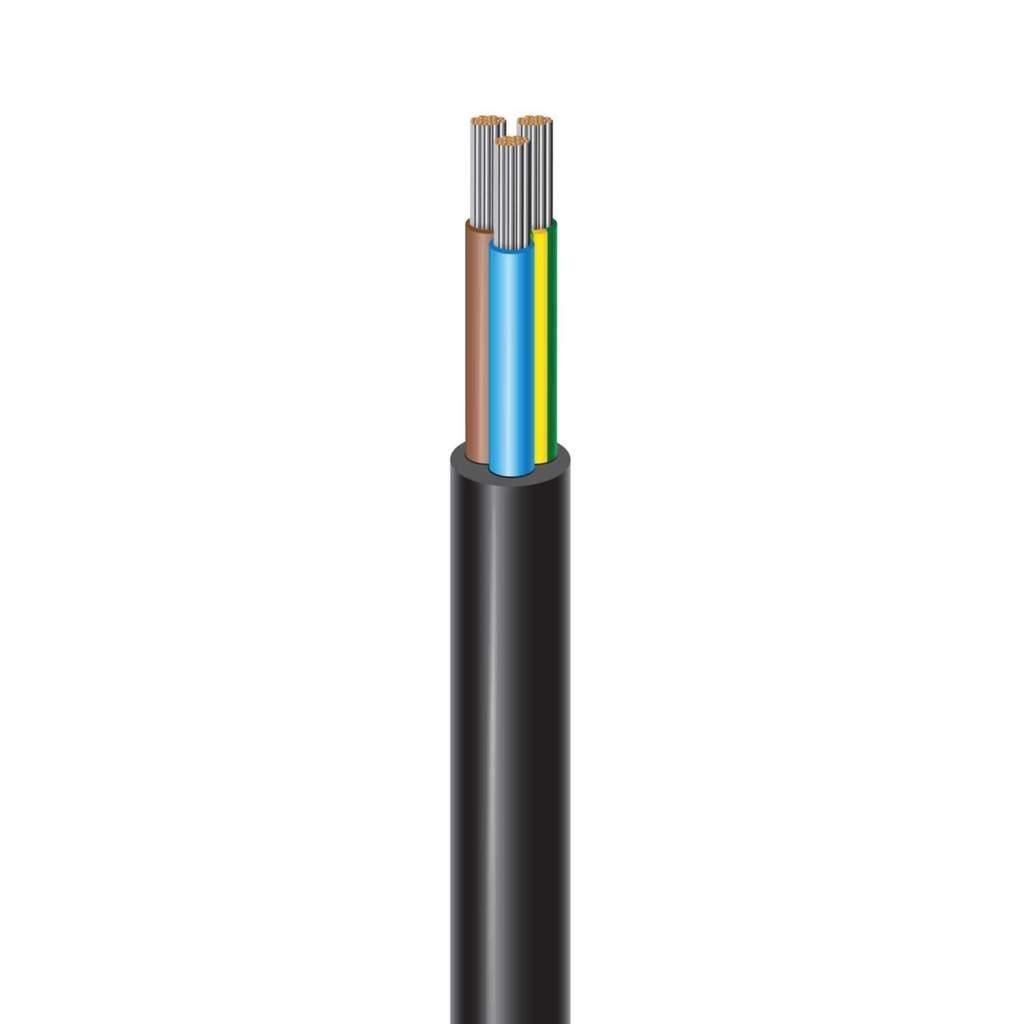

Elcon 1.5mm² 3 Core Heavy Duty Rubber Flexible Cable Black (100m Drum)
Part Number: FMR3G1.5BM
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- Used for event and temporary cabling, fairgrounds, sporting venues, flexible connections to motors, generators, compressors, construction site leads, mine sites and quarries, wet or oily environments, submersible pumps and limit switches
- UV, sunlight, oil and weather resistant
- Suitable for fresh water, salt water, sewage/contaminated water, submersible to 200mtrs
- Class 5 tinned copper
- Ethylene-propolene rubber insulation
- Flame retardant to IEC 60332-1-2:2004, EN60332-1-2-2004
- Core colours - blue, brown, green/yellow
- Colour
- Black
- Conductor Class
- 5
- Conductor Size
- 1.5mm²
- Core Colours
- Blue, Brown, and Green/Yellow
- Current Rating
- 20A
- Dimensions
- (L)100 m
- External Diameter
- 10.3mm
- Finish
- Tinned
- Guarantee
- 1 Year
- Insulation Material
- Ethylene-Propylene Rubber
- Length
- 100m
- Material
- Copper
- Number Of Cores
- 2+E
- Packaging Types
- Drum
- Product Range
- FMR
- Sheath
- Chlorinated Polyethylene
- Sheath Thickness
- 1.6mm
- Standards
- AS/NZS 1125 IEC 60228 AS/NZS 3008.1.1.2009 EN60332-1-2-2004
- Type
- Flexible Cable
- Voltage Rating
- 600V 1000V
- Weight
- 0.158kg
