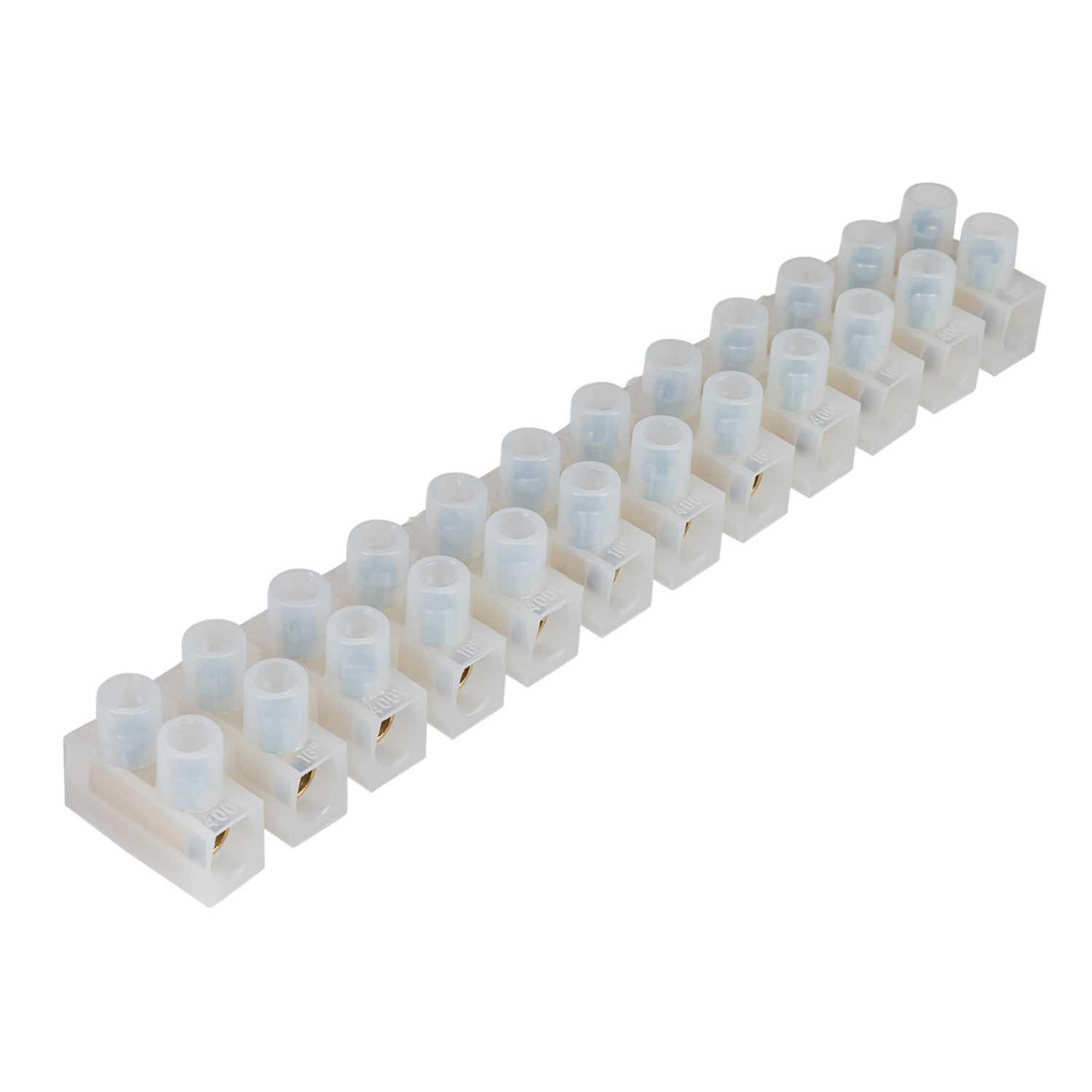

Matelec 30A 12 Way Strip Connector Natural
Part Number: STC-M16/30A
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- 12 pole, 2 way PVC connectors with brass terminals
- Used for joining cables to other cables, giving a secure and insulated joint
- Also suitable for terminating cables
- Can be cut in to individual blocks if required
- Colour
- Natural
- Current Rating
- 30A
- Depth
- 18.5mm
- Dimensions
- (L)166 mm x (W)25.5 mm x (D)18.5 mm
- Guarantee
- 1 Year
- Hole Diameter
- 5.5mm
- Length
- 166mm
- Material
- PVC
- Maximum Operating Temperature
- 90°C
- Packaging Types
- Each
- Product Range
- STC
- Standards
- AS3000
- Terminal Type
- Screw
- Type
- Strip Connectors
- Unspsc V18
- 39121407
- Unspsc V24
- 39121407
- Weight
- 0.071kg
- Width
- 25.5mm
