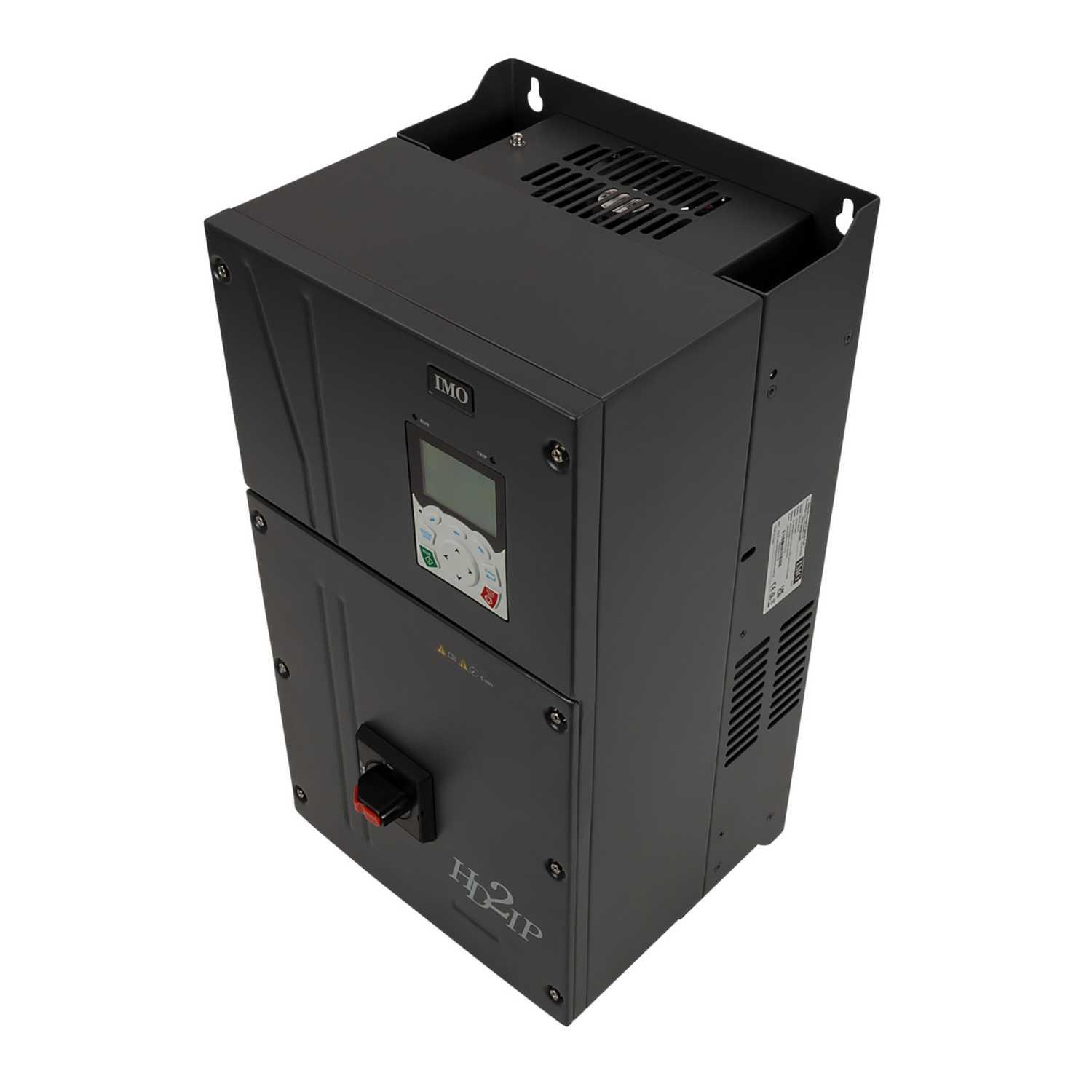

IMO 18.5kW 3 Phase Variable Speed Drive
Part Number: HD2IP-38A-43
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- Torque Vector control
- Up to 200% starting torque
- Constant torque (HD) 18.5kW, 38A Variable torque (ND) 22.0kW, 45A
- Multi pump control function
- Fire mode
- Asynchronous and synchronous motor control
- Permanent magnet motor control
- Built-in AC switch
- Advanced LCD keypad
- Modbus RTU/RS485 built in
- Integral brake chopper (≤37kW)
- Integral DC reactor
- Integral C3 filter
- Colour
- Grey
- Depth
- 279.5mm
- Dimensions
- (H)522 mm x (W)274 mm x (D)279.5 mm
- Frequency
- 50/60 Hz
- Guarantee
- 3 Years
- Height
- 522mm
- IP Rating
- IP55
- Material
- Metal
- Mounting
- Surface
- Number Of Phases
- 3
- Packaging Types
- Each
- Power Rating
- 18.5kW
- Product Range
- HD2IP Series
- Type
- Variable Speed Drive
- Unspsc V18
- 39122002
- Unspsc V24
- 39122002
- Voltage Range
- 380 - 440V AC
- Weight
- 24kg
- Width
- 274mm
