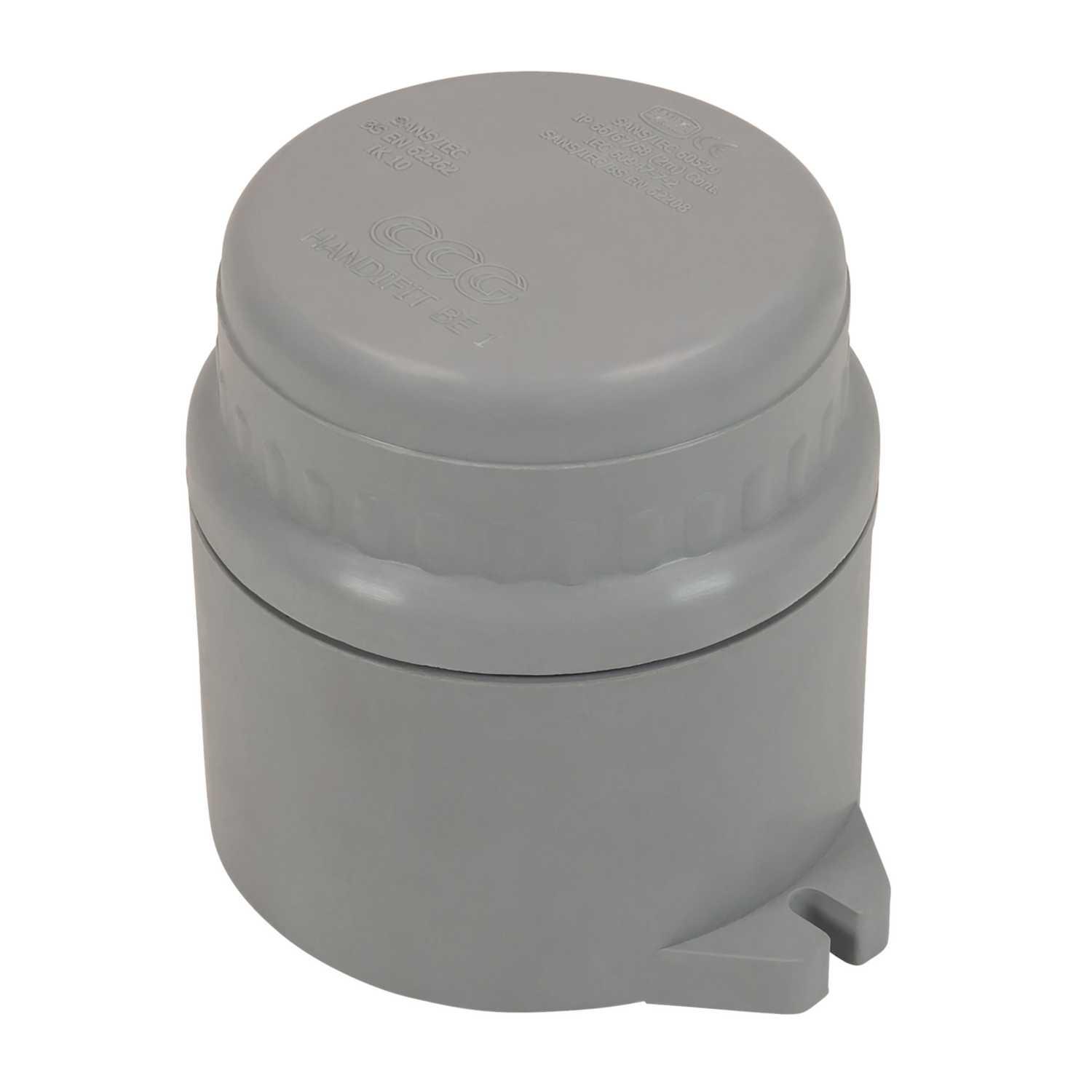

CCG Size 1 3 Way Bottom Entry Junction Box
Part Number: 100201-C6/4-2
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- Screw fit 3 way bottom entry box for general industrial and mining electrical installations
- For use in group I mining (low impact areas), group II and group III applications
- Supplied complete with safety securing lid lanyard
- Raised domed lid facilitates connections to be made outside of the box
- Only approved CCG cable glands and terminals must be used
- No exposed metal parts
- Dust and waterproof to IP66/68, when used with CCG sealed cable glands
- No drilling or tapping of cable entries required
- Mounting studs provided for DIN rail if using terminal blocks
- Internal earthing to all entries and rail provided
- M20 x 1.5mm entry thread
- Colour
- Grey
- Dimensions
- (H)124 mm x (W)132 mm
- Guarantee
- 1 Year
- Height
- 124mm
- Material
- Glass Reinforced Polyester
- Packaging Types
- Each
- Product Range
- Screw Fit
- Standards
- Ex eb I, Ex eb IIC, Ex ec IIC, Ex tb IIIC
- Type
- Junction Box
- Unspsc V18
- 39121332
- Unspsc V24
- 39121332
- Weight
- 1.095kg
- Width
- 132mm
