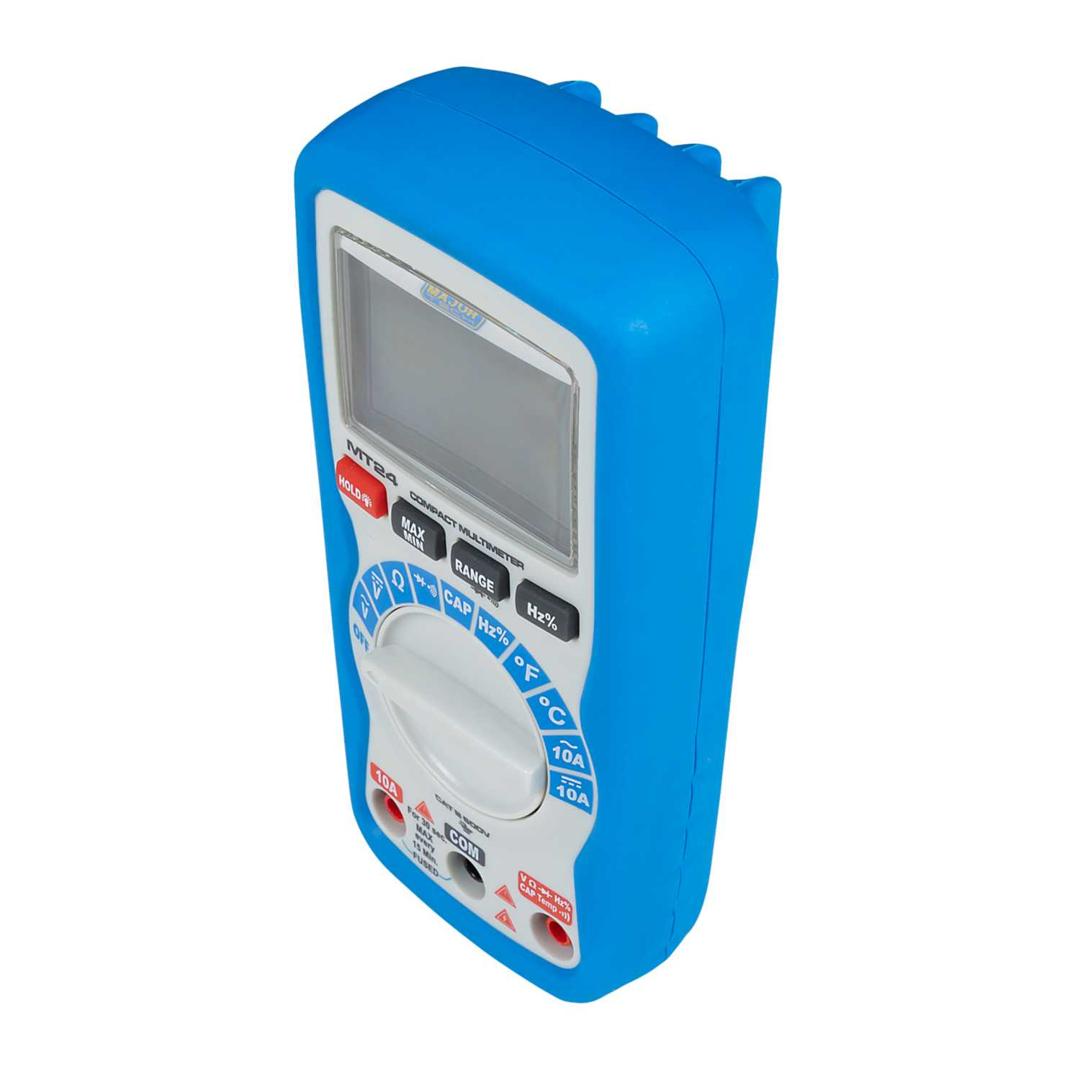

Major Tech 1000V AC/DC Compact Multimeter
Part Number: MT24
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- Measures AC and DC voltage to 1000V
- MIN/MAX recordings
- Auto range with manual override
- Frequency measurement to 10MHz
- Capacitance to 4000μF
- Temperature from -20 to 760°C
- Data hold
- Duty cycle
- 6000 count LCD display with bargraph
- Auto power off
- Overmould rubber housing
- Integrated test lead holder
- Backlight for dimly lit areas
- Ac Current Measurement
- 10A
- Ac Voltage Measurement
- 1000V AC
- Auto Power Down
- Yes
- Auto Ranging
- Yes
- Battery Level Indicator
- Yes
- Battery Size
- 9V
- Battery Type
- Alkaline
- Capacitance Measurement
- 4000µF
- Colour
- Blue/White
- Continuity Check
- Yes
- Dc Current Measurement
- 10A DC
- Dc Voltage Measurement
- 1000V DC
- Depth
- 48mm
- Dimensions
- (H)150 mm x (W)70 mm x (D)48 mm
- Display Count
- 6000
- Display Type
- LCD Display
- Frequency Measurement
- 10 MHz
- Guarantee
- 2 Years
- Height
- 150mm
- Material
- Plastic, Rubber
- Number Of Batteries
- 1
- Packaging Types
- Each
- Product Range
- Instruments
- Resistance
- 600.0 Ω – 60.00 MΩ
- Resistance Measurement
- 600.0 Ω – 60.00 MΩ
- Safety Range
- CAT III 600V and CAT II 1000V
- Standards
- IEC 61010-1
- Supplied With

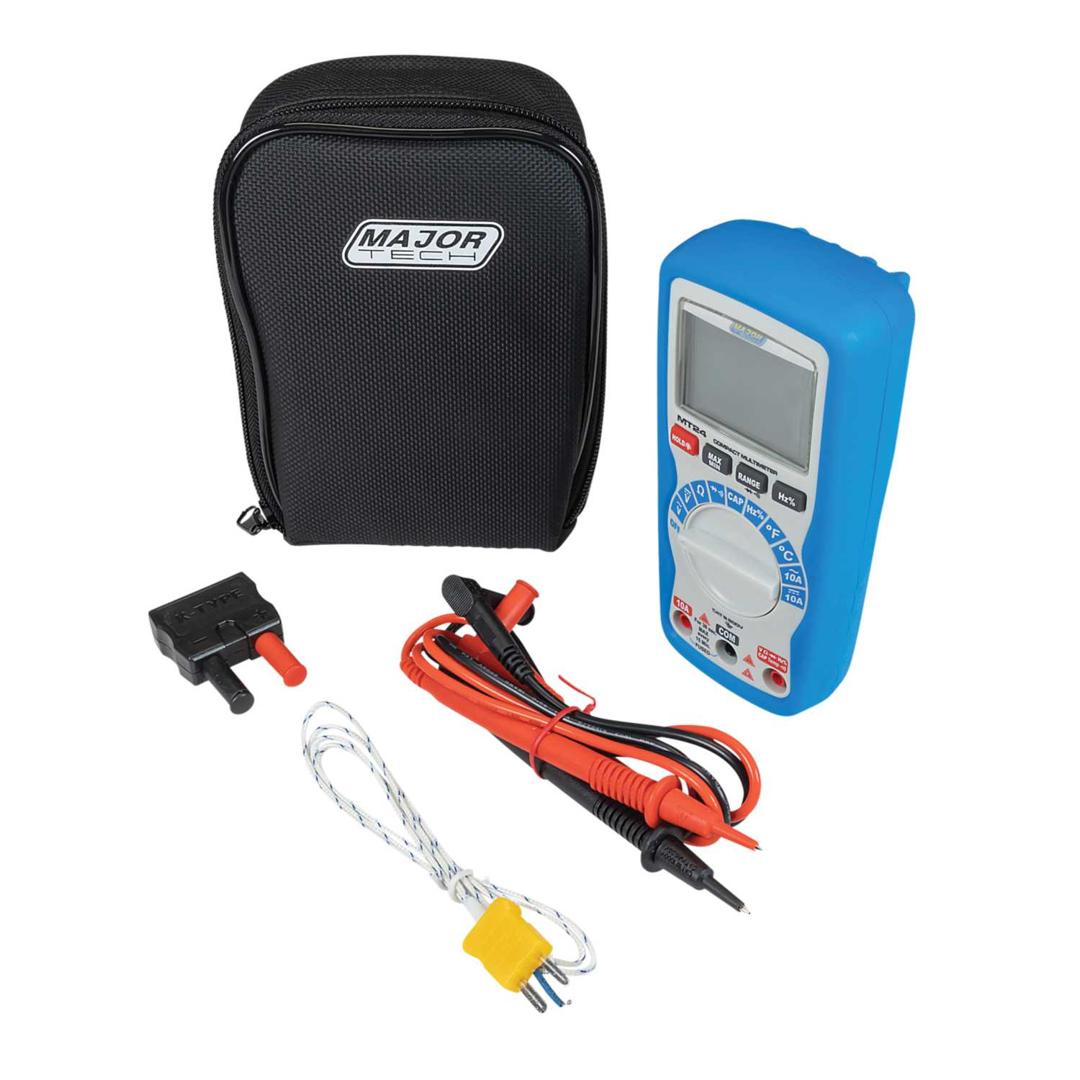

- Type-K Temperature Probe Type-K Adaptor 9V Battery Instruction Manual
- Temperature Range
- -20-760°C
- Type
- Digital Multimeter
- Unspsc V18
- 41113630
- Unspsc V24
- 41113630
- Voltage Rating
- 1000
- Weight
- 0.255kg
- Width
- 70mm
