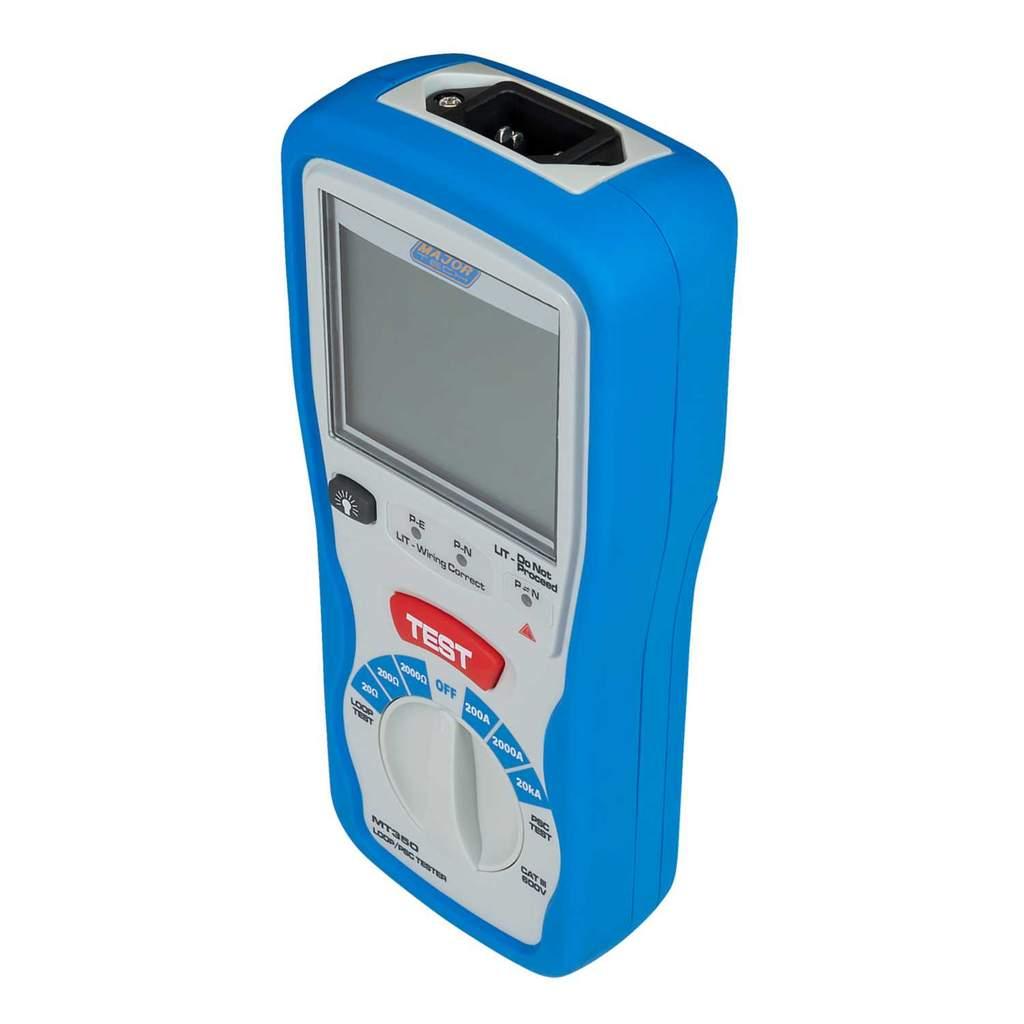

Major Tech Loop Impedance and PSC Tester
Part Number: MT350
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- Handheld loop impedance and PSC tester
- Custom microprocessor controlled for highest accuracy and reliability
- Capable of measurements from any point in the installation for comprehensive testing of distribution systems
- Loop impedance of 2000Ω range measurement is carried out with low test current (15mA)
- Automatic lock out if test resistor overheats
- Direct readout of prospective short circuit current and earth fault current
- Measures low loop impedance of 0.01Ω
- 3 LEDs for checking correct wiring status
- Safe voltage measurement function
- Visual indication of reversed phase and neutral at wiring socket
- Double injection rubber housing
- Battery Level Indicator
- Yes
- Battery Size
- AA
- Battery Type
- Alkaline
- Colour
- Blue/White
- Depth
- 50mm
- Dimensions
- (H)200 mm x (W)92 mm x (D)50 mm
- Display Type
- LCD
- Guarantee
- 2 Years
- Height
- 200mm
- Material
- Plastic, Rubber
- Number Of Batteries
- 6
- Packaging Types
- Each
- Product Range
- Instruments
- Safety Range
- CAT III 600V and CAT II 1000V
- Standards
- IEC 61010-1
- Supplied With
- Carrying Case Distribution Board Test Leads Magnetic Strip Croc Clips Plug Cord with IEC Connectors 6 x AA Batteries Instruction Manual
- Test Current
- 0 - 200 A AC
- Type
- Loop Impedance Tester
- Unspsc V18
- 41113681
- Unspsc V24
- 41113681
- Voltage Rating
- 255V AC
- Weight
- 0.7kg
- Width
- 92mm
