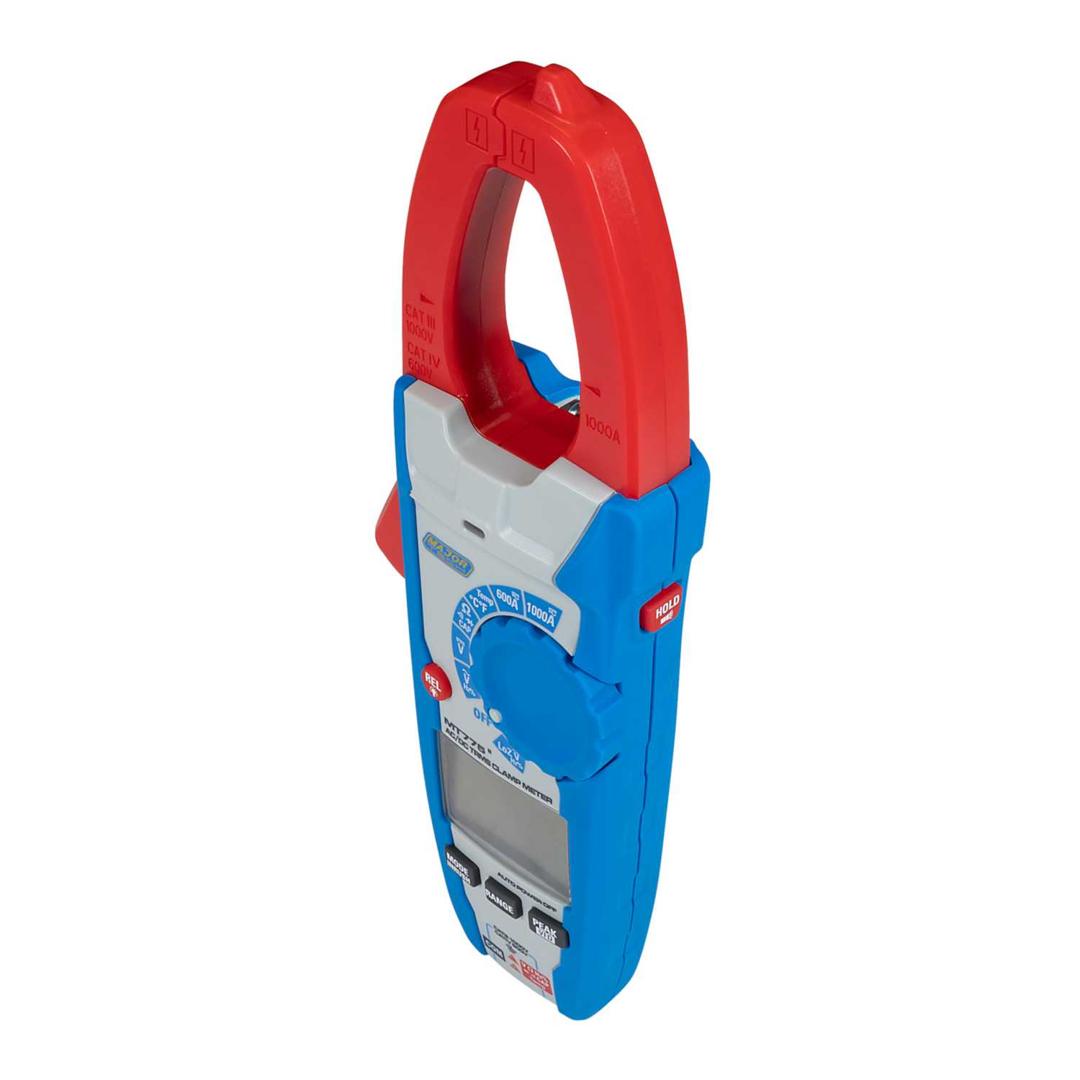

Major Tech 1000A AC/DC True RMS Clamp Meter
Part Number: MT775
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- Digital clamp meter with indication on a large backlit LCD display
- 6000 count backlit LCD display
- Ø33mm cable clamp size
- Measurement of DC voltage and AC voltage up to 1000V
- Capacitance to 100mF
- Temperature measurement from -20 to 1000˚C
- Inrush current measurements
- Variable frequency drive voltage value
- LoZ - low impedance mode prevents false readings due to “ghost” voltage
- Non contact voltage detector
- Built-in flashlight
- Continuity buzzer and diode test
- Peak mode and data hold function
- Auto power off
- Ac Current Measurement
- 1000A
- Ac Voltage Measurement
- 1000V AC
- Auto Power Down
- Yes
- Battery Level Indicator
- Yes
- Battery Size
- AAA
- Battery Type
- Alkaline
- Capacitance Measurement
- 100
- Colour
- Blue/White
- Continuity Check
- Yes
- Data Hold
- Yes
- Dc Current Measurement
- 1000A DC
- Dc Voltage Measurement
- 1000V DC
- Depth
- 40mm
- Dimensions
- (H)250 mm x (W)78 mm x (D)40 mm
- Display Count
- 6000
- Display Type
- Backlit LCD Display
- Frequency Measurement
- 99.99 kHz
- Guarantee
- 2 Years
- Height
- 250mm
- Jaw Opening Capability
- 33mm
- Material
- Plastic
- Number Of Batteries
- 3
- Packaging Types
- Each
- Product Range
- Instruments
- Resistance
- 600.0 Ω – 60.00 MΩ
- Resistance Measurement
- 600.0 Ω – 60.00 MΩ
- Safety Range
- CAT IV 600V and CAT III 1000V
- Standards
- IEC 61010-1
- Supplied With

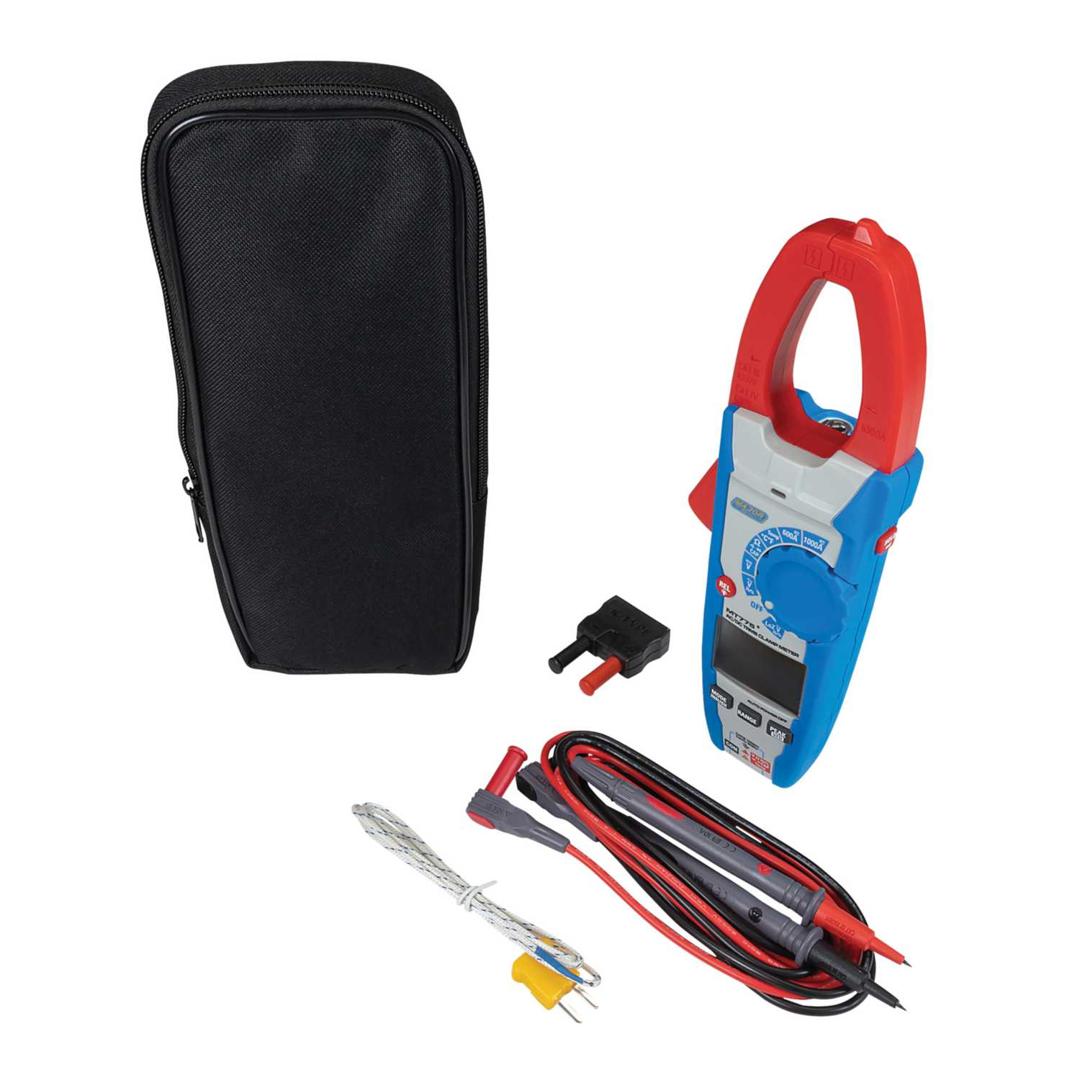

- Test Leads Type-K Wire Probe Type-K Adaptor Carrying Case 3 x AAA Batteries Instruction Manual
- Temperature Range
- -20-1000°C
- Type
- Clamp Meter
- Unspsc V18
- 41113678
- Unspsc V24
- 41113678
- Voltage Rating
- 1000
- Weight
- 0.563kg
- Width
- 78mm
