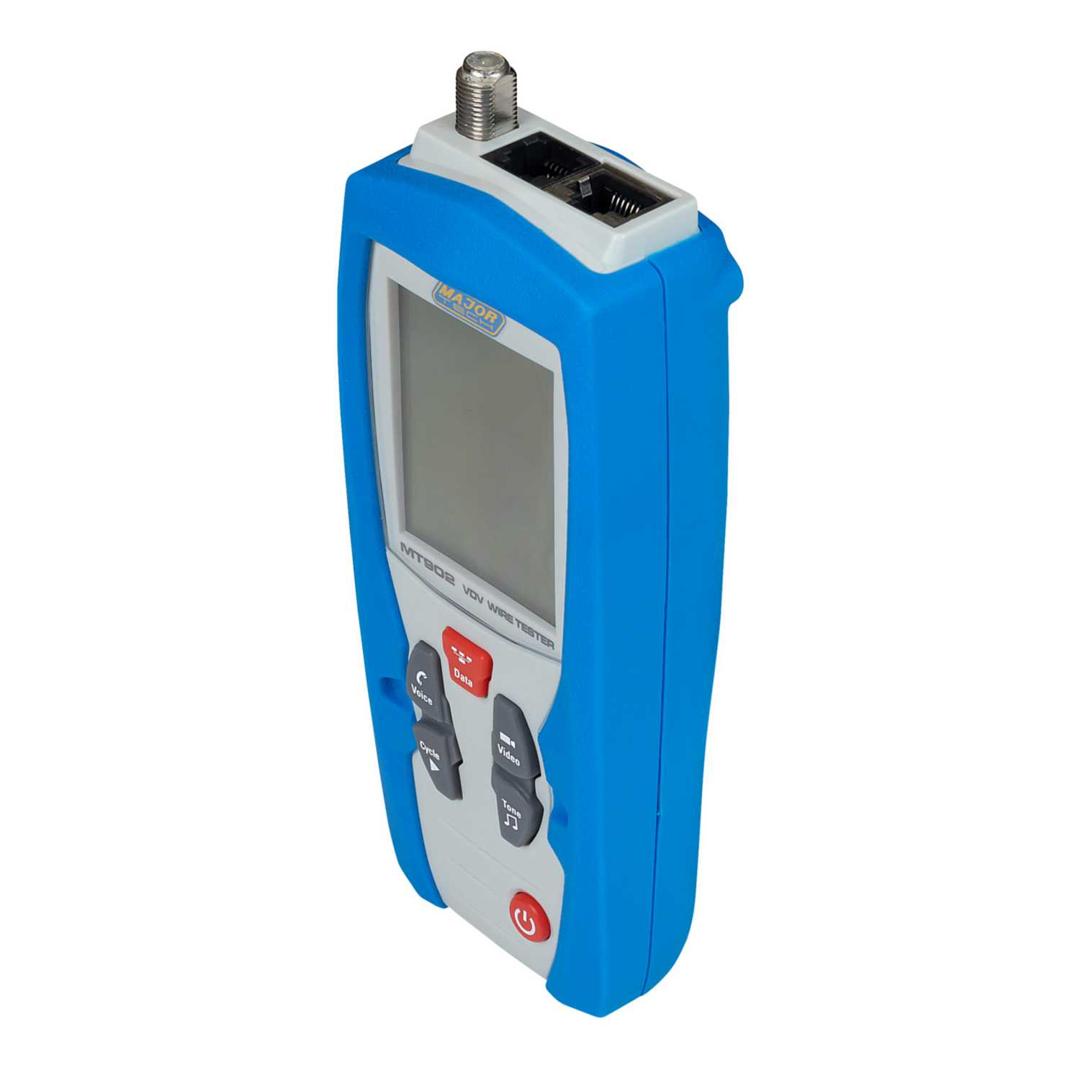

Major Tech Wire Tester Type VDV
Part Number: MT902
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- Analysing of voice, data and video cables
- Tests shielded twisted pair (STP), unshielded twisted pair (UTP) and coaxial cables
- Detects shorts, opens, reversed polarity, crossed and split pairs
- 5 data RJ45 remote identifiers, 5 coax F-connector remote identifiers
- Generates three distinct, selectable digital tone patterns for cable tracing and trouble shooting
- Flashing voltage warning alerts user of unidentified hazardous voltage
- Simple cable identification of patch panel or wall outlet port
- Low battery indication and auto power off
- Pass or fail indication of correct or error in wiring
- Large LCD backlit display
- Battery Level Indicator
- Yes
- Battery Size
- AA
- Battery Type
- Alkaline
- Colour
- Blue/White
- Depth
- 34mm
- Dimensions
- (H)152 mm x (W)61 mm x (D)34 mm
- Display Type
- 2.4 Inch TFT Colour Screen
- Guarantee
- 2 Years
- Height
- 152mm
- Material
- Plastic
- Number Of Batteries
- 2
- Packaging Types
- Each
- Product Range
- Instruments
- Standards
- IEC 61326
- Supplied With

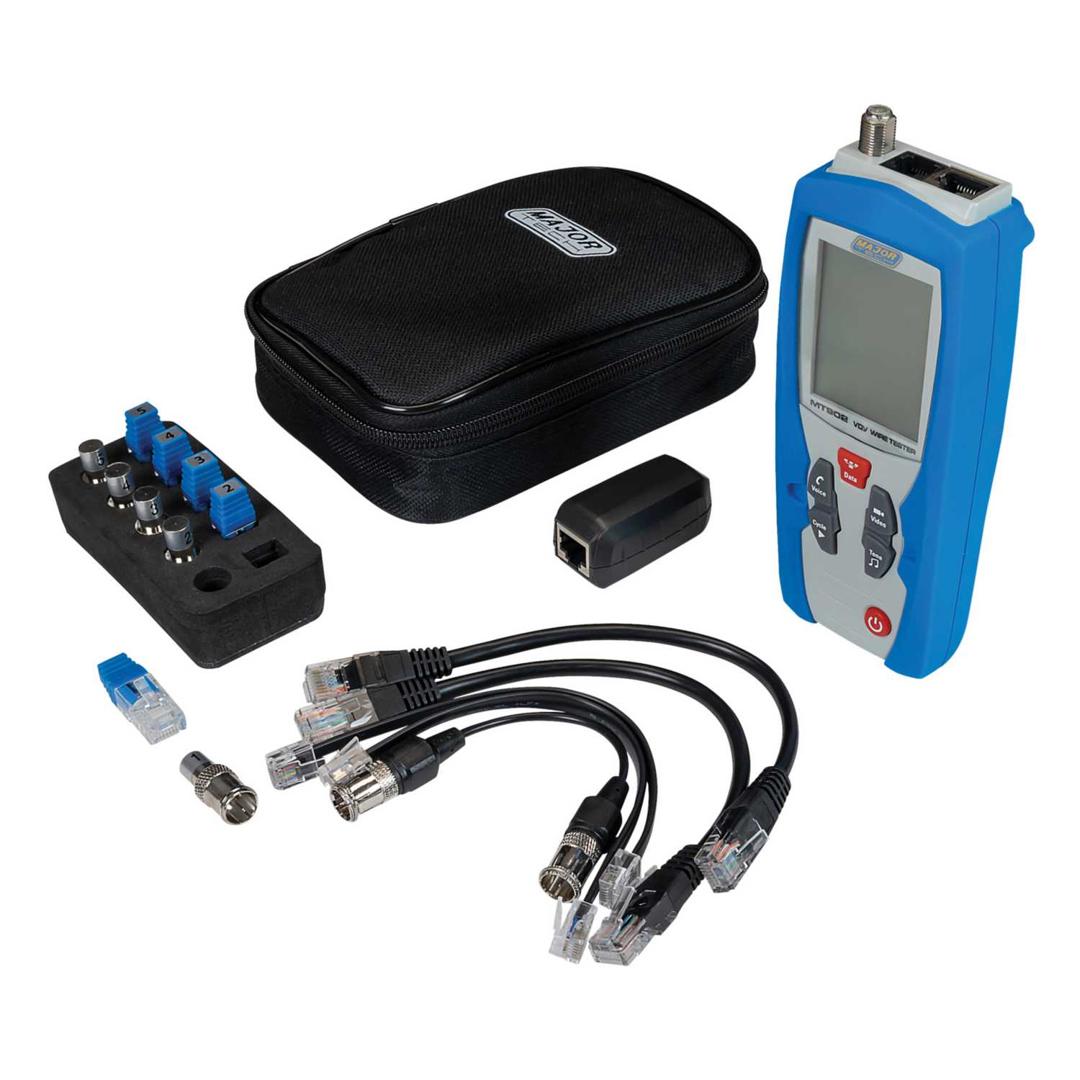

- RJ45 Remote ID’s F-Connector Remote ID’s Voice & Data Jack Adaptor Data Patch Cable Coax Patch Cable Telephone Patch Cable 2 x AA Batteries Instruction Manual
- Type
- Wire Tester
- Weight
- 0.436kg
- Width
- 61mm
