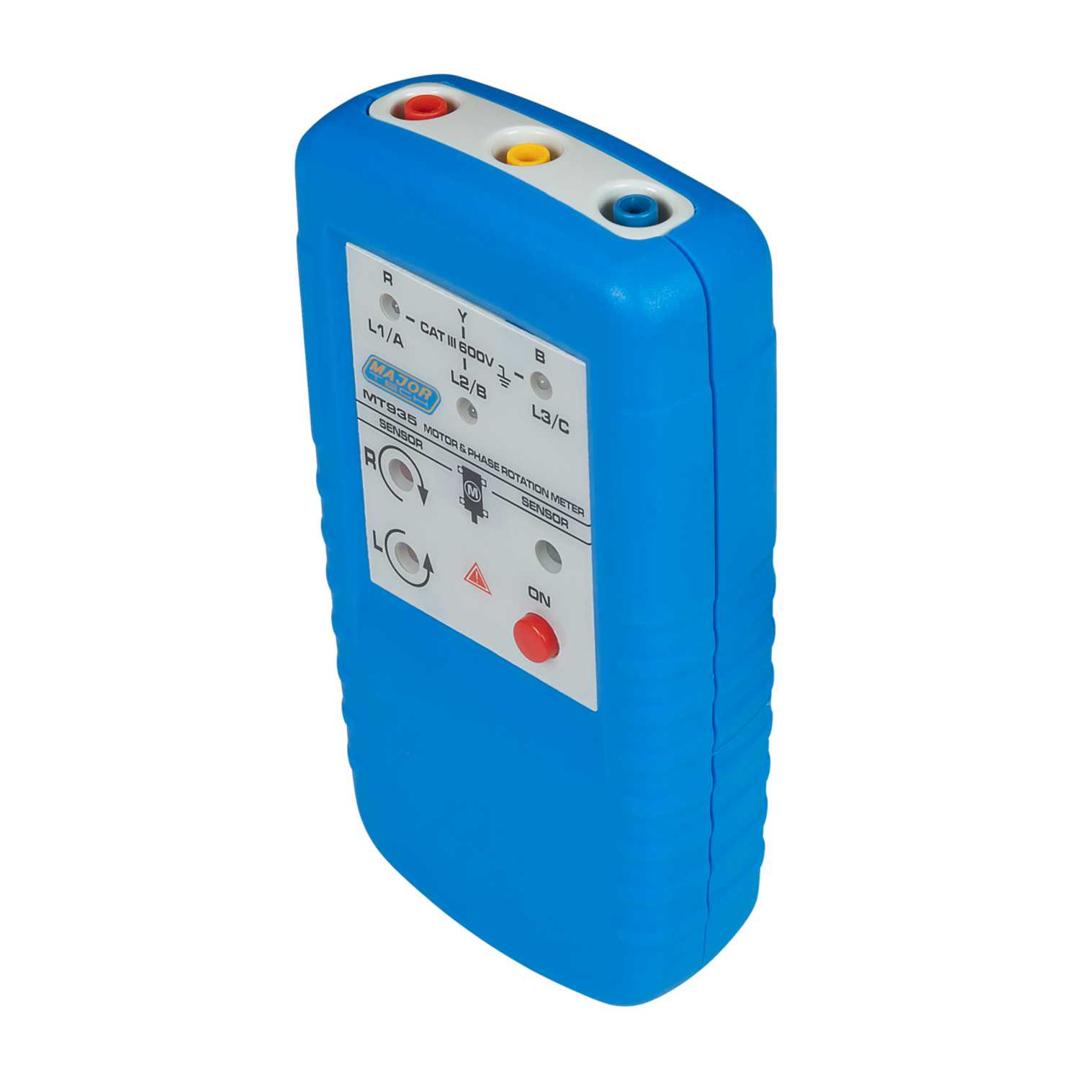

Major Tech Motor and Phase Rotation Meter
Part Number: MT935
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- Handheld motor and phase rotation indicator, battery operated
- Can be utilized on a 3 phase powered system or on a 3 phase unpowered motor without having to worry about damage to the tester
- LED indication
- Rotary field direction
- Three phase neon Indication
- Determines motor connection and magnetic field detection
- Double injection rubber housing
- Small lightweight and portable
- Voltage range from 1VAC to 400VAC
- Large size crocodile clips
- Ac Voltage Measurement
- 400V AC
- Battery Size
- 9V
- Battery Type
- Alkaline
- Colour
- Blue/White
- Depth
- 32mm
- Dimensions
- (H)130 mm x (W)69 mm x (D)32 mm
- Display Type
- Large LCD Display
- Guarantee
- 2 Years
- Height
- 130mm
- Material
- Plastic, Rubber
- Number Of Batteries
- 1
- Packaging Types
- Each
- Product Range
- Instruments
- Safety Range
- CAT IV 300V and CAT III 600V
- Standards
- IEC 61010-1
- Supplied With

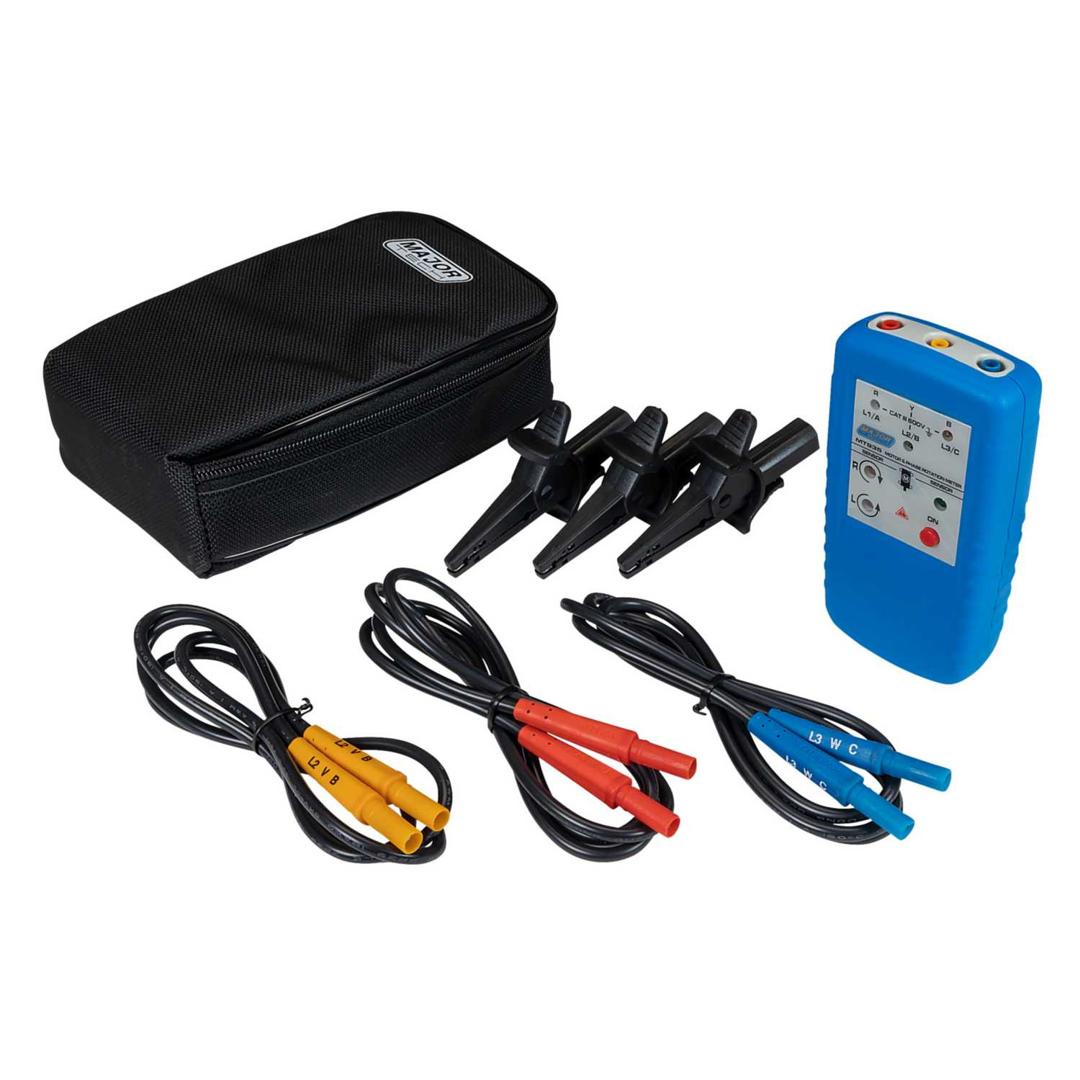

- Set of Large Sized Croc Clips 9V Battery Instruction Manual
- Type
- Phase Rotation Meter
- Unspsc V18
- 41113664
- Unspsc V24
- 41113664
- Voltage Rating
- 400V AC
- Weight
- 0.465kg
- Width
- 69mm
