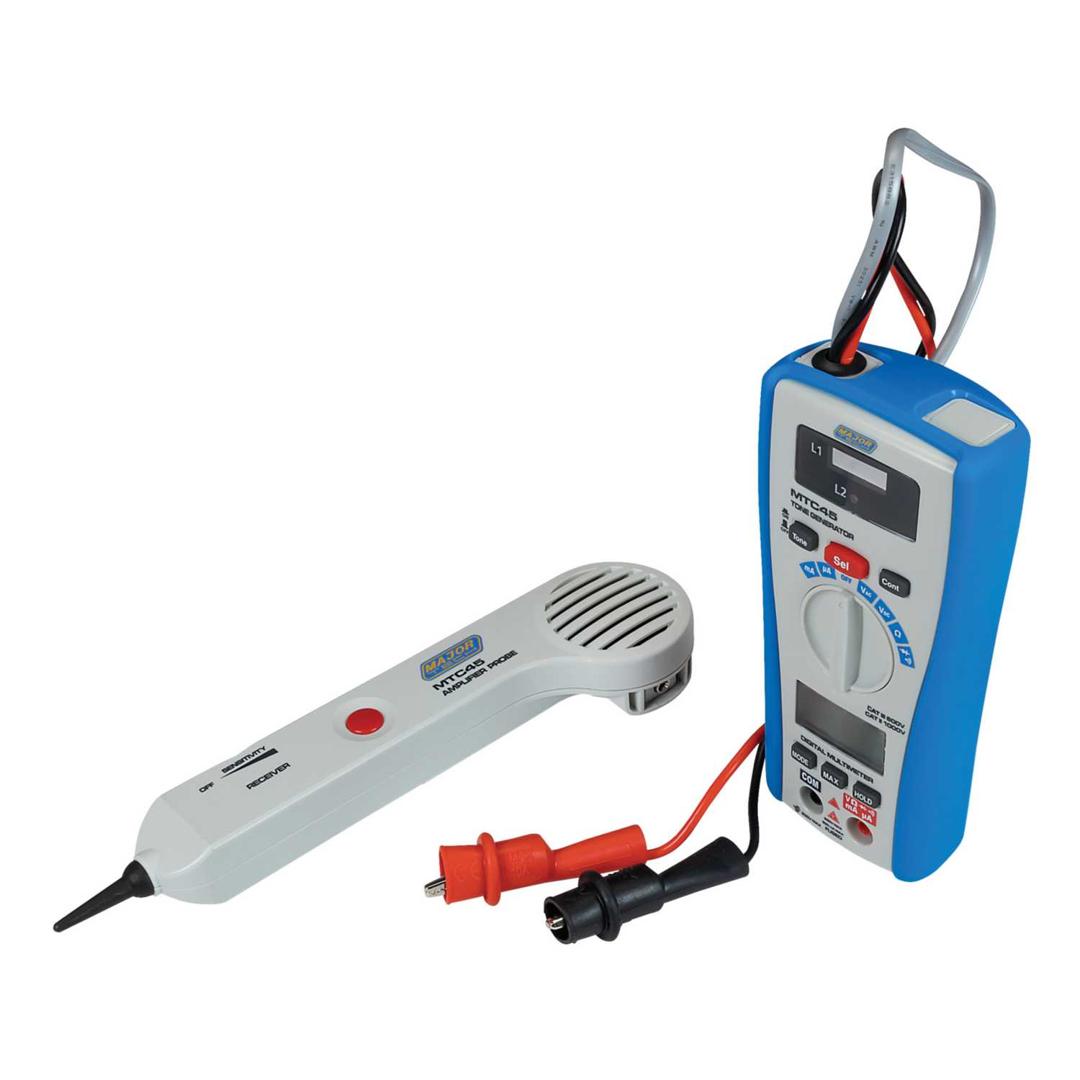

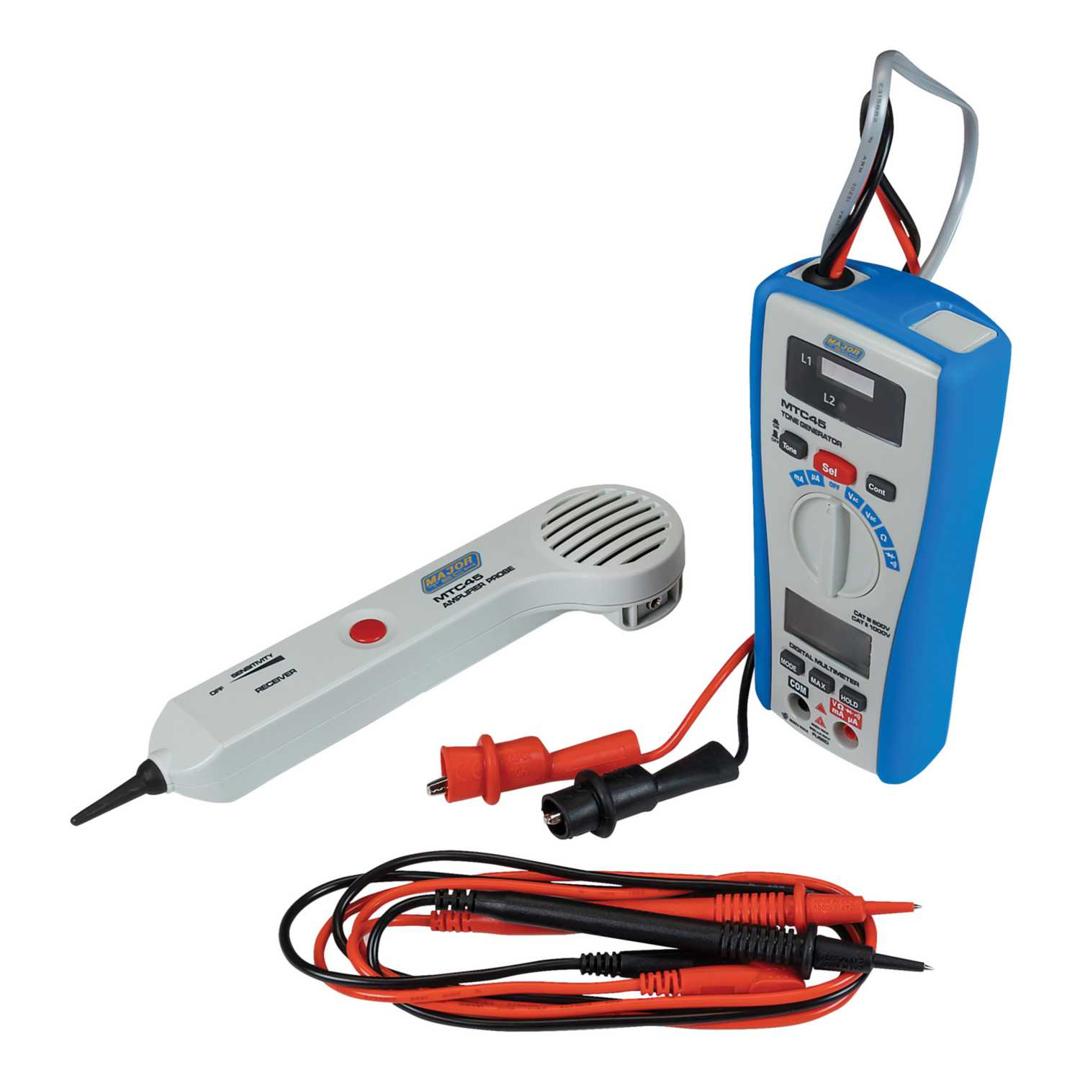

Major Tech 2 in 1 Tone and Probe Generator Plus Multimeter
Part Number: MTC45
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- CAT III 300V and CAT II 600V
- AC and DC voltage 600V
- AC and DC current 200mA
- Resistance 20MΩ
- Tests include wire trace, continuity test, clear/busy/ringing line test and tip/ring identification
- Alligator clips for non terminated cables and modular connectors for direct connections to telephone or internet wiring
- Built-in speaker on probe with sensitivity control
- Selectable continuous or variable tone generation
- Insulated inductive probe tip prevents shorting conductors
- Diode test and continuity
- RJ11 modular connectors
- Ac Current Measurement
- 200A
- Ac Voltage Measurement
- 600V AC
- Battery Type
- Alkaline
- Colour
- Blue/White
- Continuity Check
- Yes
- Dc Voltage Measurement
- 600V DC
- Depth
- 43mm
- Dimensions
- (H)162 mm x (W)74 mm x (D)43 mm
- Display Count
- 2000
- Display Type
- Digital
- Guarantee
- 2 Years
- Height
- 162mm
- Material
- Plastic
- Number Of Batteries
- 4
- Packaging Types
- Each
- Product Range
- Instruments
- Resistance
- 200.0Ω – 20MΩ
- Safety Range
- CAT III 300V and CAT II 600V
- Standards
- IEC 61010-1
- Supplied With
- Carrying Case 2 x AAA and 2 x 9V Test Leads Crocodile Clips Instruction Manual
- Type
- Tone Generator
- Voltage Rating
- 600
- Weight
- 0.487kg
- Width
- 74mm
