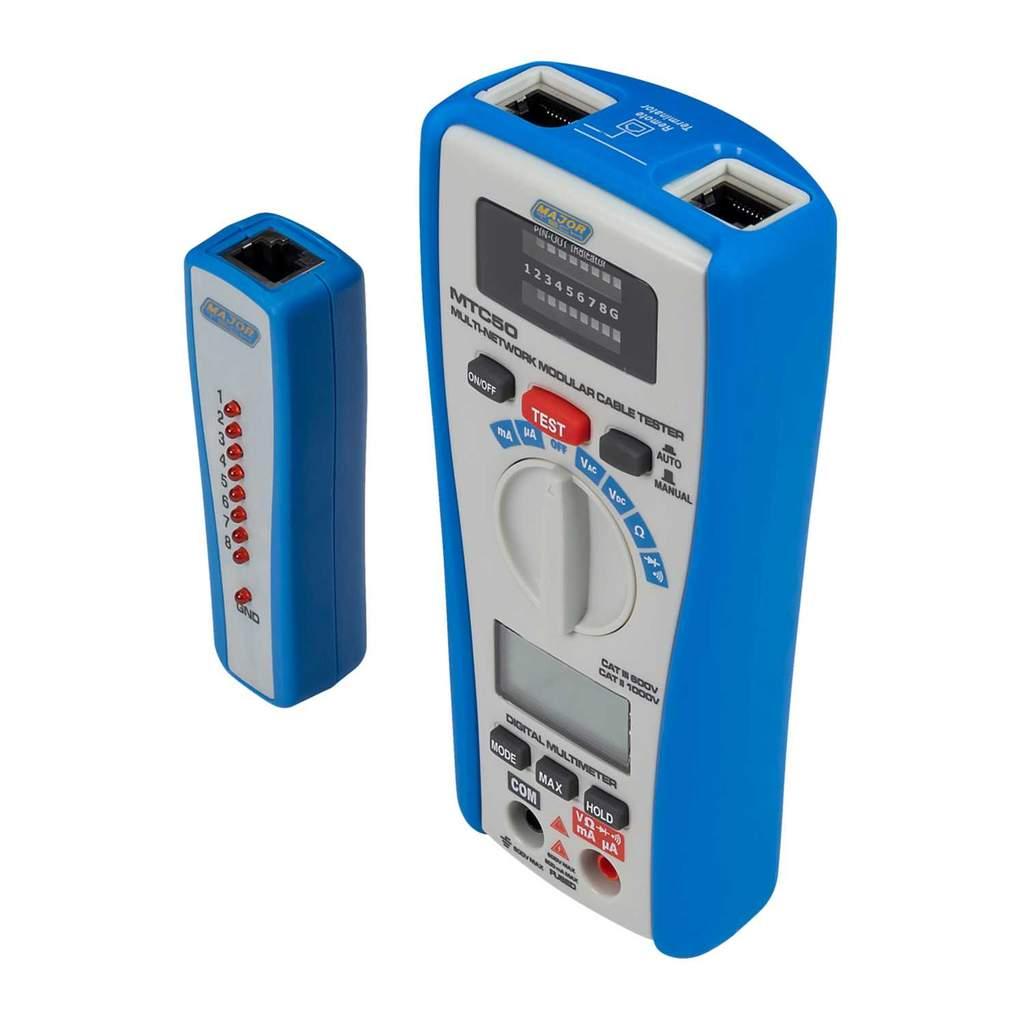

Major Tech LAN Tester and Multimeter
Part Number: MTC50
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- 2-in-1 LAN tester and multimeter and is a newly designed and very practical tester that can easily read the correct pin configuration of multiple types of cable
- 10/100 Base-T cable (Category 5), 10Base-2 cable (coax), RJ45/RJ11 modular cables, AT&T 258A, 356A, TIA 568A/568B and Token Ring cable
- Compares one transmitting end to the corresponding receiving end
- RJ45 and RJ11 modular connectors
- With remote kit it can remotely test cables up to 300m away from wall plate or patch panel
- Locked status wiring function
- AC and DC voltage measurement to 600V
- AC and DC current measurement to 200mA
- Resistance to 20MΩ
- Diode check
- Continuity
- 2000 count LCD display
- Ac Current Measurement
- 200mA
- Ac Voltage Measurement
- 600V AC
- Battery Size
- 9V
- Battery Type
- Alkaline
- Colour
- Blue/White
- Continuity Check
- Yes
- Dc Current Measurement
- 200mA
- Dc Voltage Measurement
- 600V DC
- Depth
- 43mm
- Dimensions
- (H)162 mm x (W)74 mm x (D)43 mm
- Display Count
- 2000
- Display Type
- LCD
- Guarantee
- 2 Years
- Height
- 162mm
- Material
- Plastic
- Number Of Batteries
- 1
- Packaging Types
- Each
- Product Range
- Instruments
- Resistance
- 200.0 Ω – 20 MΩ
- Resistance Measurement
- 200.0 Ω – 20 MΩ
- Safety Range
- CAT III 300V and CAT II 600V
- Standards
- IEC61010-1
- Supplied With
- Carrying Case 9V Battery Test Leads Instruction Manual
- Type
- LAN Tester
- Unspsc V18
- 41113740
- Unspsc V24
- 41113740
- Voltage Rating
- 600
- Weight
- 0.308kg
- Width
- 74mm
