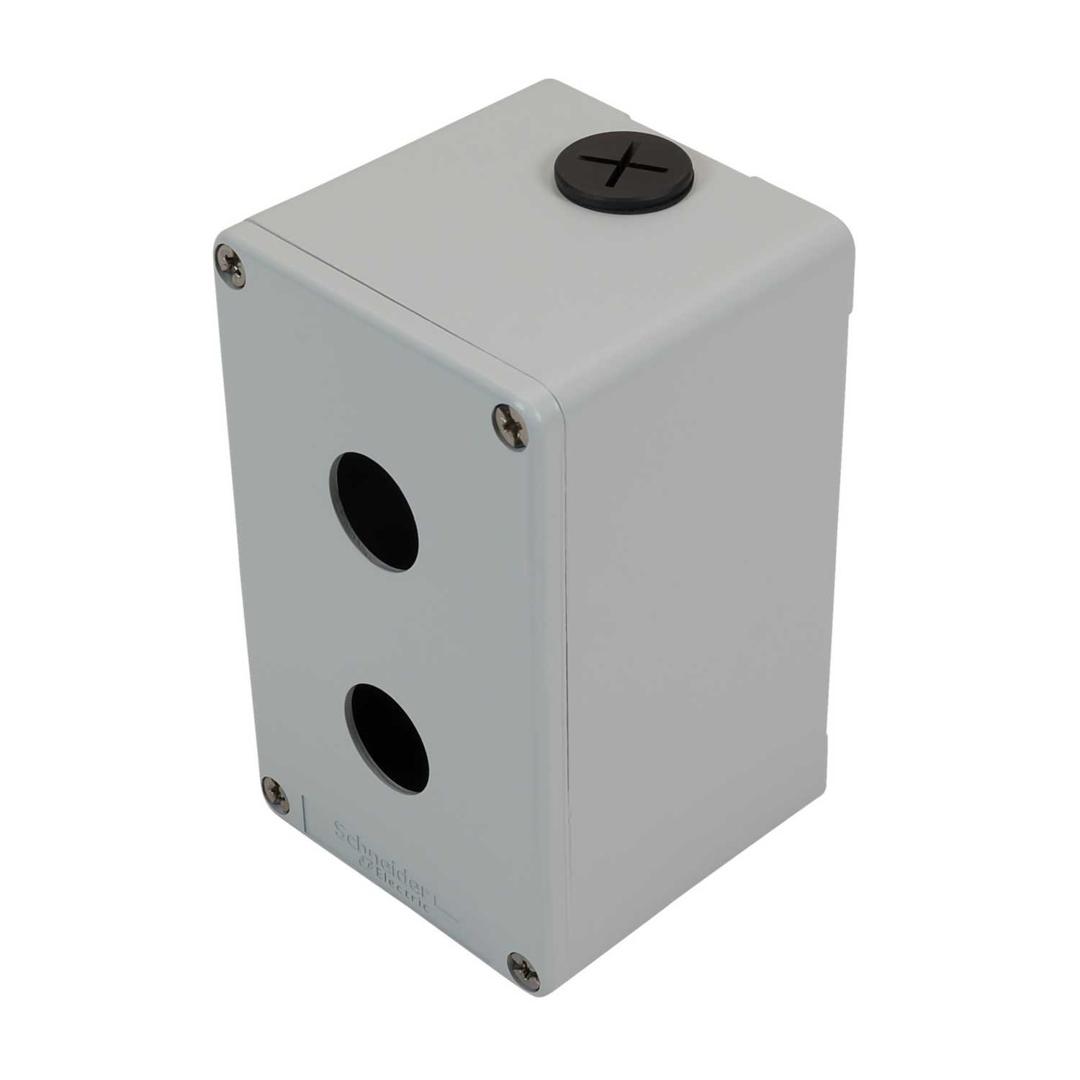

Schneider Harmony XAP 2 Hole Deep Die Cast Zinc Empty Control Station Grey
Part Number: XAPD2502
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.

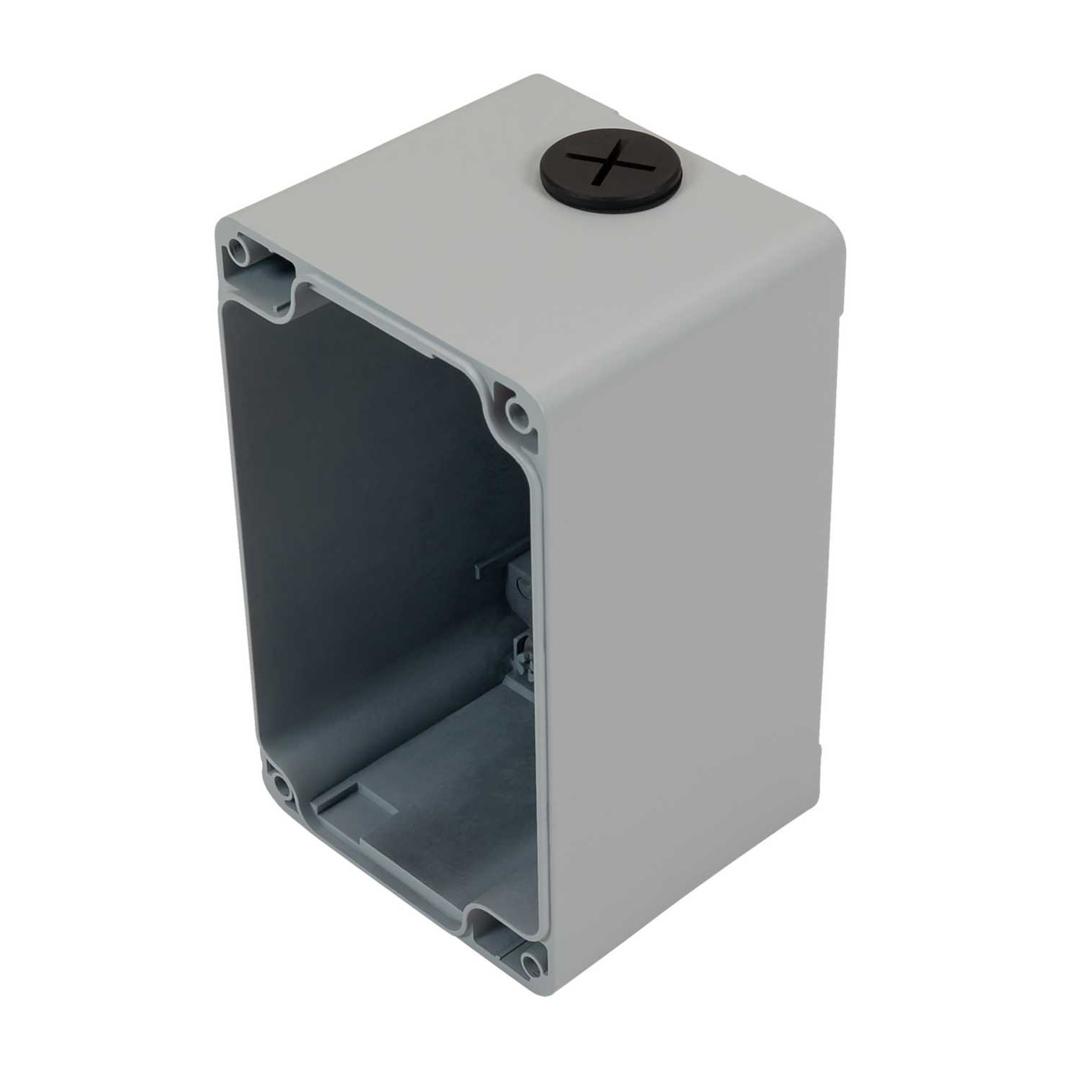

- Die cast zinc alloy empty control station for use with XB4 and XB5 series Ø 22mm control and signalling units
- 2 holes in a vertical arrangement
- Usable depth 74.5mm
- Two M20 entry holes, one with blanking plug
- IP65, IP66 and IP69 when appropriate glands and Harmony XB4 or XB5 products are installed correctly
- Electrical shock protection Class I
- Mechanical impact protection IK07
- Cable Entry
- 2 x M20 Threaded
- Colour
- Grey
- Cut Out
- 22.5mm
- Depth
- 77mm
- Dimensions
- (H)130 mm x (W)80 mm x (D)77 mm
- Guarantee
- 1 Year
- Height
- 130mm
- Ip Rating
- IP69
- Material
- Die Cast Zinc
- Maximum Operating Temperature
- 70°C
- Minimum Operating Temperature
- -25°C
- Mounting
- Surface
- Number Of Ways
- 2
- Packaging Types
- Each
- Product Range
- Harmony XAP
- Standards
- IEC 62444 EN/IEC 61140 EN/IEC 62262 EN/IEC 60529 EN/IEC 60947-5-1 UL Type 4 Conforming to UL 50 E UL Type 4X Conforming to UL 50 E
- Type
- Control Station
- Unspsc V18
- 39121326
- Unspsc V24
- 39121326
- Weight
- 1.024kg
- Width
- 80mm
