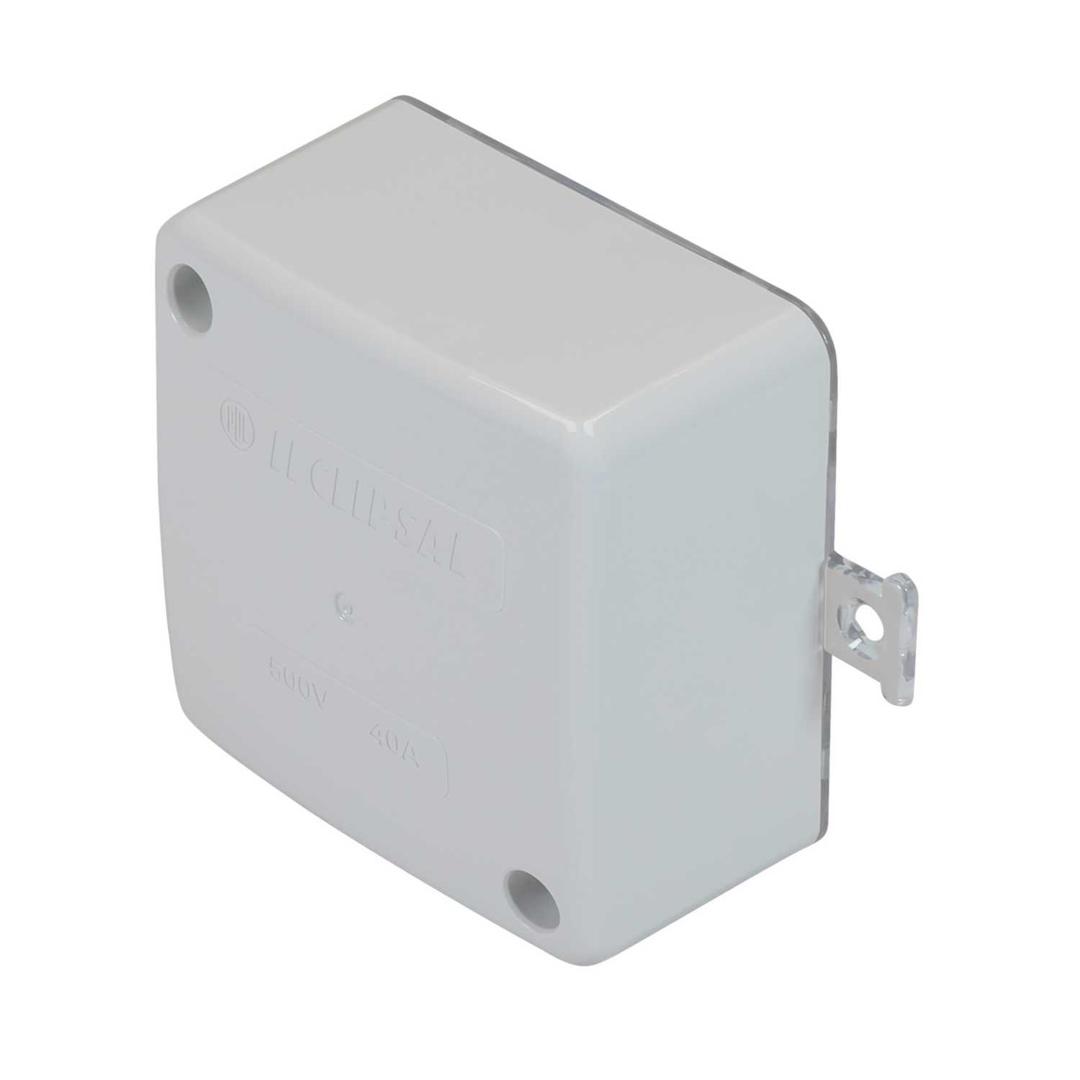

Clipsal Junction Box 40A 4 Terminal White
Part Number: 504/4-WE
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- Used to join and protect cables
- 1 x double screw earth and 3 x single screw active connectors
- Surface mount
- Supplied with fixing nails

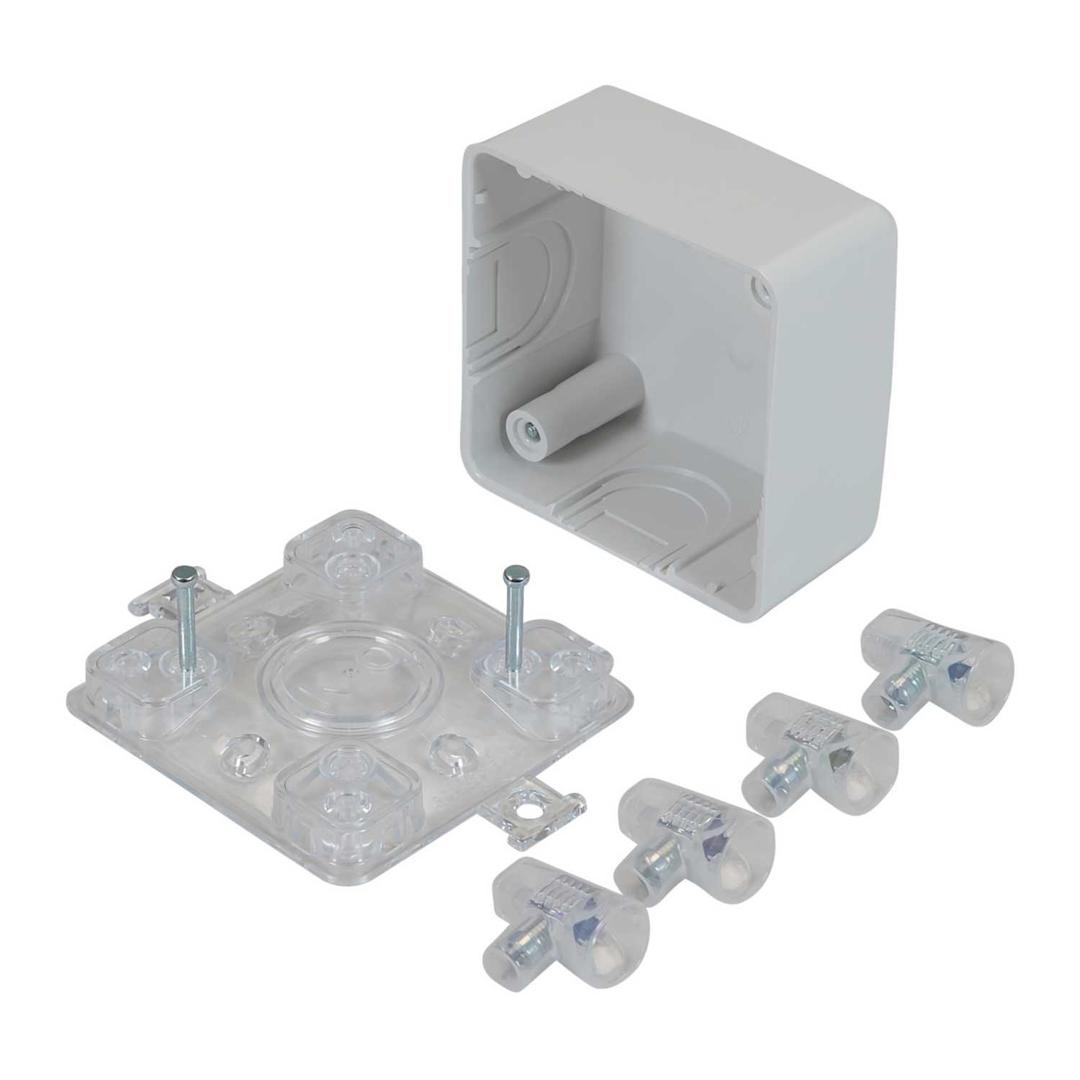

- Clip-on lid for ease of installation then secured with supplied screws
- Low profile design for use in tight spaces
- Clear base for inspection of terminals
- External fixing tabs on base can be easily removed if not required
- Colour
- White
- Current Rating
- 40A
- Depth
- 37mm
- Dimensions
- (H)70 mm x (W)70 mm x (D)37 mm
- Guarantee
- 1 Year
- Height
- 70mm
- Material
- Plastic
- Mounting
- Surface
- Number Of Terminals
- 4
- Packaging Types
- Each
- Product Range
- Electrical Accessories
- Standards
- AS 60529
- Terminal Type
- Screw
- Type
- Junction Box
- Unspsc V18
- 39121332
- Unspsc V24
- 39121332
- Weight
- 0.073kg
- Width
- 70mm
