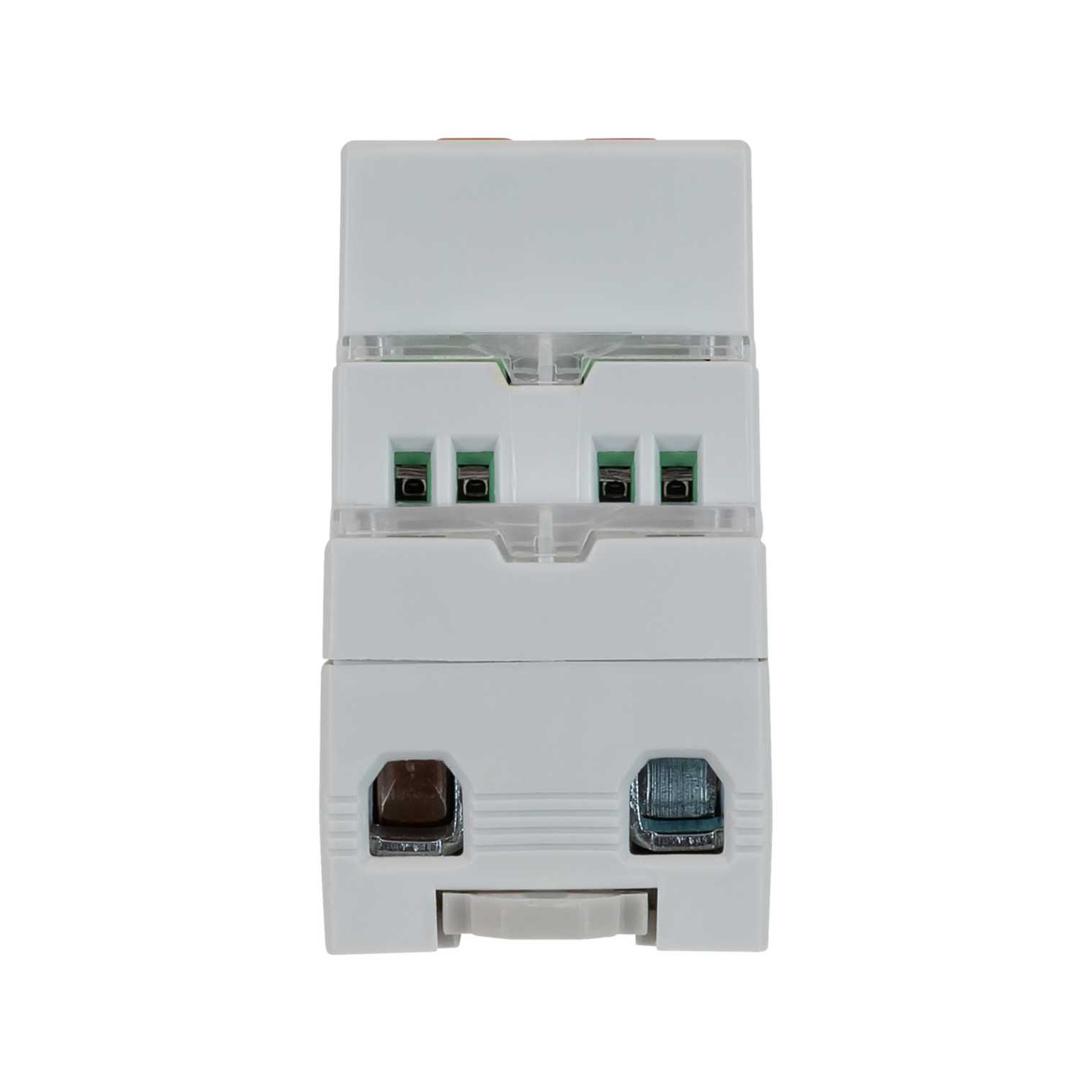

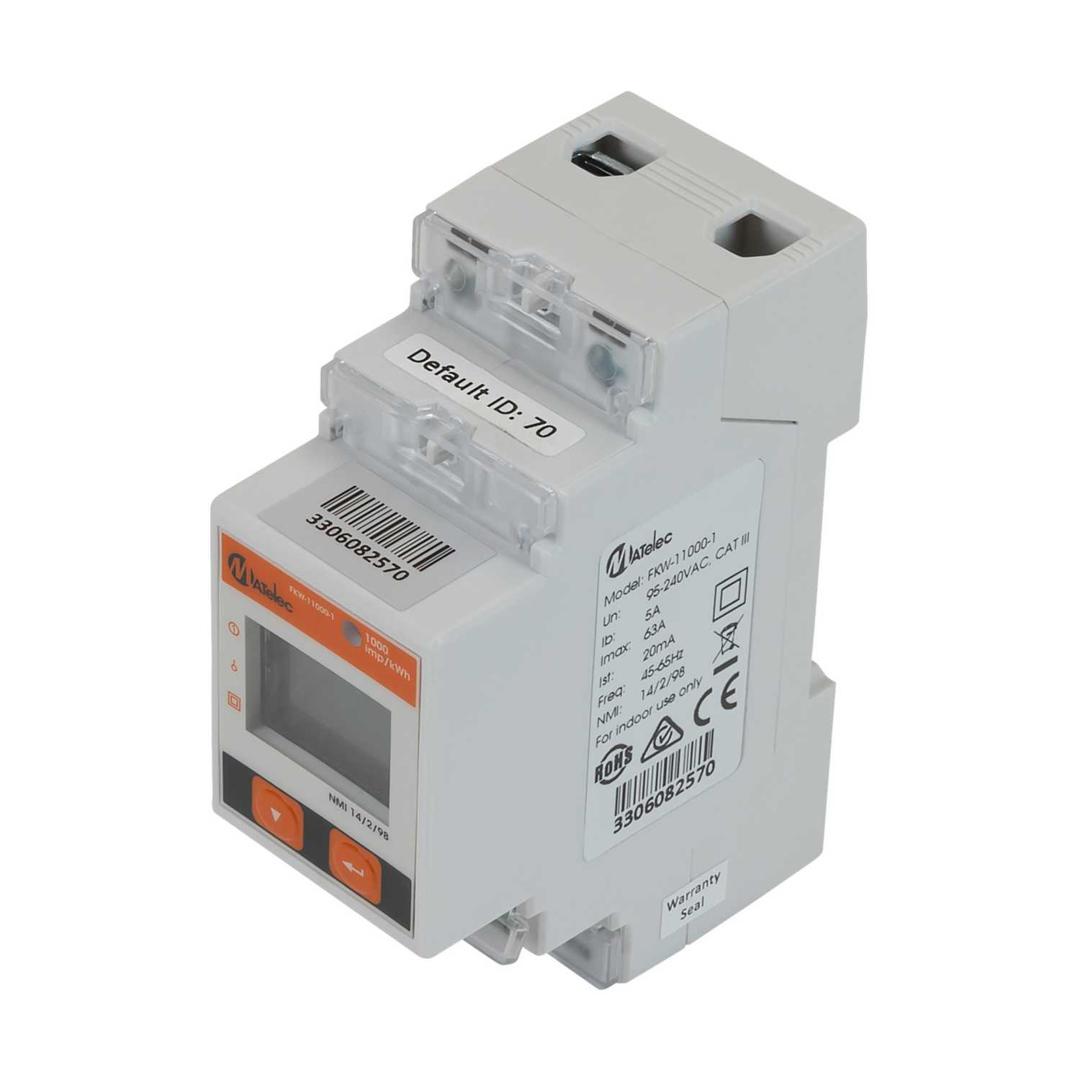

Matelec 63A 1 Phase Rs485 DIN Mounted Kilowatt Hour Meter
Part Number: FKW-11000-1
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- Class 1 accuracy
- LCD display
- 63A direct connect
- RS485 Modbus output
- Energy pulse output
- 2 DIN modules wide
- NMI approved
- Accuracy
- Class 1
- Cable Capacity
- 25mm²
- Colour
- Grey
- Compliance
- IEC62052-11 IEC62053-21
- Current Rating
- 63A
- Depth
- 65mm
- Dimensions
- (H)90 mm x (W)36 mm x (D)65 mm
- Display Type
- Digital Counter
- Frequency
- 50 Hz
- Guarantee
- 1 Year
- Height
- 90mm
- Material
- ABS
- Mounting
- DIN Rail
- Number Of Modules
- 2
- Number Of Phases
- 1
- Packaging Types
- Each
- Product Range
- FKW
- Standards
- IEC62052-11 IEC62053-21
- Temperature Range
- 5-70°C
- Type
- Energy Meter
- Unspsc V18
- 39121106
- Unspsc V24
- 39121106
- Voltage Range
- 220 - 240VAC
- Voltage Rating
- 230V AC
- Weight
- 0.147kg
- Width
- 36mm
