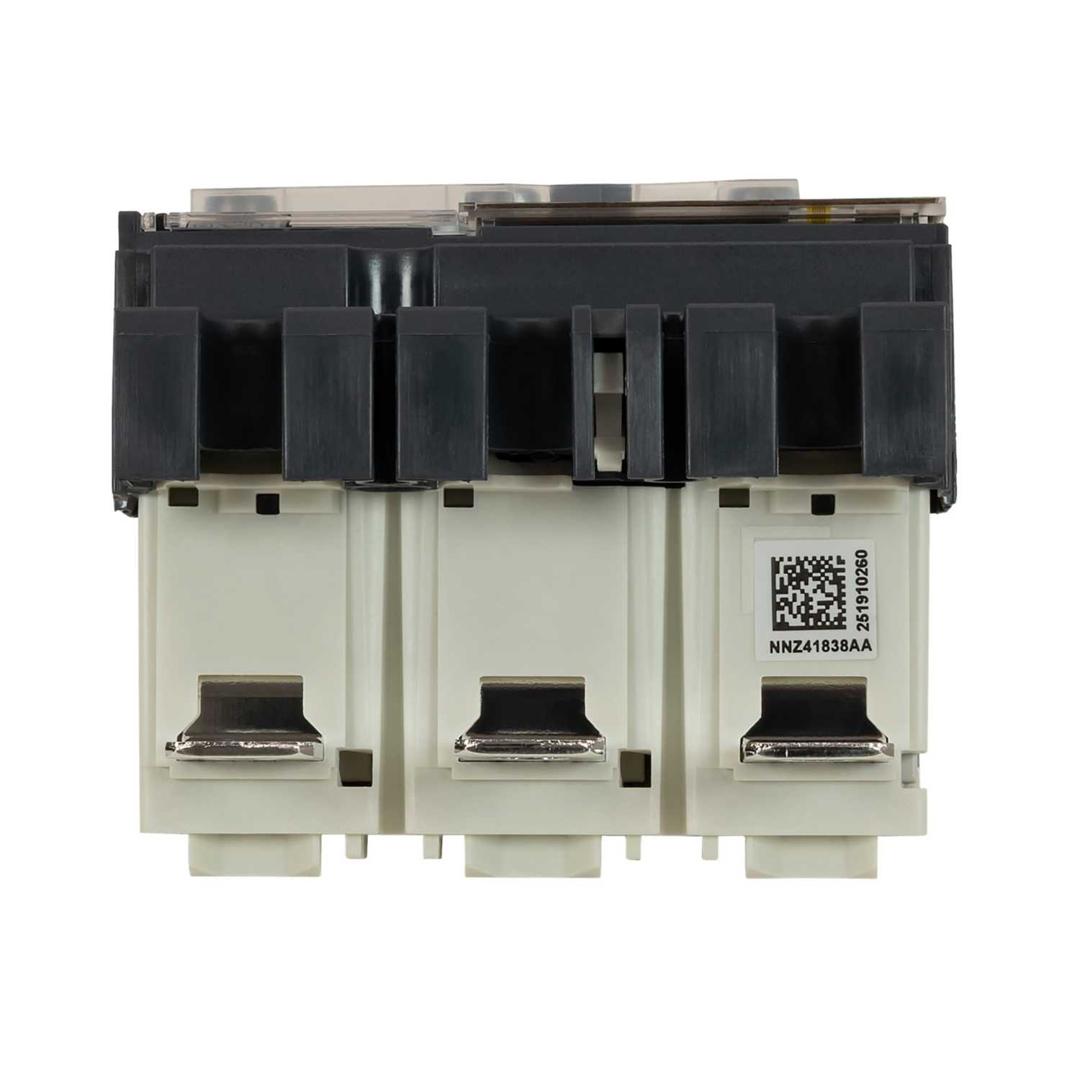

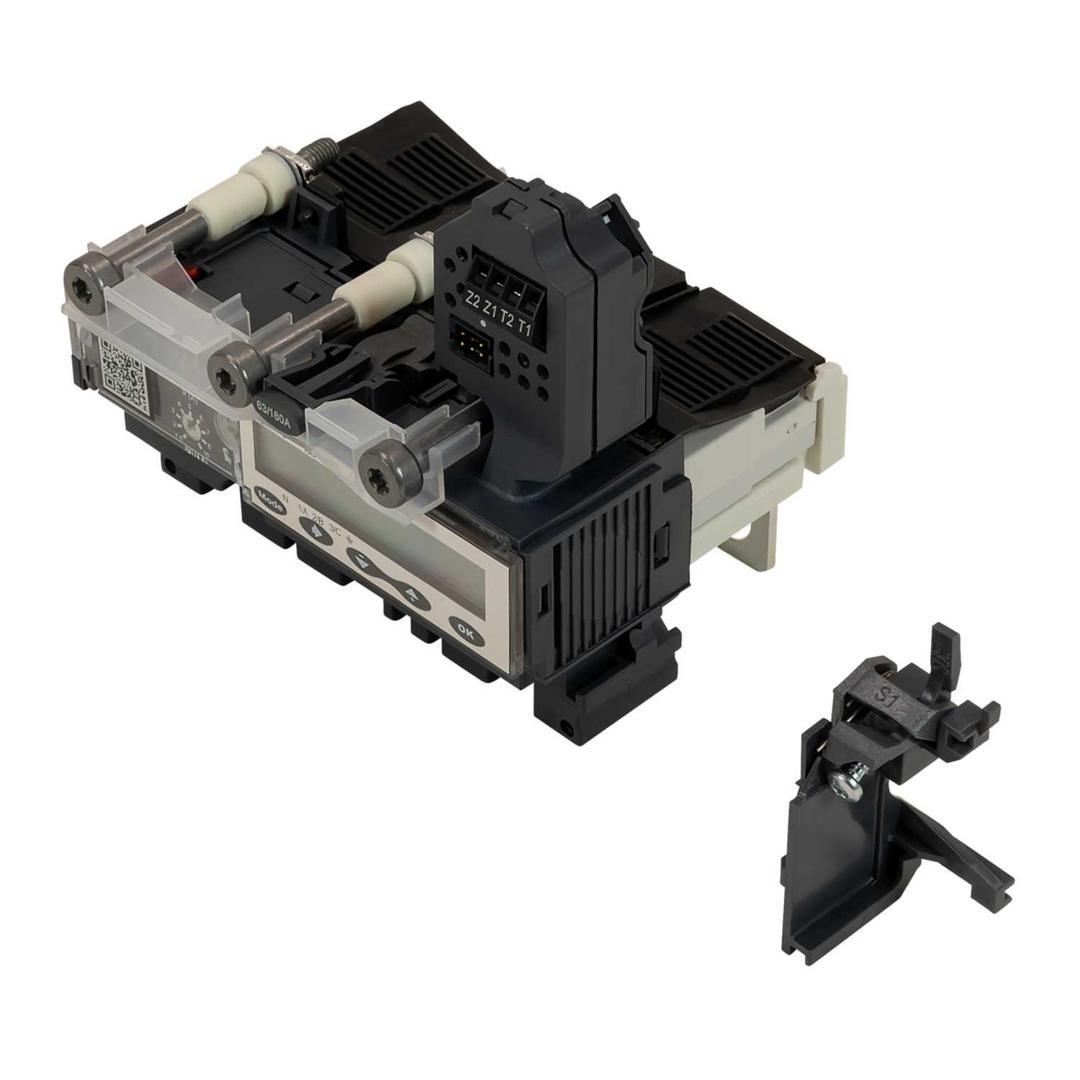

Schneider ComPacT 160A 3 Pole MicroLogic 5.2E Trip Unit for NSX160/250
Part Number: C1635E160
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- MicroLogic 5.2E electronic trip unit rated 160A
- Compatible with ComPacT NSX 160/250 circuit breakers
- Adjustable long time protection against overloads
- Adjustable short-time protection and instantaneous protection against short-circuits
- Local LED signalling
- Colour
- Black
- Current Rating
- 160A
- Guarantee
- 18 Months
- Number Of Poles
- 3 Pole
- Packaging Types
- Each
- Product Range
- ComPacT
- Standards
- EN/IEC 60947-2
- Type
- NSX Trip Unit
- Unspsc V18
- 39121616
- Unspsc V24
- 39121616
- Voltage Rating
- 690V AC
- Weight
- 0.545kg
