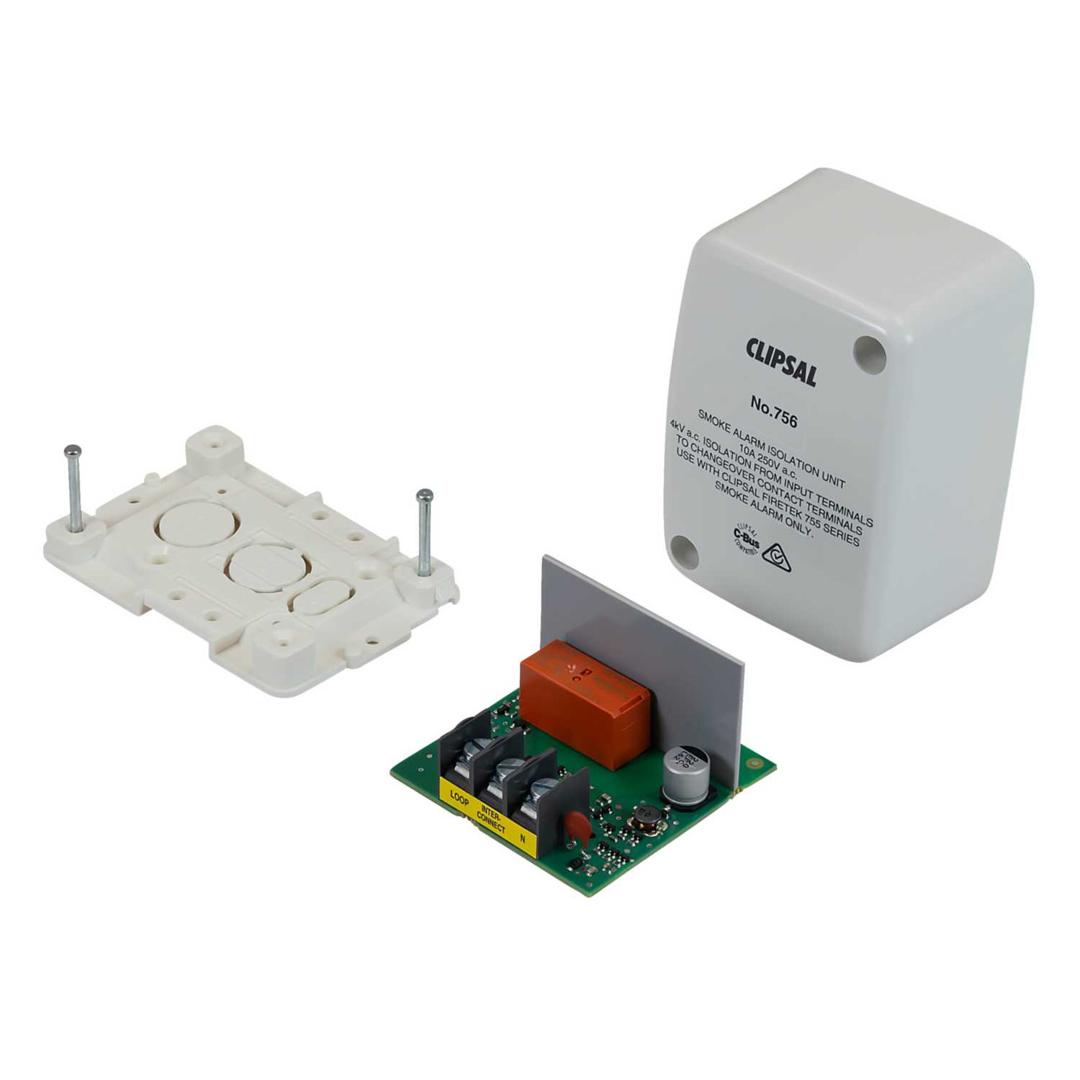

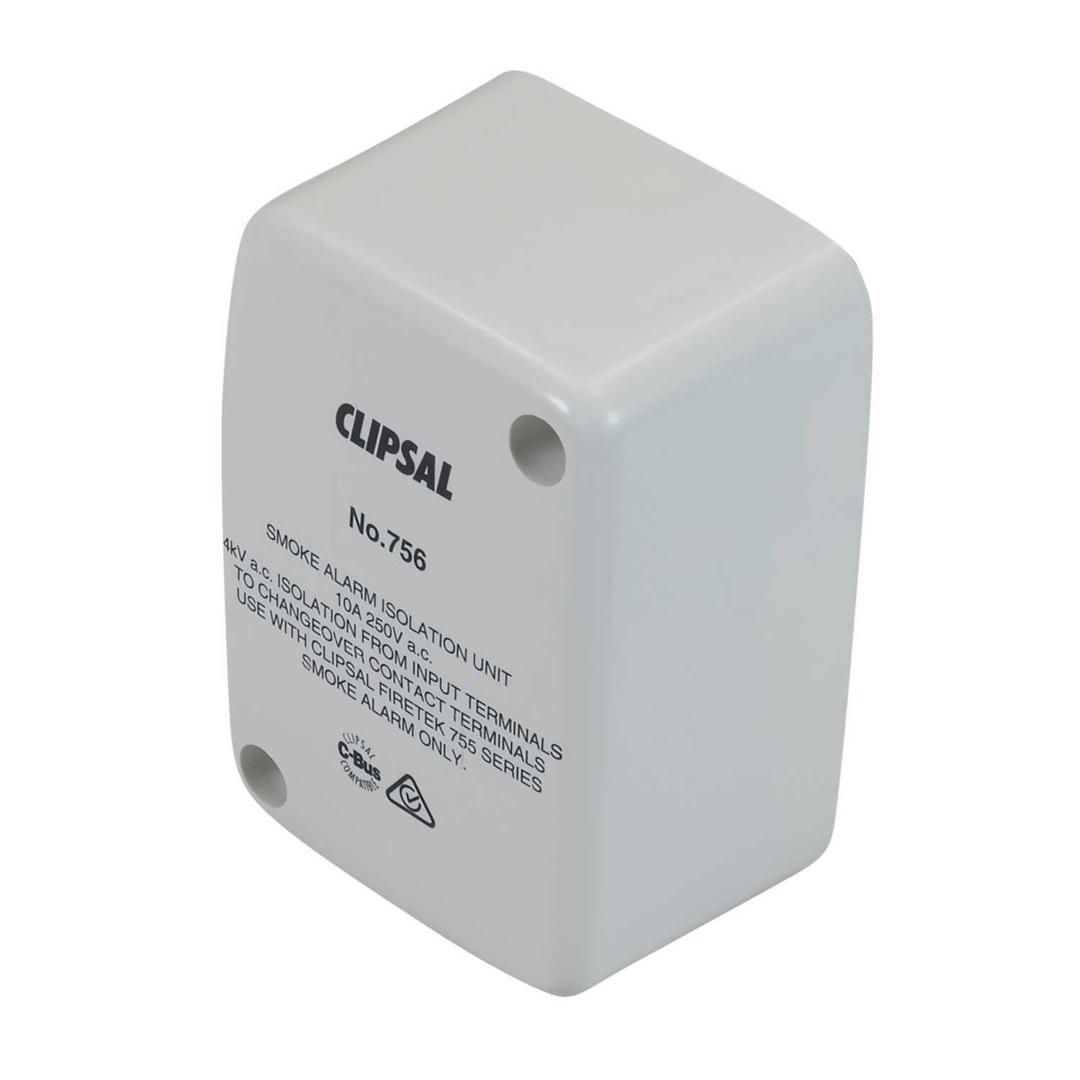

Clipsal Smoke Alarm Isolation Unit
Part Number: 756
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- Smoke alarm isolation unit compatible with Clipsal Fire Tek smoke alarms only
- Unit provides a set of isolated, normally open and normally closed changeover contacts
- Allows auxiliary devices such as sirens, strobes and/or security systems to be activated when the smoke alarm is in the alarm state
- Colour
- White
- Depth
- 45mm
- Dimensions
- (L)89 mm x (W)68 mm x (D)45 mm
- Frequency
- 50 Hz
- Guarantee
- 1 Year
- Length
- 89mm
- Material
- Plastic
- Maximum Operating Temperature
- 50°C
- Minimum Operating Temperature
- -20°C
- Mounting
- Surface
- Operating Temperature Range
- -20 - +50°C
- Packaging Types
- Each
- Product Range
- Fire Tek
- Shape
- Rectangular
- Type
- Isolation Relay
- Unspsc V18
- 46191501
- Unspsc V24
- 46191501
- Voltage Rating
- 240V AC
- Weight
- 0.13kg
- Width
- 68mm
