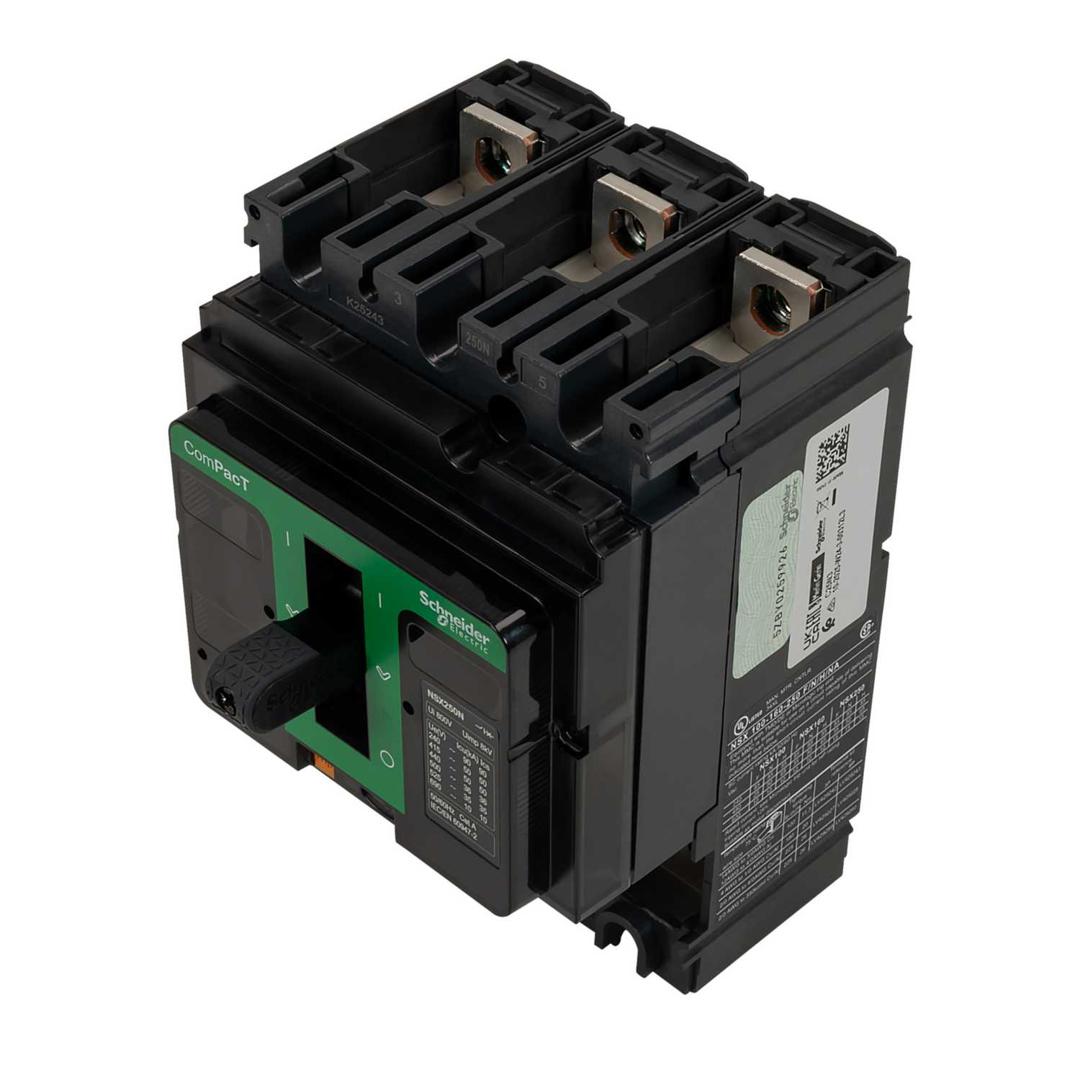

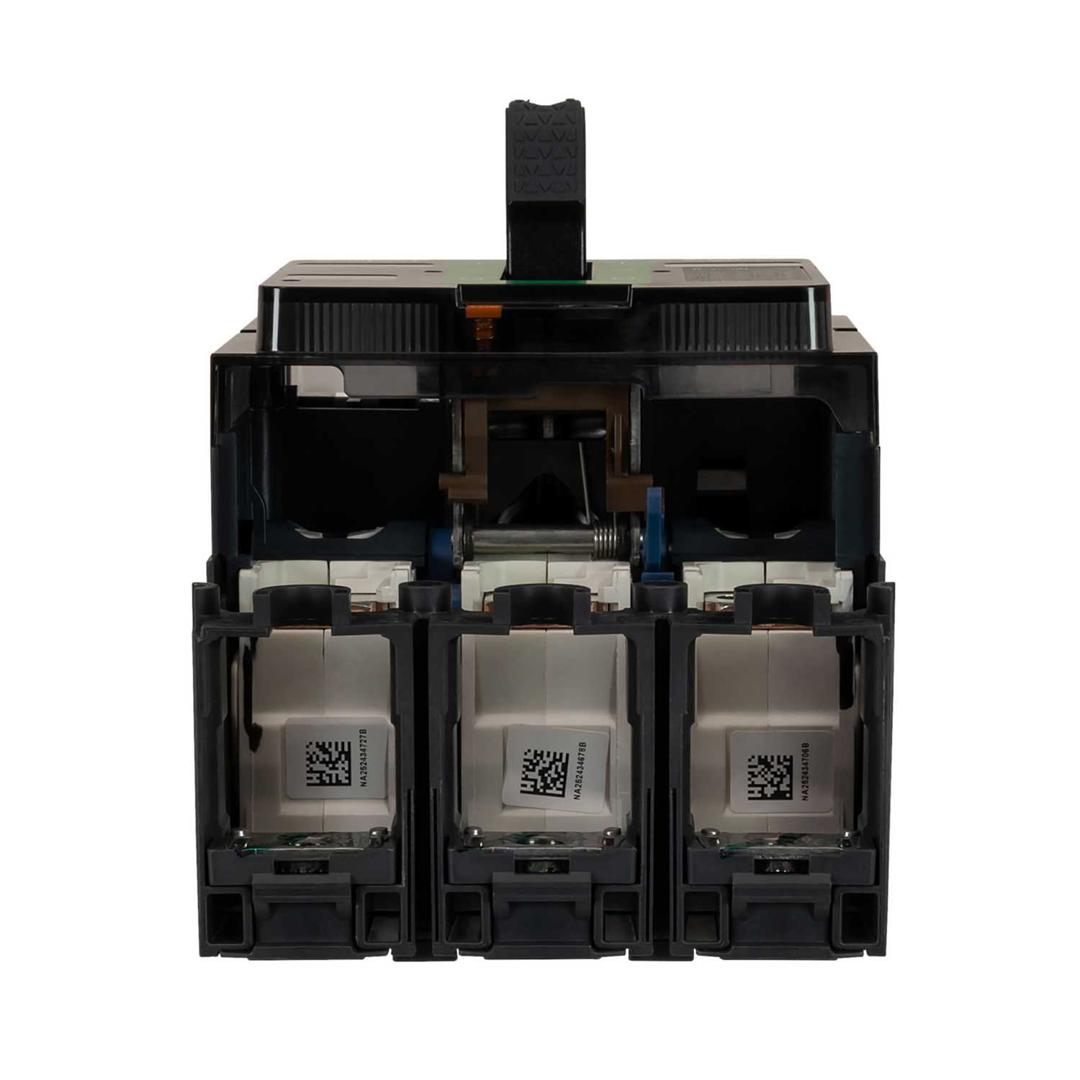

Schneider ComPacT 250A 3 Pole 50kA NSX250N MCCB without Trip Unit
Part Number: C25N3
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- 3 pole moulded case circuit breaker
- Basic frame without trip unit
- Requires NSX250 compatible add on trip unit (sold separately)
- Network type AC
- Variety of optional functions and accessories
- Colour
- Black
- Current Rating
- 250A
- Depth
- 86mm
- Dimensions
- (H)161 mm x (W)105 mm x (D)86 mm
- Guarantee
- 18 Months
- Height
- 161mm
- Ip Rating
- IP40
- Mounting
- Fixed
- Number Of Poles
- 3 Pole
- Packaging Types
- Each
- Product Range
- ComPacT
- Short Circuit Rating
- 50kA
- Standards
- EN/IEC 60947-2
- Type
- MCCB
- Unspsc V18
- 39121616
- Unspsc V24
- 39121616
- Voltage Rating
- 690V AC
- Weight
- 1.638kg
- Width
- 105mm
