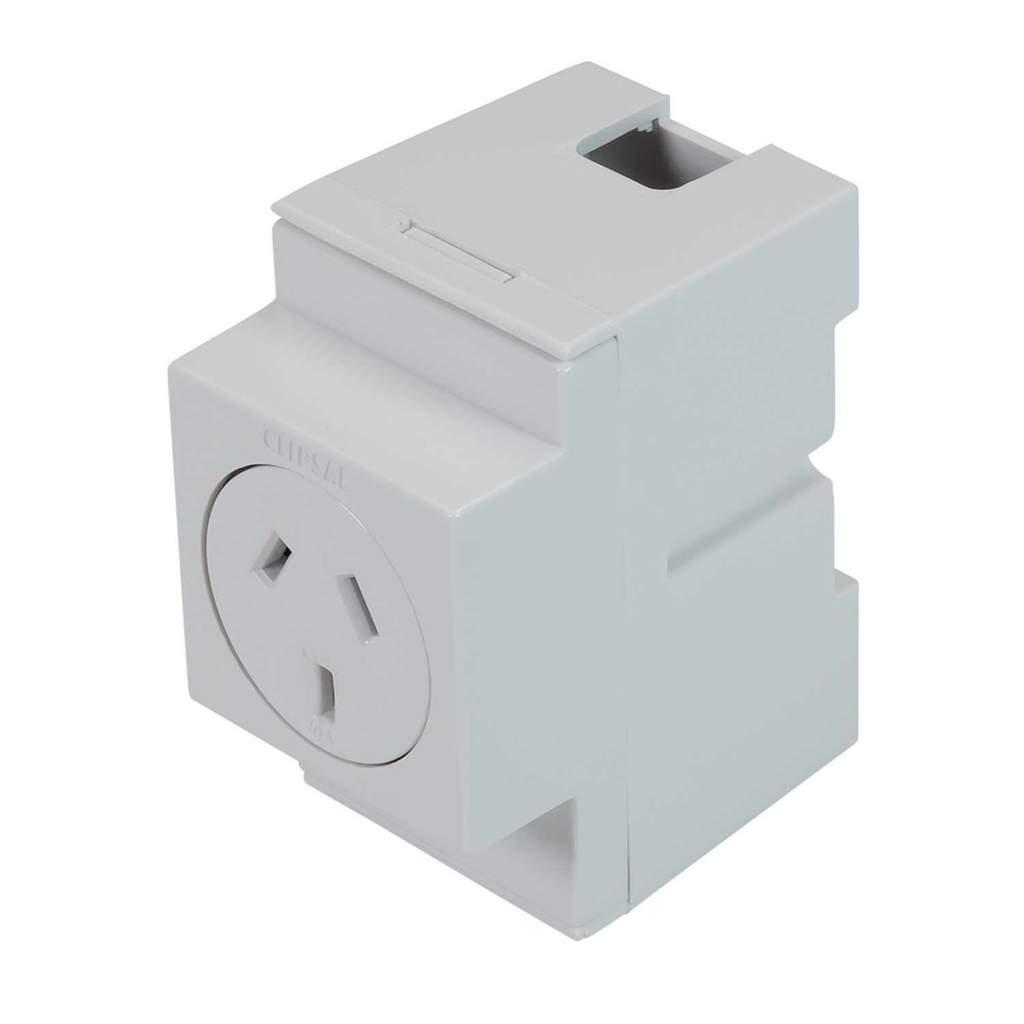

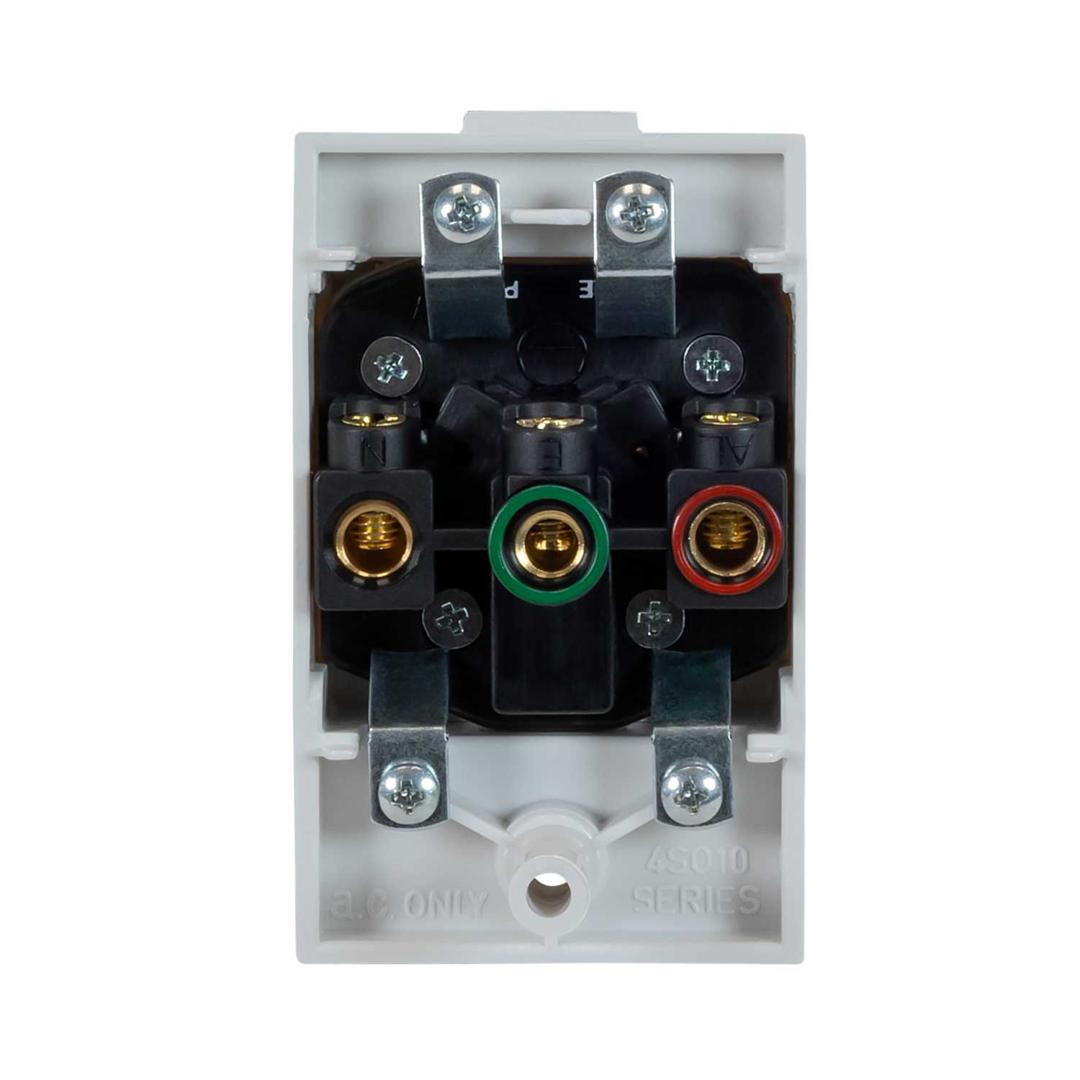

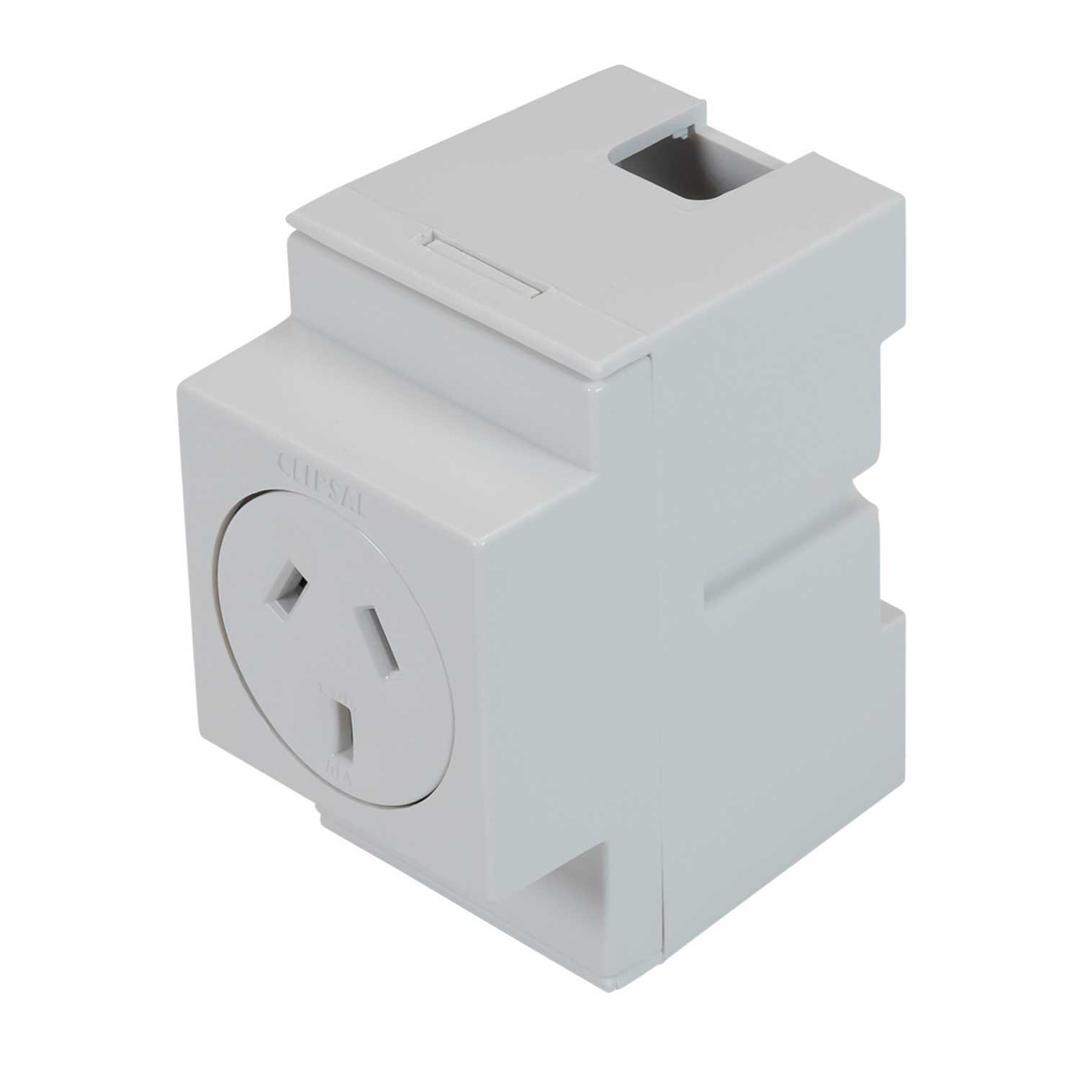

Clipsal 10A DIN Mounted DP Single Power Point MAX4 White
Part Number: 4PSO10D
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- 3 pin socket outlet 2.5 modules wide
- Typically used in switchboards for temporary power
- DIN rail mounted
- Double pole
- Colour
- White
- Current Rating
- 10A
- Depth
- 60mm
- Dimensions
- (H)78 mm x (W)45 mm x (D)60 mm
- Frequency
- 50/60 Hz
- Guarantee
- 1 Year
- Height
- 78mm
- Material
- Plastic
- Mounting
- DIN Rail
- Number Of Gangs
- 1
- Number Of Modules
- 2.5
- Number Of Poles
- 1 Pole
- Packaging Types
- Each
- Product Range
- MAX4
- Shape
- Rectangular
- Standards
- EN 60309-2 AS/NZS 3439.3
- Switched Unswitched
- Unswitched
- Type
- DIN Mounted Socket
- Unspsc V18
- 39121406
- Unspsc V24
- 39121406
- Voltage Rating
- 230V AC
- Weight
- 0.103kg
- Width
- 45mm
