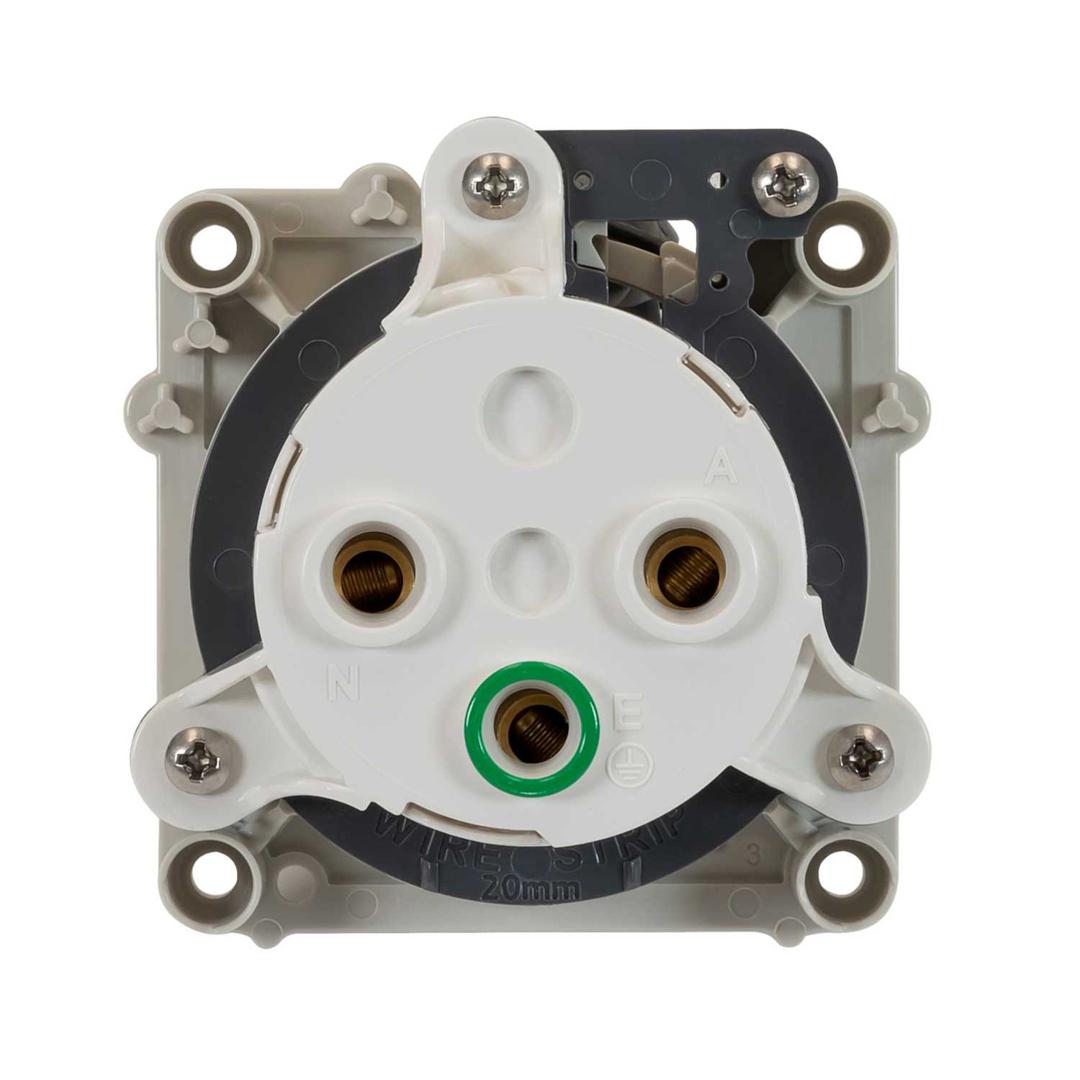

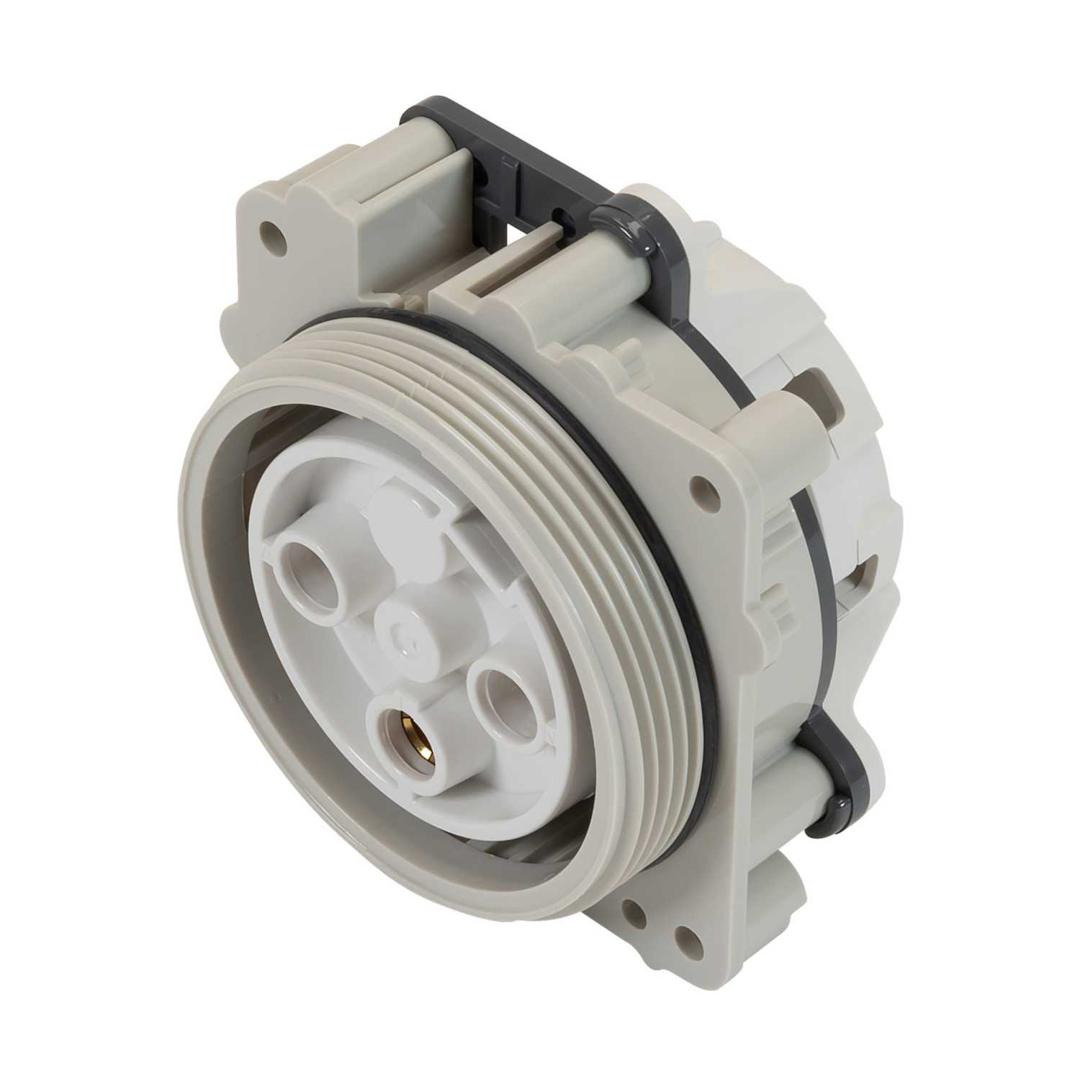

Clipsal 32A 3 Round Pins 250V AC Internal Socket Housing 56 Series Grey
Part Number: 56SO332G
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- Internal replacement unit, no cover, no backing enclosure
- Single phase, neutral and earth
- For use with 56 series
- For use with industrial IP66 rated plug tops
- Cable Capacity
- 16mm²
- Colour
- Grey
- Current Rating
- 32A
- Depth
- 60mm
- Dimensions
- (H)85 mm x (W)80 mm x (D)60 mm
- Frequency
- 50 Hz
- Guarantee
- 1 Year
- Height
- 85mm
- Material
- Polycarbonate
- Mounting
- Internal
- Number Of Poles
- 1P+N+E
- Packaging Types
- Each
- Product Range
- 56 Series
- Standards
- AS/NZS 3112
- Suitable For
- 56 Series Housing
- Type
- Industrial Socket
- Unspsc V18
- 39121406
- Unspsc V24
- 39121406
- Voltage Rating
- 250V AC
- Weight
- 0.175kg
- Width
- 80mm
