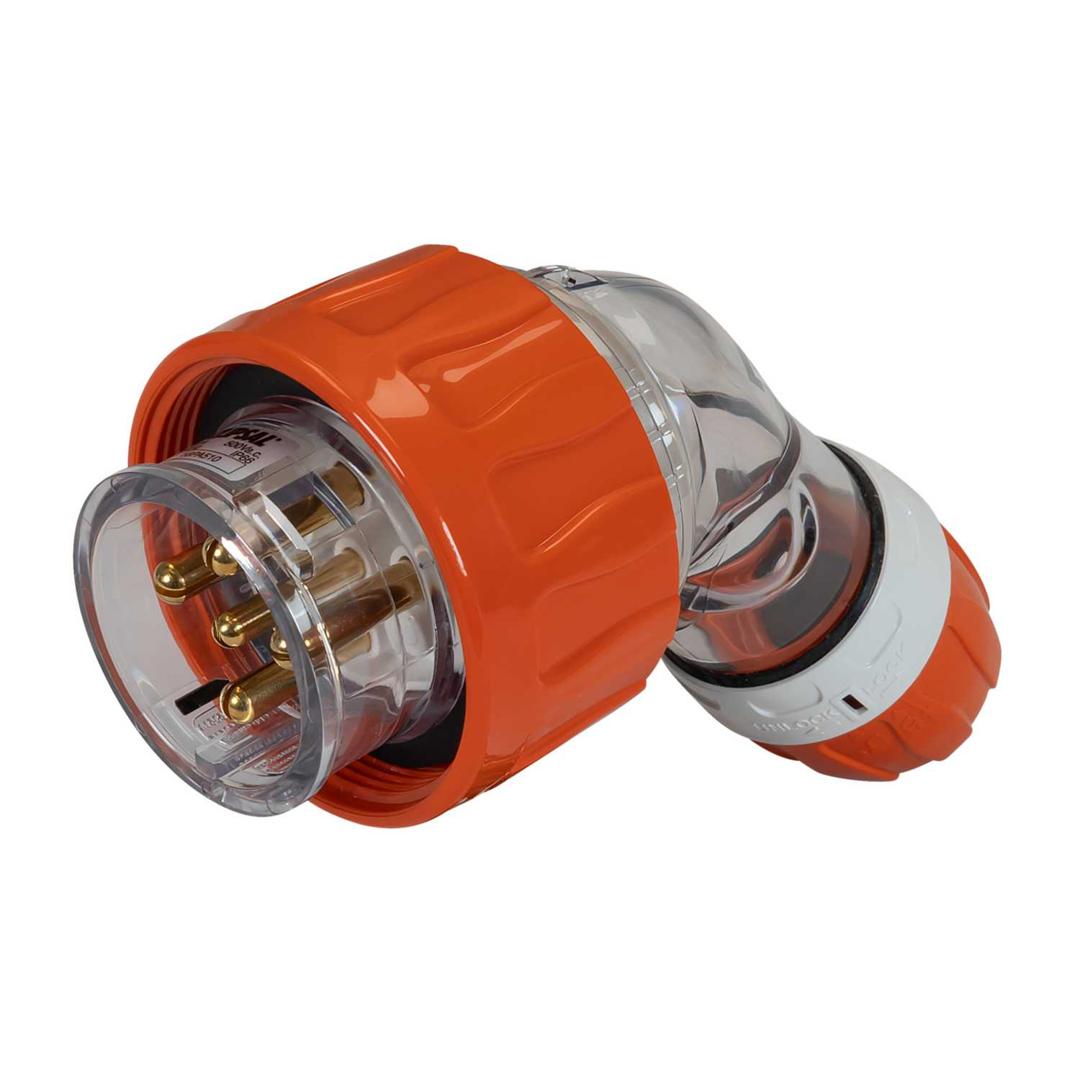

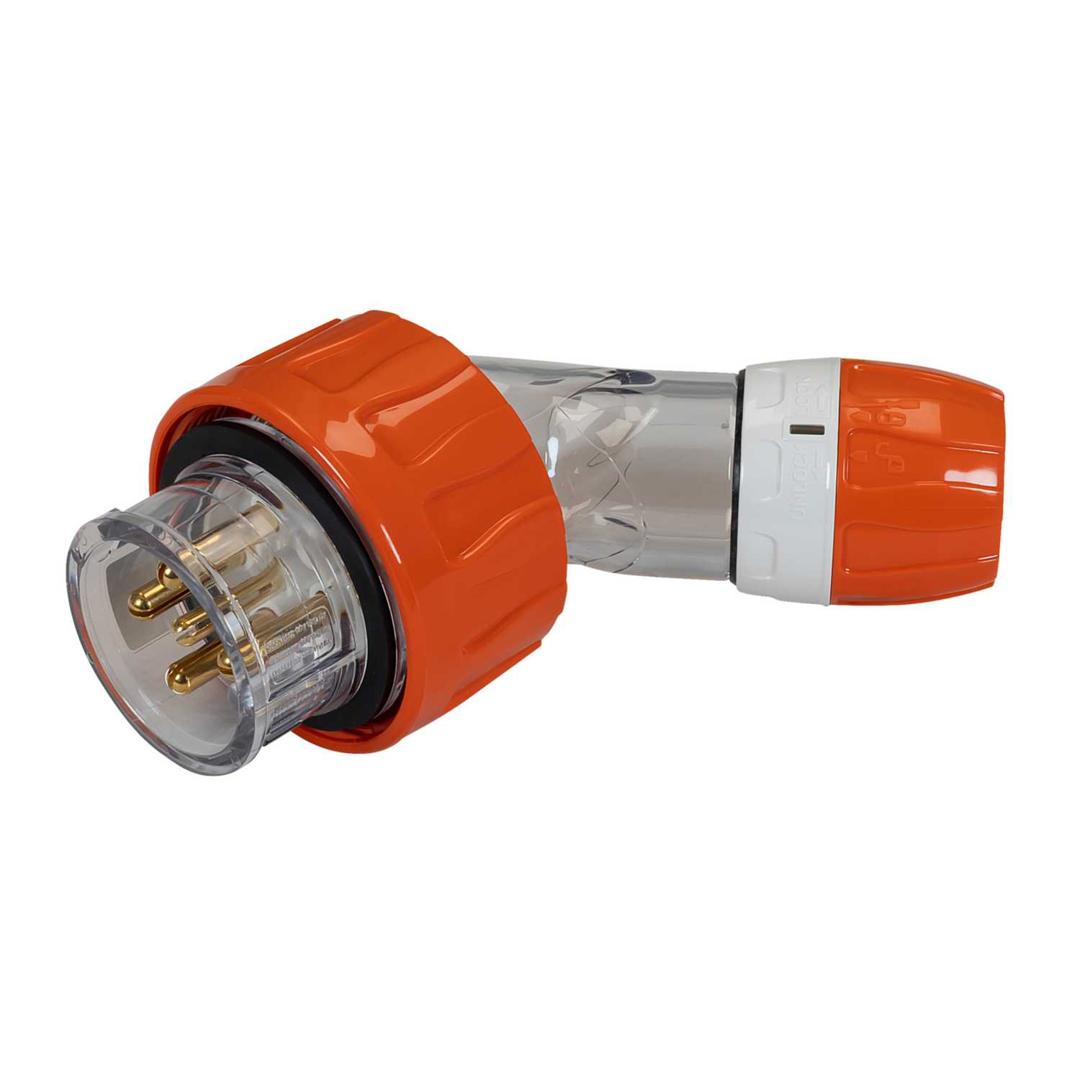

Clipsal 10A 5 Round Pins Angled 500V AC Male Plug 56 Series IP66 Electric Orange
Part Number: 56PA510-EO
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- Weatherproof angled trailing plug used for connecting a piece of electrical equipment to the main supply of electricity
- Three phase neutral and earth
- Maximum cable size 6.0mm²
- Angled for use in confined spaces, where straight plug may not be suitable
- User friendly design with extruded ribbed grips for easy operation with or without gloves
- For use with industrial IP66 rated socket outlets
- Cable Entry
- Cable Gland
- Colour
- Orange/Transparent
- Compliance
- IP66 Conforming to AS 60529
- Current Rating
- 10A
- Diameter
- 78mm
- Dimensions
- (L)158 mm x (Dia)78 mm
- Frequency
- 50 Hz
- Guarantee
- 1 Year
- Ip Rating
- IP66
- Length
- 158mm
- Material
- Polycarbonate
- Mounting
- Trailing
- Number Of Poles
- 3P+N+E
- Packaging Types
- Each
- Product Range
- 56 Series
- Standards
- AS/NZS 3112 AS/NZS 3123
- Suitable For
- Indoor or Outdoor Use
- Type
- Industrial Plug
- Unspsc V18
- 39121402
- Unspsc V24
- 39121402
- Voltage Rating
- 500V AC
- Weight
- 0.283kg
