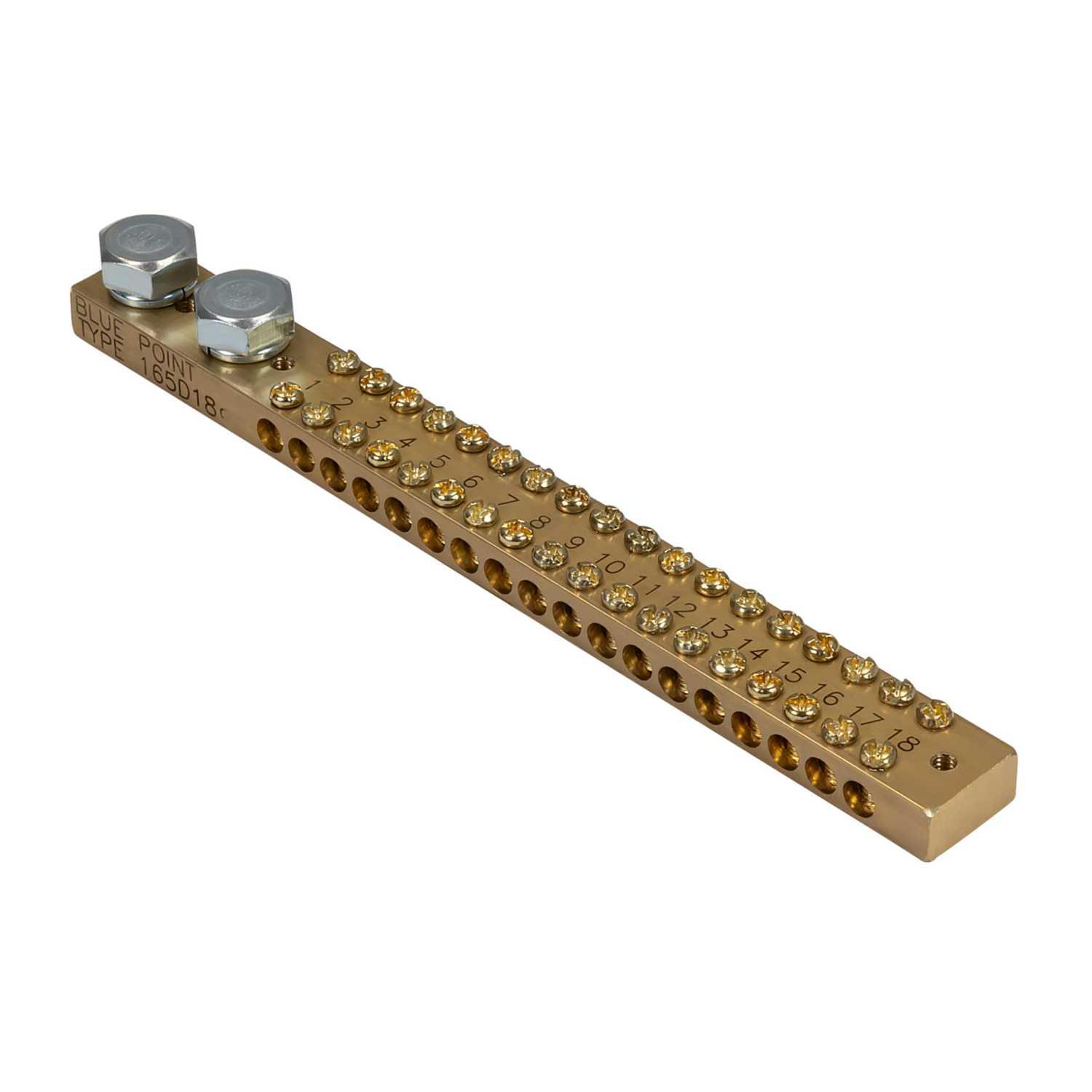

Clipsal 165A 18 Way Earth and Neutral Bar Max 4
Part Number: BP165D18
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- 18 pole, double screw earth or neutral block
- Nominal current rating 165A
- Bar size/cross-section: 9.5mm x 19mm
- Two 3/8” hexagon head bolts, for up to 165A cable lugs
- Tunnel terminals allow 16mm² conductor
- Colour
- Brass
- Current Rating
- 165A
- Dimensions
- (L)180 mm x (H)9.5 mm x (W)19 mm
- Guarantee
- 1 Year
- Height
- 9.5mm
- Length
- 180mm
- Material
- Brass
- Number Of Ways
- 18
- Packaging Types
- Each
- Product Range
- Blue Point
- Type
- Earth / Neutral Bar
- Unspsc V18
- 39121613
- Unspsc V24
- 39121613
- Weight
- 0.236kg
- Width
- 19mm
