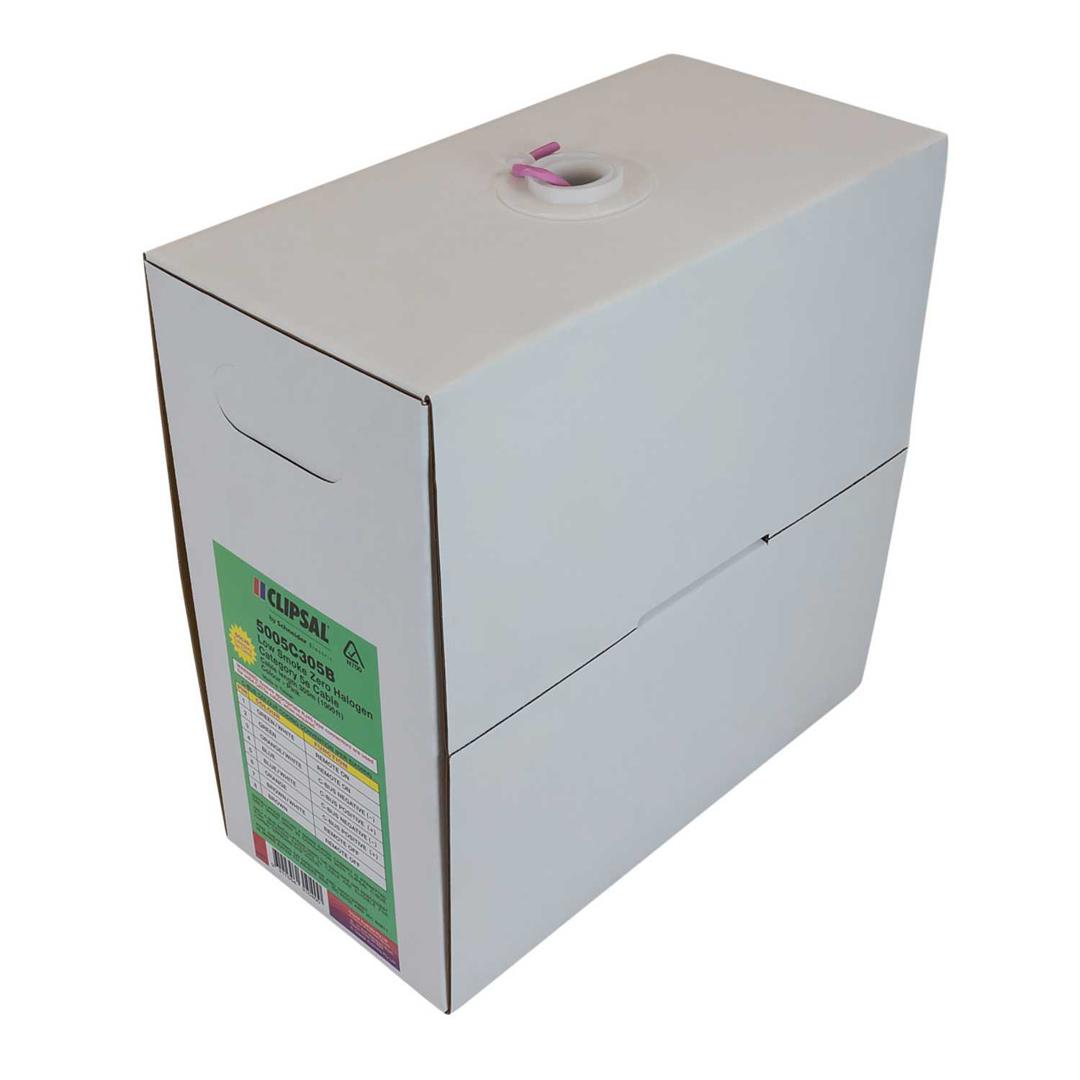

Clipsal CAT5e 4 Pair Solid Core U/UTP C-Bus Cable Pink (305m Box)
Part Number: 5005C305B
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.

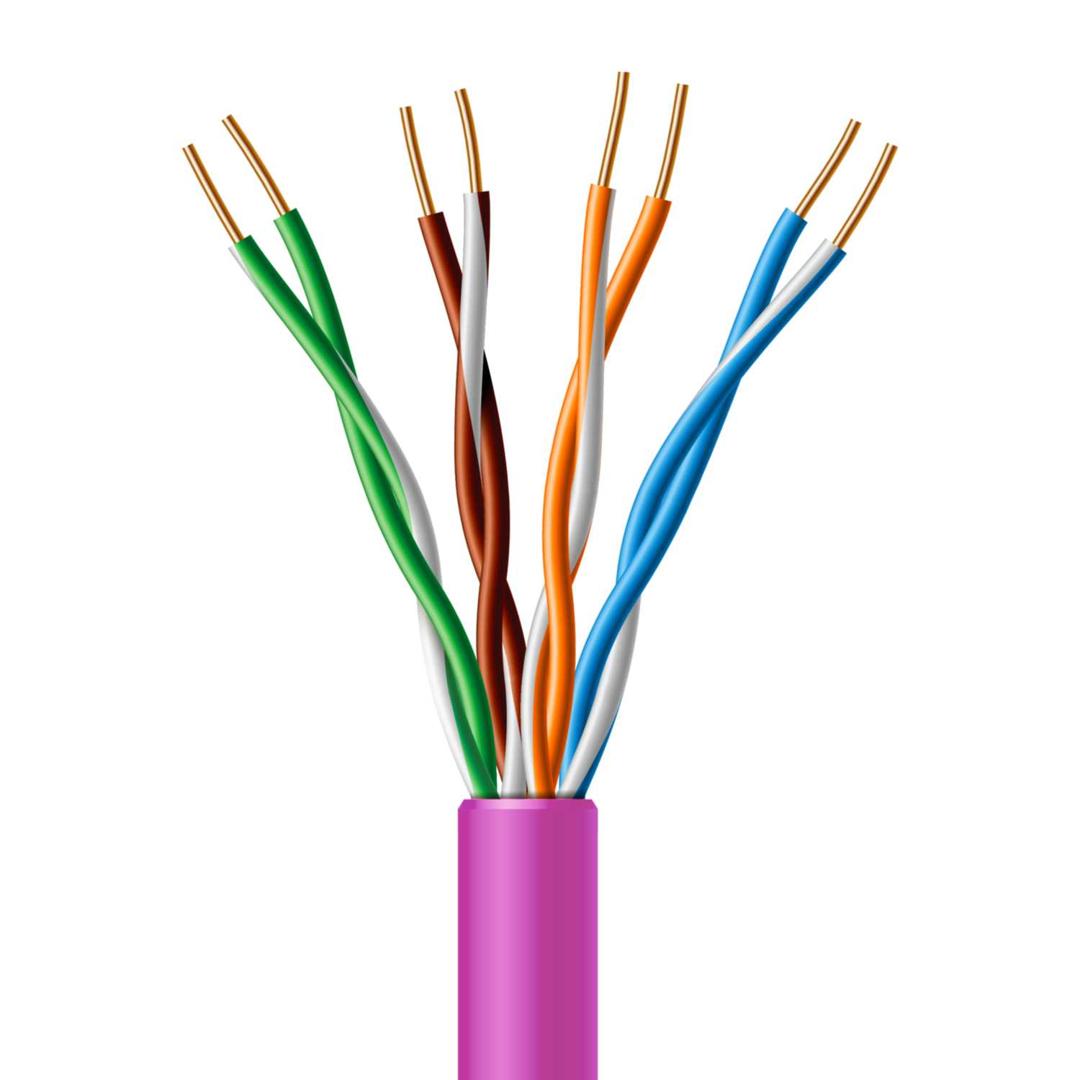

- Solid 24 AWG gauge copper
- 4 unshielded twisted pair
- Cable has a mains rated pink outer sheath making it easy to distinguish from other voice and data cables in the installation, preventing miswiring between systems
- Polyester multi yarn rip cord
- Low smoke, zero halogen
- 110 N pulling force
- Conforms and is compliant to the enhanced performance Category 5 specification
- Colour
- Pink
- Dimensions
- (L)305 m
- External Diameter
- 5mm
- Guarantee
- 1 Year
- Length
- 305m
- Material
- Polyolefin, Copper
- Number Of Cores
- 8
- Number Of Pairs
- 4
- Online Search Priority
- 1
- Operating Temperature
- 60°C
- Packaging Types
- Box
- Product Range
- C-Bus Cable
- Sheath
- Polyolefin
- Shielded Unshielded
- Unshielded
- Standards
- ANSI/TIA-568-C.2:2009 ISO/IEC 11801:ed. 2.2 IEC 61156-5:ed. 2
- Unspsc V18
- 26121609
- Unspsc V24
- 26121609
- Weight
- 0.031kg
